c) Connect the 100 GbE cables into the QSFP28 ports.
d) Connect the power cables to the PSUs.
Note: The connections mentioned in (b) and (c) are only necessary if the user intends to have
both connection types.
11. Power On the enclosure and verify it is functioning properly.
a) The enclosure will power itself on about 20 seconds after it is connected to power.
b) Once the enclosure is physically powered-on, from a laptop, log into the Web UI.
c) In the Web UI, click Dashboard.
The Dashboard Control Panel page will appear.

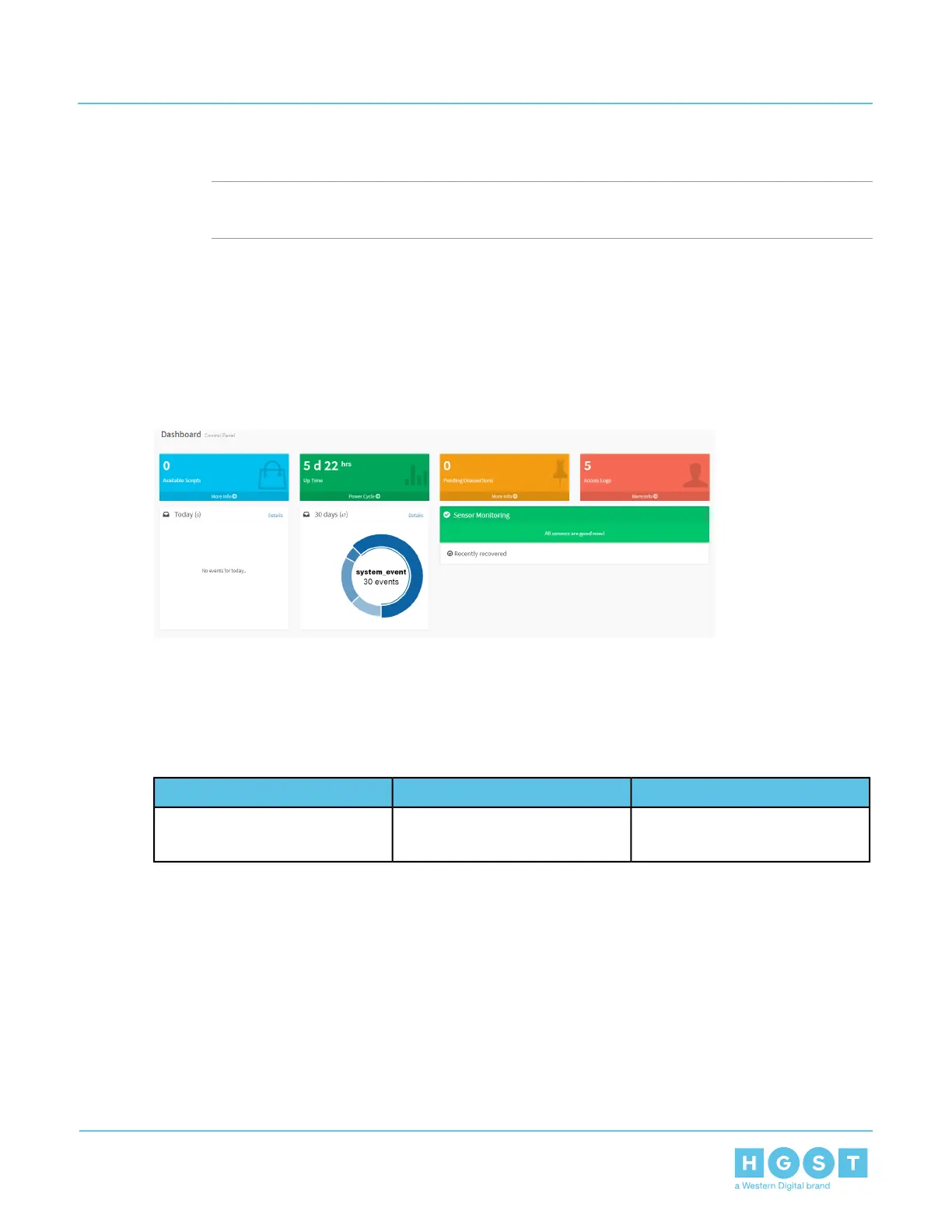

Figure 126: Dashboard Control Panel
d) Verify that the reported failure no longer appears in the Dashboard Control Panel.
3.11 Chassis Replacement
Table 39: Replacement Procedure Info
Time Required# of People RequiredRequired Tools
45 minutes1 #0 screwdriver
#1 Philips Screwdriver
1. Power Off the enclosure.
a) Connect to the first server using the assigned IP Address.
b) In the Web UI, click Power Control.
88
3 Part Replacement
User Guide 3.11 Chassis Replacement
