Chapter
3
3 Part Replacement
3.1 Drive Assembly Replacement
Table 29: Replacement Procedure Info
Time Required# of People RequiredRequired Tools
3 minutes1None
1. Locate the failed drive by identifying the illuminated amber LED on the drive carrier.
2. Uninstall the drive assembly.
a) Release the drive assembly by pressing the button on the drive carrier and lower the carrier release
until it stops.

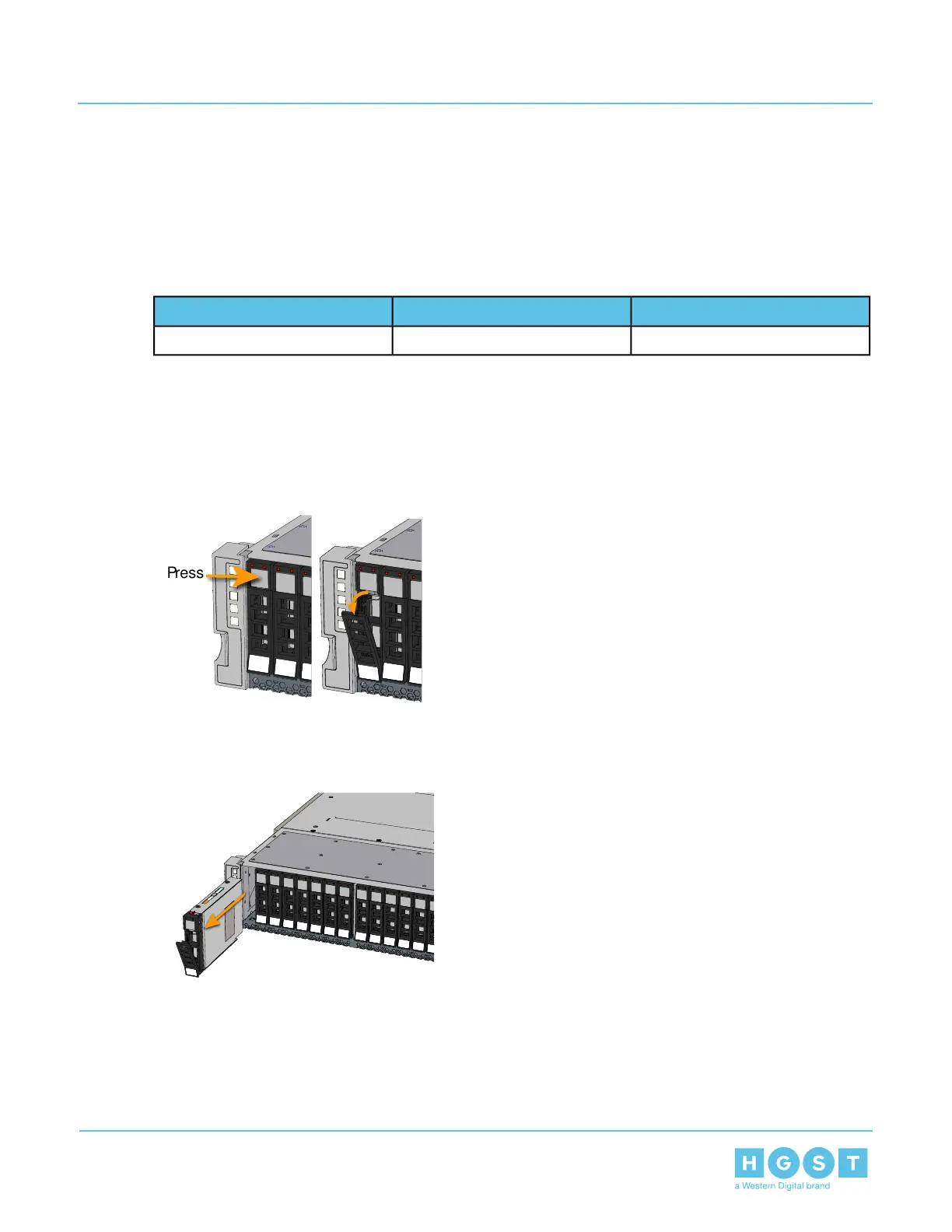

Figure 28: Drive Carrier Release
b) Pull the drive assembly out of the drive slot using the drive carrier release.
Figure 29: Uninstall Drive Assembly
3. Install the drive assembly.
a) Open the drive carrier release by pressing the button on the drive carrier.
36
3 Part Replacement
User Guide 3.1 Drive Assembly Replacement
