2 Component Overviews
2.1 Chassis Description

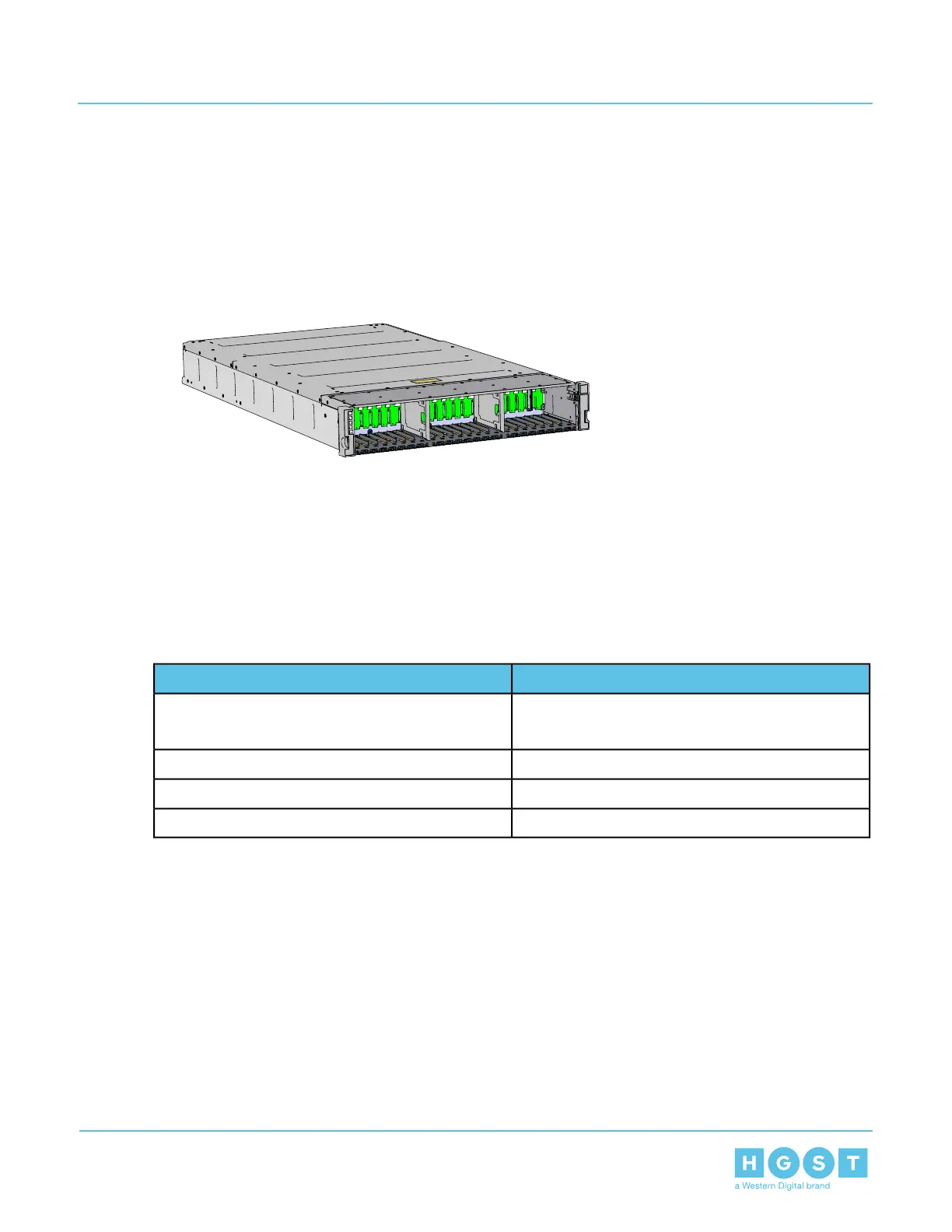

Figure 11: Chassis Description
The chassis is the primary housing that contains and connects all of the system components that comprise
the Ultrastar Serv24-HA. The chassis is contains the drive bay, located at the front, which houses all of the
system data storage drives. The rear of the chassis contains PSU bays and two Compute Canisters. The
major system components such as the fan modules, CPUs, memory, and M.2 Boot Drives are all contained
within each of the two Compute Canisters.
2.1.1 Chassis Specifications
Table 12: Chassis Specification Summary
ValueSpecification
W: 446.4 mm x L: 825 mm x H: 87.6 mm /
W: 17.58in. x L: 32.5in. x H: 3.4in.
Dimensions
1EX1047Part Number
NoHot Swappable?
14.83 kg / 32.7 lbsWeight
