HGST Ultrastar Serv24-HA User Manual

2.8 Rails Description

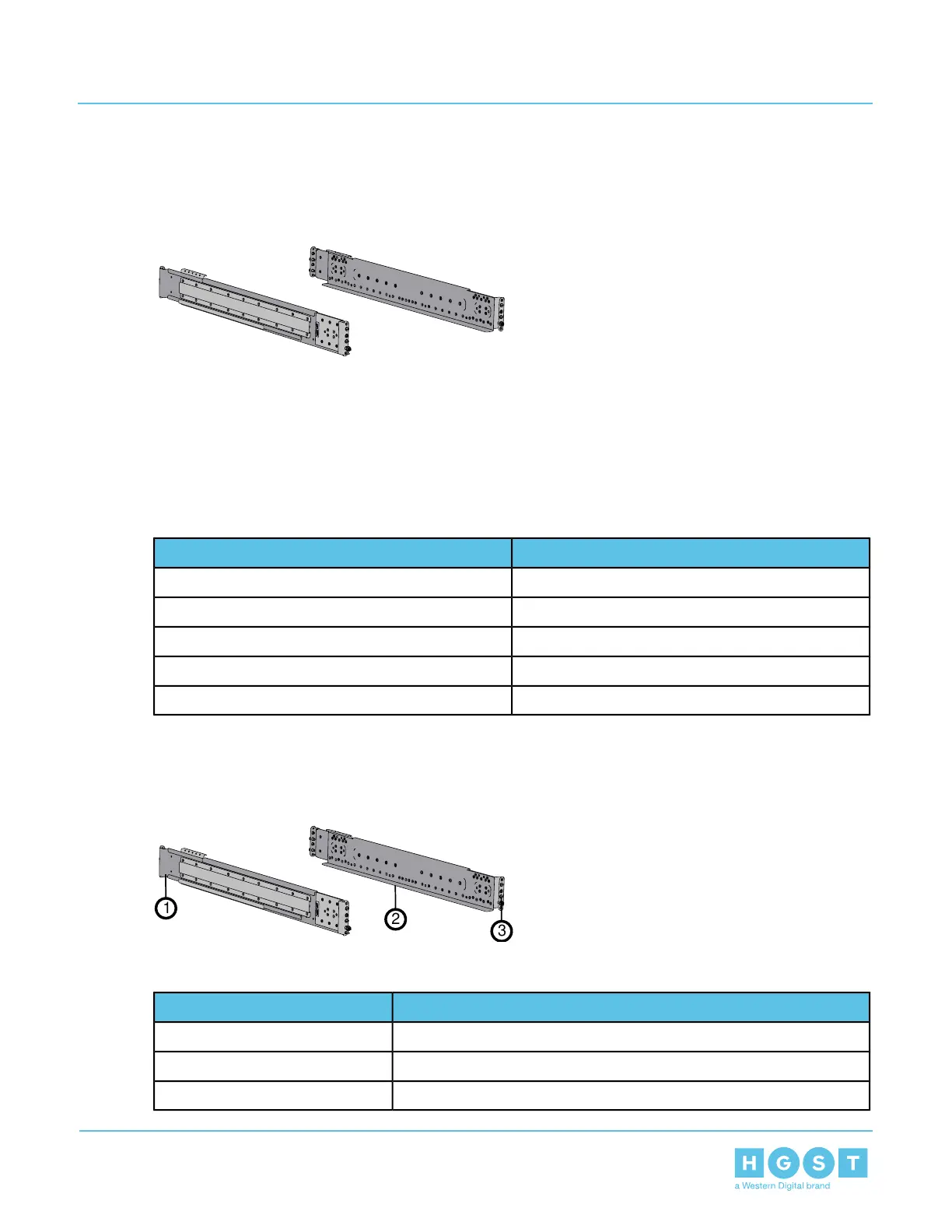

Figure 25: Rails Description
The Ultrastar Serv24-HA is attached to the rack using two rack mounted rails that allow for the computer
canisters to be pulled out of the rear for servicing. The rails contain a rack ear locking mechanism on either
side to secure the enclosure in the rack during basic servicing procedures. The rack ear locks are easily
unlatched to provide the option to pull the enclosure out of the rack to service the contents of the chassis.
2.8.1 Rails Specification
Table 26: Rails Specification Summary
ValueSpecification
670 mm / 26.37in.Length
1EX1048Part Number
NoHot Swappable?
670 mm - 870 mm / 26.37in. - 34.25in.Rack Mounting Range
5.4 kg / 12 lbsWeight
2.8.2 Rails Layout
Figure 26: Rails Layout
1
2
3
Table 27: Rails Layout
FeaturesNumber
Rear Rack Mounting Bracket1
Enclosure Shelf2
Front Rack Mounting Bracket3
34
2 Component Overviews
User Guide 2.8 Rails Description
