a) Detach the cable retention clip from the power cord.

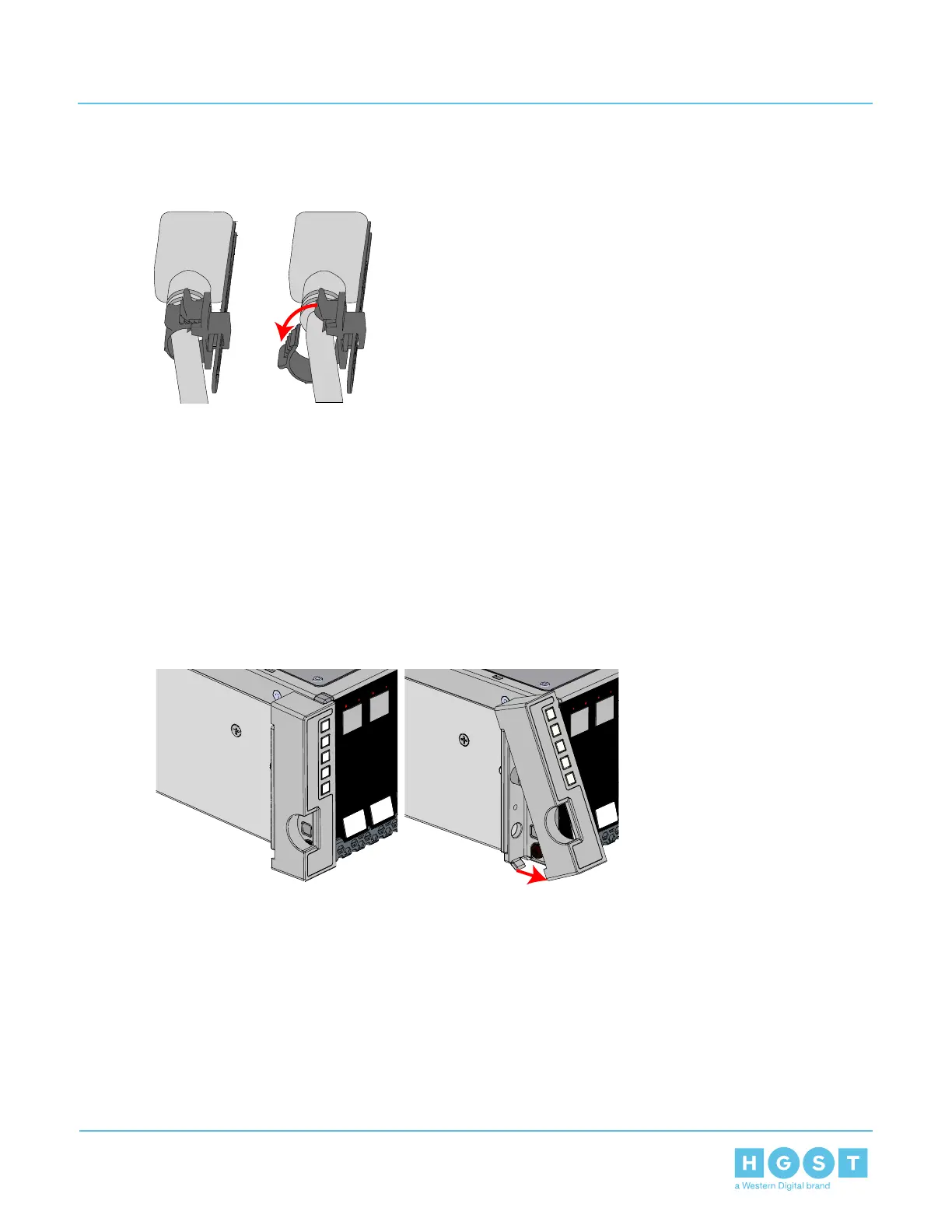

Figure 108: Cable Retention Mechanism
b) Remove the power cord by pulling firmly, but do not jerk it out of the unit.
2. Repeat the previous step to disconnect the power cord out of the remaining PSU.
3. Disconnect the remaining cables from the rear of the enclosure.
4. Remove the Rack Ears from the enclosure.
a) Locate finger hold on the lower half of the rack ear.
b) Insert an index finger into the finger hold and carefully pull out until the bottom of the rack ear snaps
free of the enclosure.
Figure 109: Unclipping the Rack Ear
79
3 Part Replacement
User Guide 3.10 Rails Replacement
