a) Release the drive blank assembly by pressing the button on the drive blank carrier and lower the carrier
release until it stops.

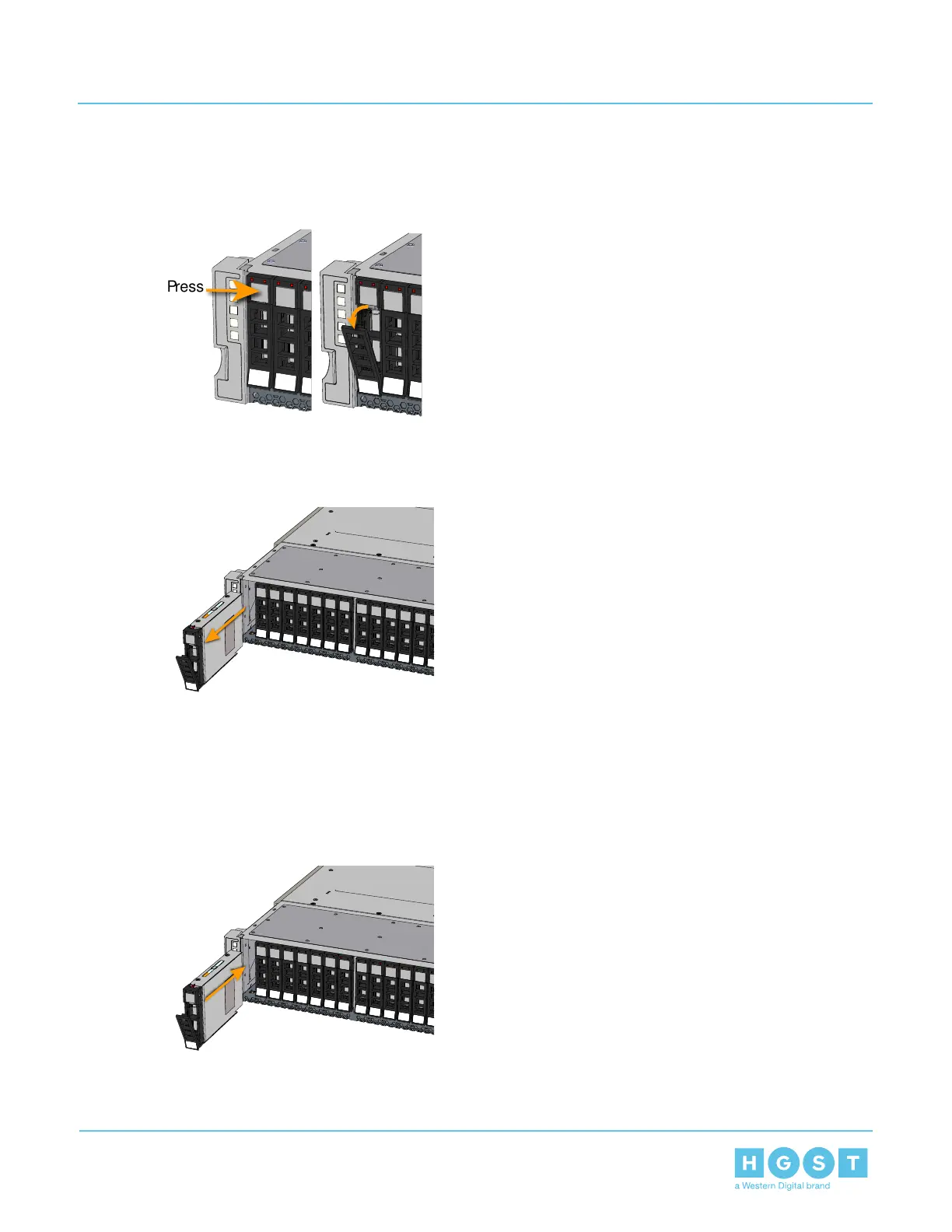

Figure 32: Drive Blank Carrier Release
b) Pull the drive blank assembly out of the drive slot.
Figure 33: Uninstall Drive Blank Assembly
3. Install the drive blank assembly.
a) Open the drive blank carrier release by pressing the button on the drive blank carrier.
b) With the drive blank carrier button on top, slide the drive into the open drive slot until the drive release
engages.
Figure 34: Drive Blank Assembly Installation
c) Seat the drive blank assembly by pressing the lever into the drive blank carrier.
38
3 Part Replacement
User Guide 3.2 Drive Blank Assembly Replacement
