a) Unlock the PSU by pressing the PSU release latch.

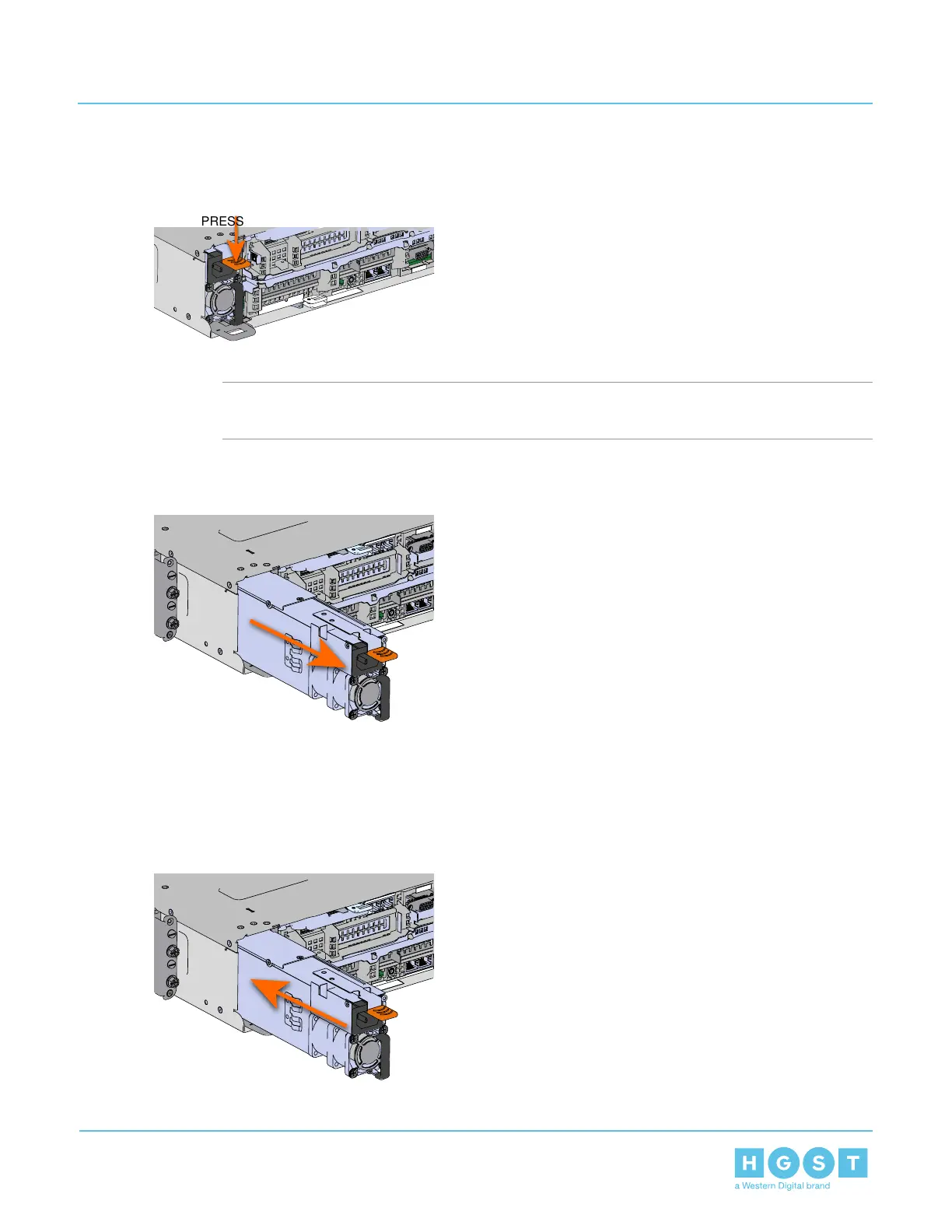

Figure 95: PSU Release Latch
b) Remove the PSU by pulling on the PSU handle until it is clear of the PSU bay.
Note: Do not pull on the gray PIB Canister tab. The PIB Canister should not be removed from
the enclosure unless it has been identified as a failed part.
Figure 96: Removing the PSU
4. Install the PSU into the chassis.
a) Align the PSU in the orientation shown in the following image.
b) Slide the PSU into the slot until it seats properly into the chassis.
Figure 97: Installing the PSU
c) Plug the power cable into the receptacle at the back of the PSU.
73
3 Part Replacement
User Guide 3.8 PSU Replacement
