Note: Do not pull on the gray PIB Canister tab. The PIB Canister should not be removed from
the enclosure unless it has been identified as a failed part.

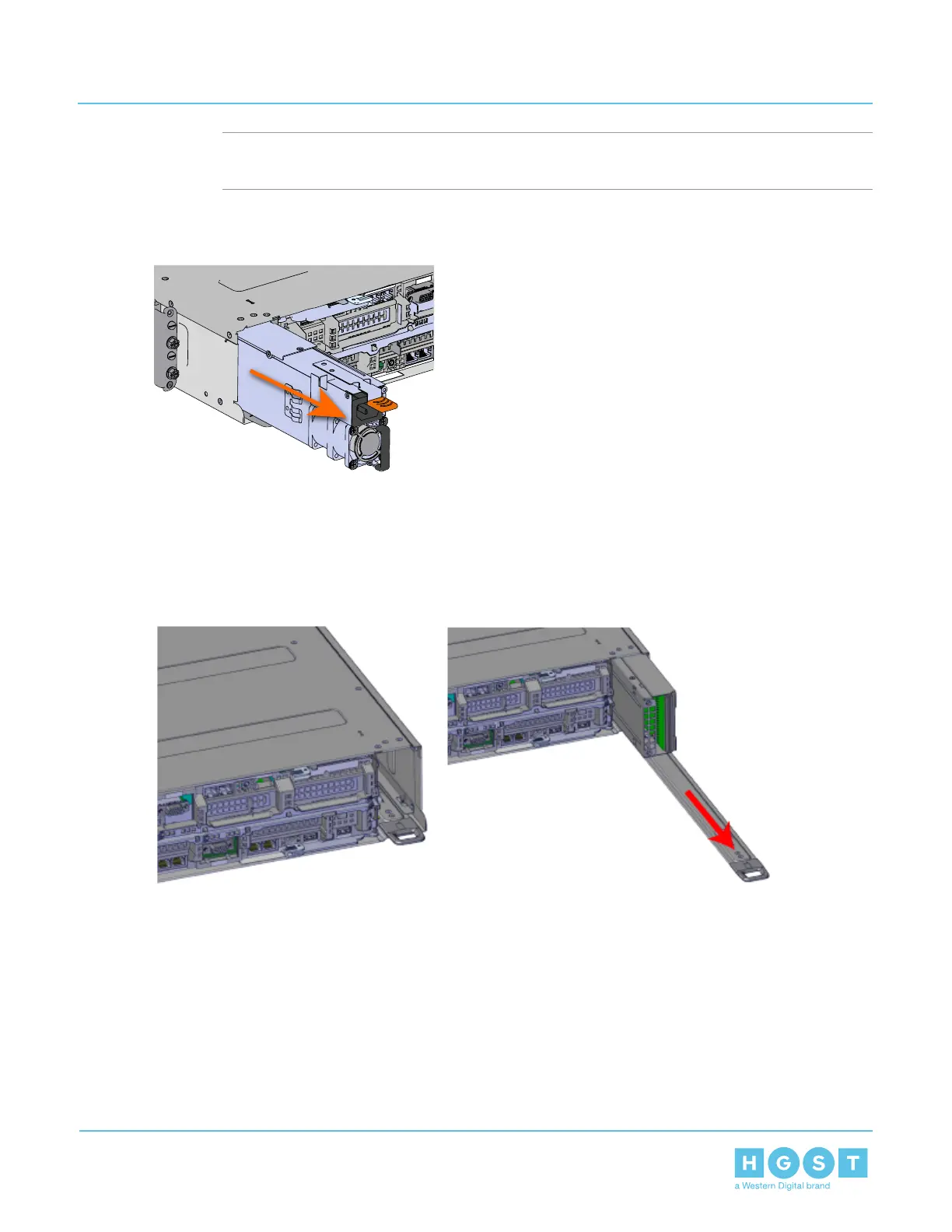

Figure 102: Removing the PSU
4. Uninstall the PIB Canister.
a) Locate the gray tab just below the location of the uninstalled PSU.
b) Grasp the tab firmly and carefully pull the PIB Canister until the card edge comes out of the midplane.
Figure 103: Removing the PIB Canister
c) Pull the PIB Canister clear of the enclosure.
5. Install the PIB Canister.
a) Line up the PIB Canister with the chassis PIB Canister guide.
76
3 Part Replacement
User Guide 3.9 PIB Canister Replacement
