c) Rotate the rack ear out and remove it completely from the enclosure.

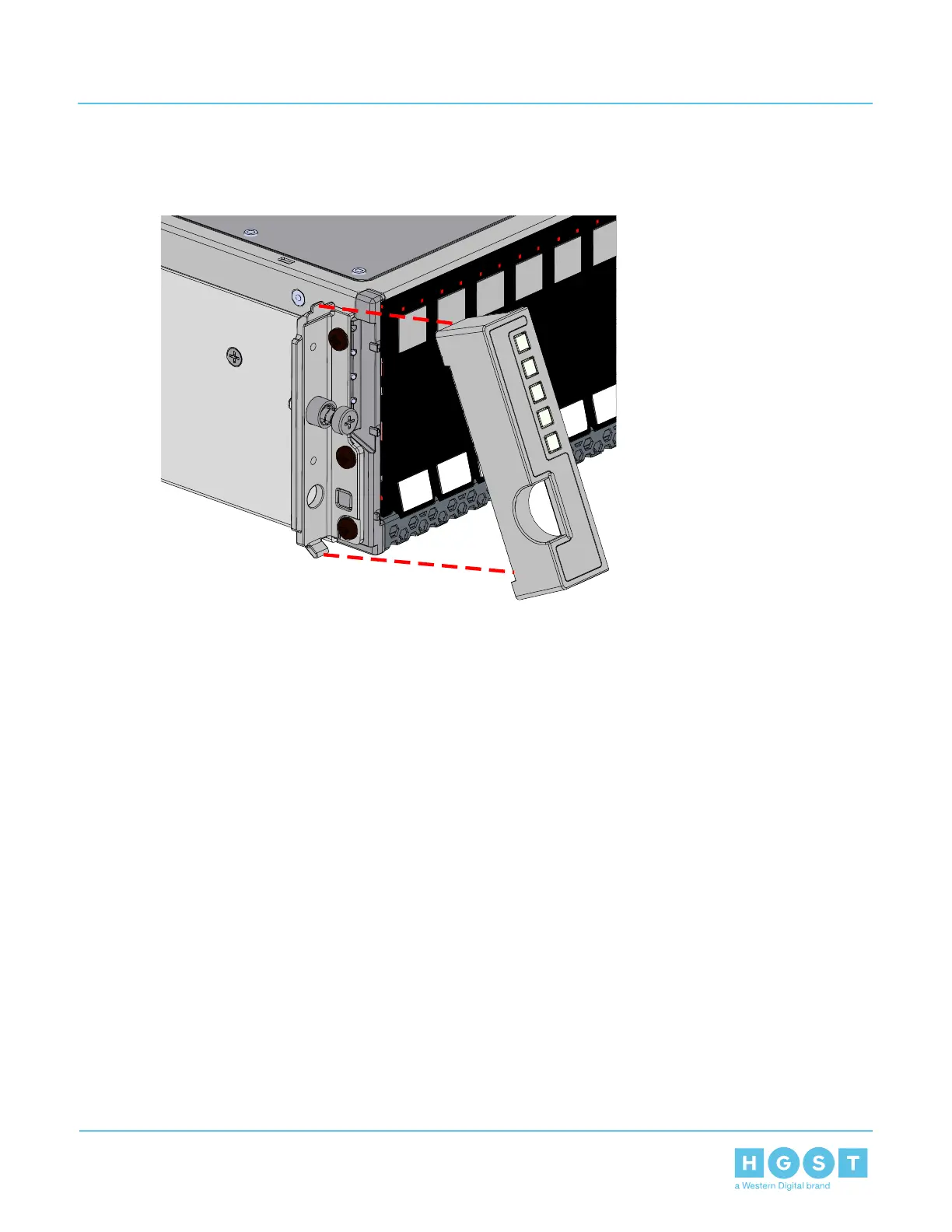

Figure 135: Removing the Rack Ear
d) Repeat the previous procedure to remove the remaining rack ear.
6. Remove the enclosure from the rack.
a) Locate the shipping screws that are installed below the thumbscrews on the front of the enclosure.
93
3 Part Replacement
User Guide 3.11 Chassis Replacement
