Higen FDA7000 Series - Connection of AC380 V Series

2. Wiring and connection
2-4

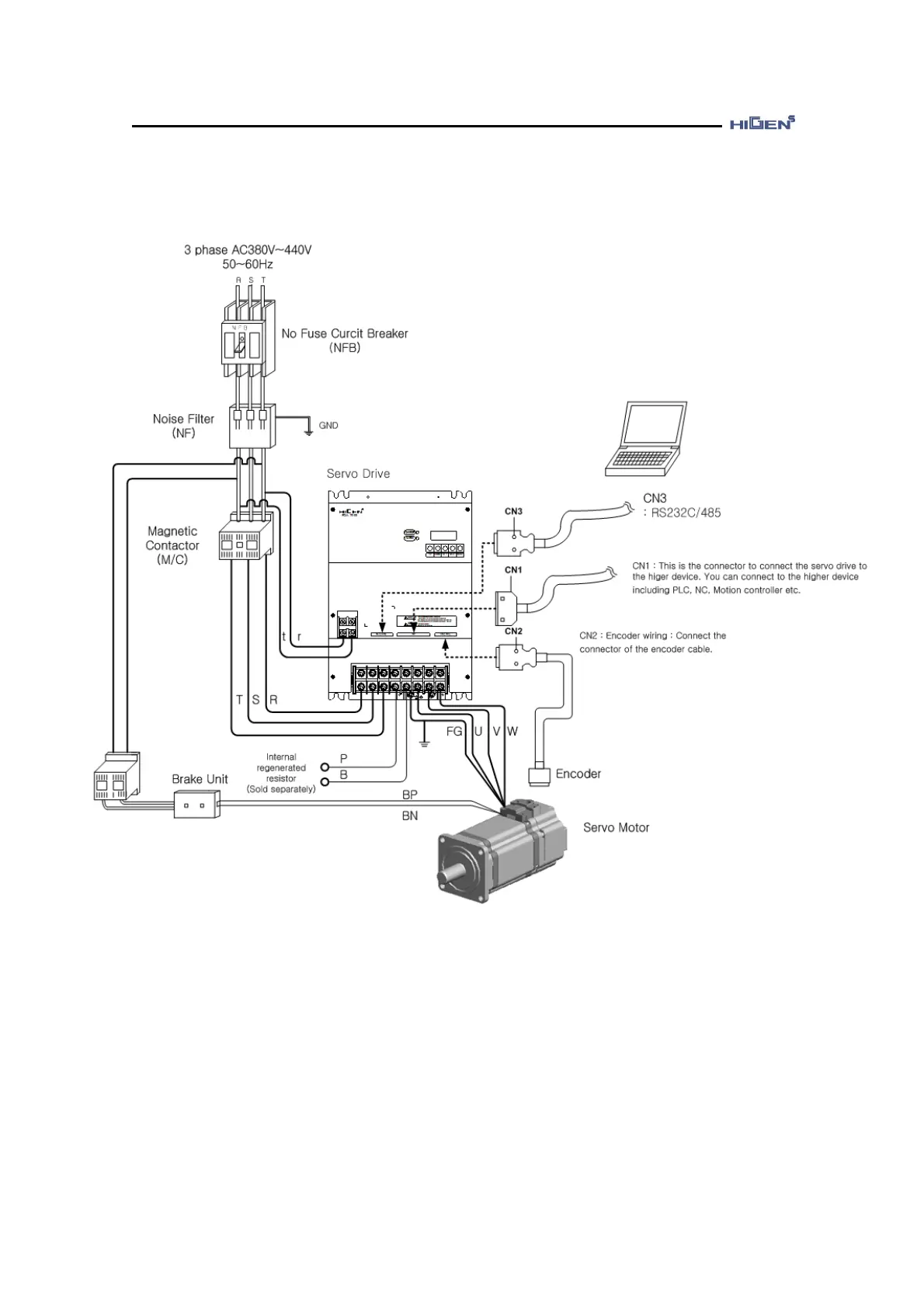

2.1.2. Connection of AC380V Series
 Use within the power specification allowed by the servo. If the power voltage is higher
than the allowable value, be sure to use a power transformer.
FDA7000-H0 : AC 380V, FDA7000-H1 : AC 440V
 Use the brake power supply independently. When used with input / output contact input
power, it causes malfunction of contact operation.
 To prevent electric shock and suppress noise, ground the motor and drive terminals
with the 3rd or more types of ground at the shortest distance.
