User Manual of PanoVu Series Network Camera

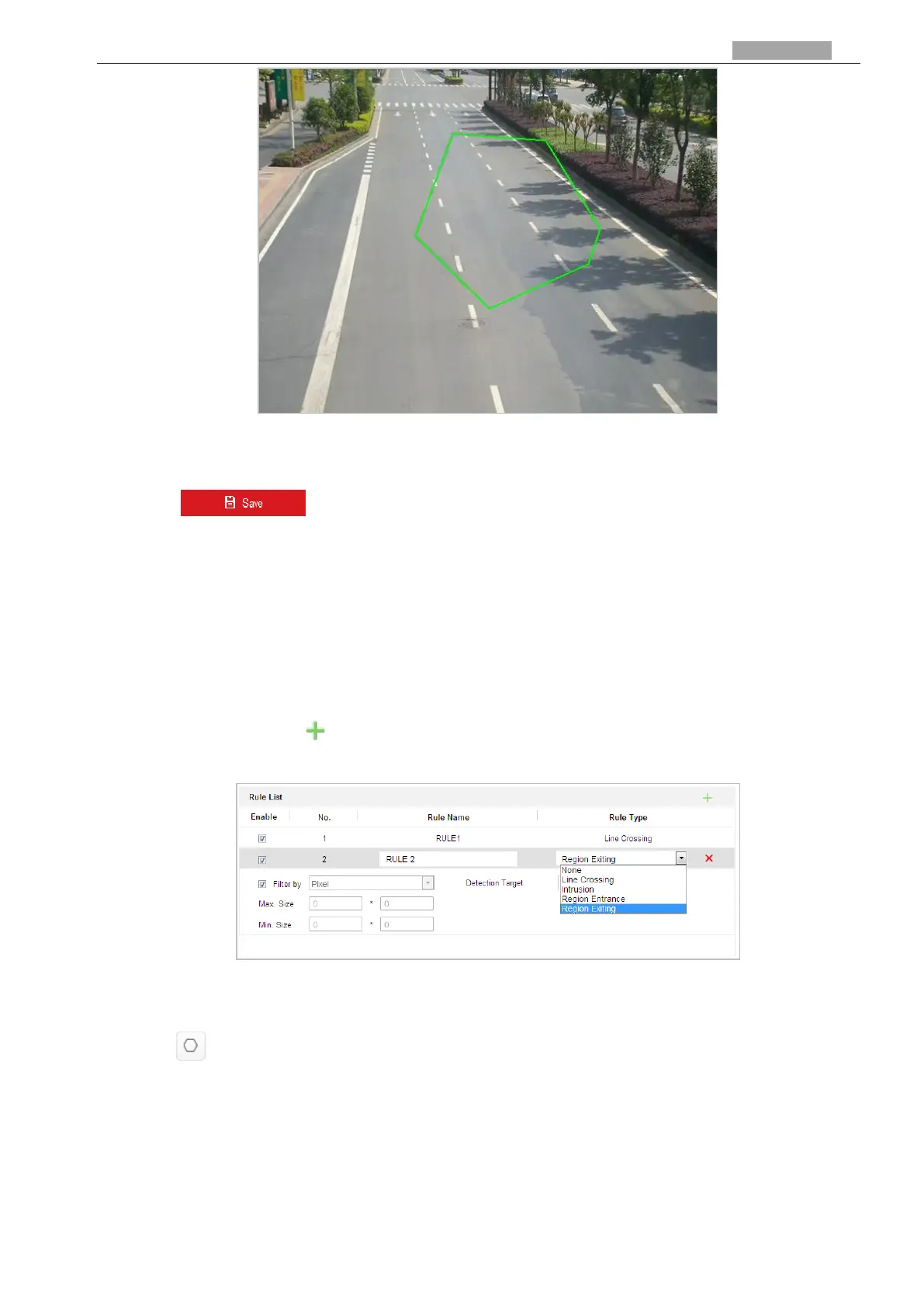

Figure 6-37 Draw Area
4. Enable rules: Check the Enable checkbox of each rule in the rule list to enable the rule.
5. Click to save the settings.
Region Exiting
Purpose:
This function can be used for detecting people, vehicles and objects exiting the pre-defined region.
The alarm will be triggered if the rule is broken.
Steps:
1. Create new rule: Click to add a new rule.
2. Select rule type: Click the dropdown list and select Region Exiting as the rule type.
Figure 6-38 Select Rule Type
3. Configure the rule area:
Click on the tool bar of the live view panel. Click the mouse on the live view panel. Right
click the mouse to finish drawing.
