HIKVISION DS-K1T803MF User Manual

Fingerprint Access Control Terminal
100

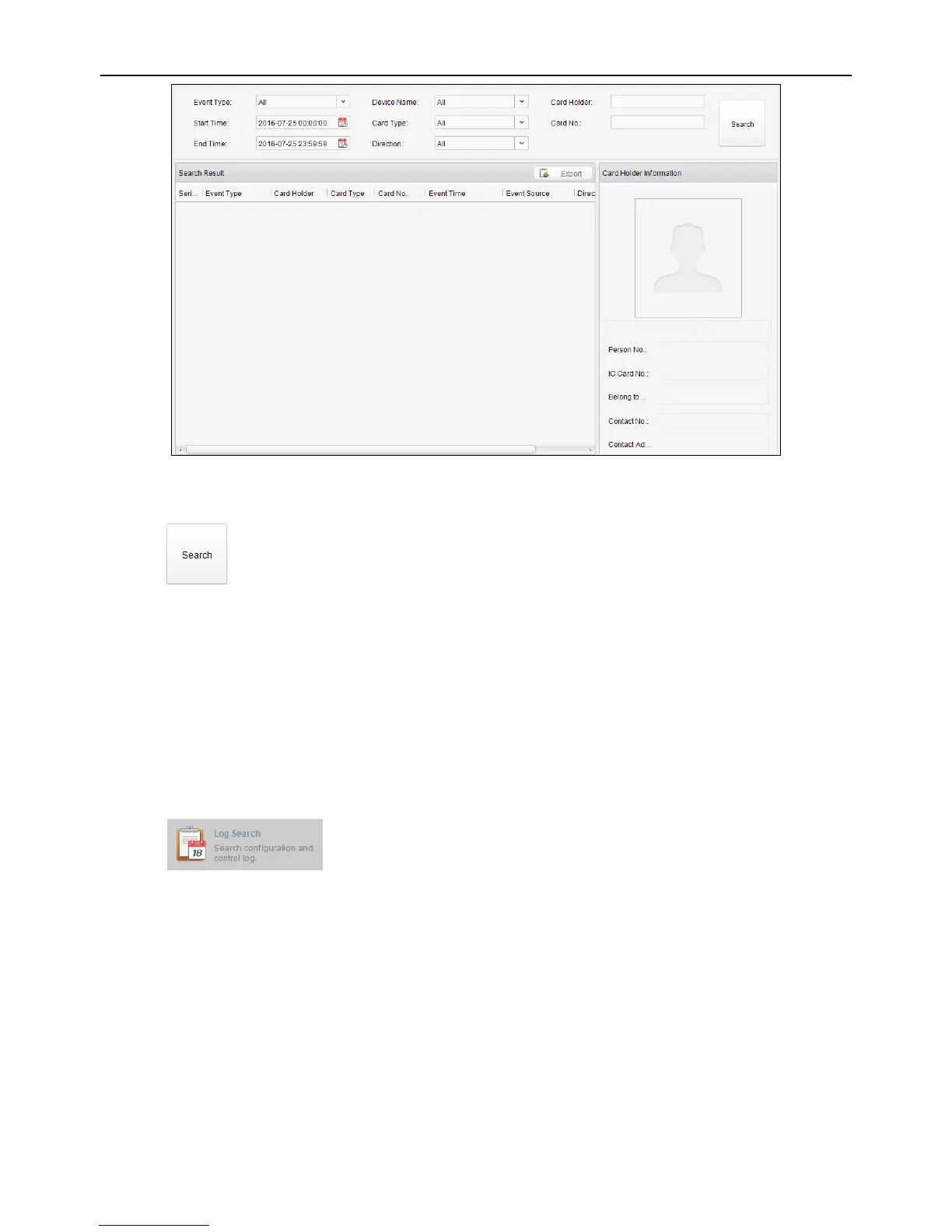

Steps:
1. Enter the event search page.
2. Enter the search criteria (event type/ person name/ card No/ start &end time).
3. Click to get the search results.
4. View the event information in the event list.
5. Click on an event to view the information of the card holder on the Person Information panel on the
left side of the page.
System Maintenance 5.6
5.6.1 Log Management
Purpose:
The log files of the Access Control System and the devices that connected to the Access Control System
can be searched for checking.
Click the icon on the control panel to open the Log Search page.

HIKVISION DS-K1T803MF Specifications

General

Type	Basic access control reader
Product color	Black
Cards capacity	3000 cards
Fingerprint reader	Yes
Authentication type	Access chip/card, Biometric, Password
Fingerprint sensor type	Optical
False Rejection Rate (FRR)	0.01 %
False Acceptance Rate (FAR)	0.001 %
Access chip/card reader type	Contactless
Contactless working distance	50 mm
International Protection (IP) code	IP42
PC connected	-
Ethernet LAN data rates	10, 100 Mbit/s
Display type	TFT-LCD
Display diagonal	2.4 \
Maximum resolution	320 x 240 pixels
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Front camera	No
DC current (max)	1 A

Weight and Dimensions

Depth	37 mm
Width	76.5 mm
Height	205 mm
