Fingerprint Access Control Terminal
8
Login 4.2
Steps:
1. For the first time login, hold the OK key for 3s to enter the main interface. You can manage the
user, the access control, the attendance, the communication, the system, etc.

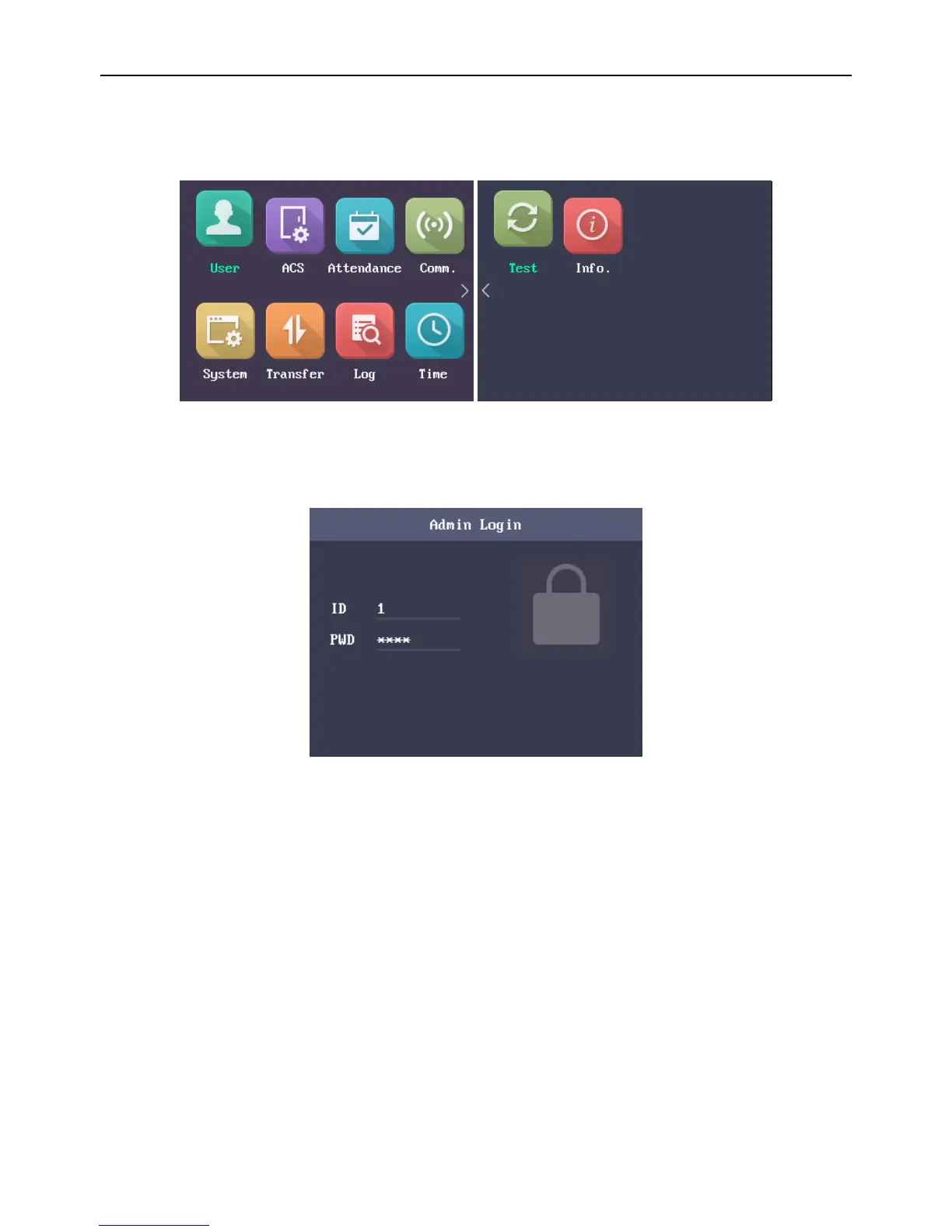

Main Interface Figure 4. 11
If you have configured the admin in the User interface:
1) Long-press the OK key to enter the Admin Login interface.
2) Enter the admin ID No. and password, scan the fingerprint or swipe the card to enter the
main interface.
Admin Login Interface Figure 4. 12
Parameters Configuration 4.3
4.3.1 Communication Settings
Purpose:
You can set the network parameters, the Wiegand parameters and the Wi-Fi.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-K1T803MF and is the answer not in the manual?

HIKVISION DS-K1T803MF Specifications

General IconGeneral
TypeBasic access control reader
Product colorBlack
Cards capacity3000 cards
Fingerprint readerYes
Authentication typeAccess chip/card, Biometric, Password
Fingerprint sensor typeOptical
False Rejection Rate (FRR)0.01 %
False Acceptance Rate (FAR)0.001 %
Access chip/card reader typeContactless
Contactless working distance50 mm
International Protection (IP) codeIP42
PC connected-
Ethernet LAN data rates10, 100 Mbit/s
Display typeTFT-LCD
Display diagonal2.4 \
Maximum resolution320 x 240 pixels
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Front cameraNo
DC current (max)1 A
Weight and Dimensions IconWeight and Dimensions
Depth37 mm
Width76.5 mm
Height205 mm
