Fingerprint Access Control Terminal
11

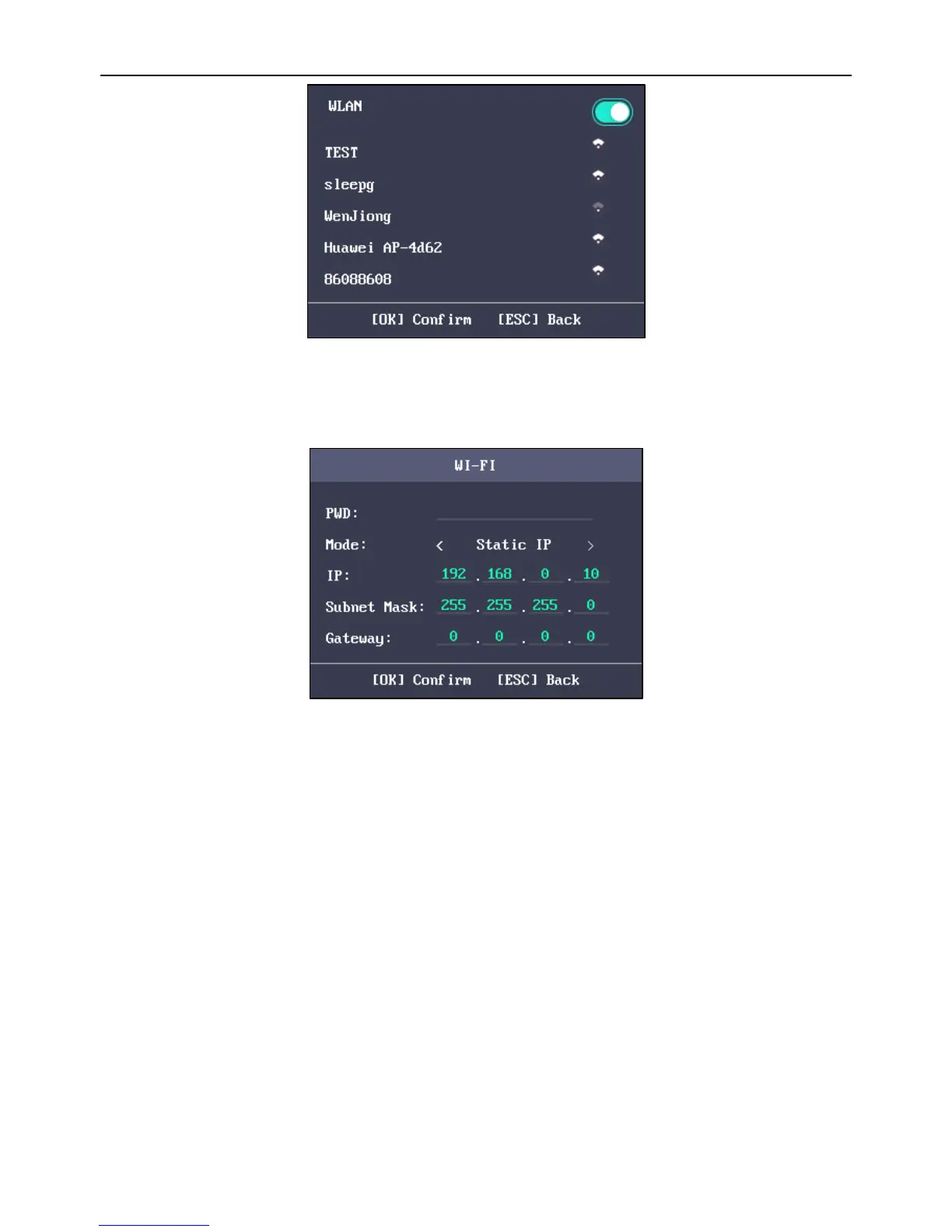

Wi-Fi Selection Figure 4. 18
3. Select a network and press the OK key to enter the Wi-Fi Setting interface.
4. Input the Wi-Fi password, and configure the IP mode the IP address, the subnet mask and the
gateway.
Note: The password supports numbers, uppercase letters, lowercase letters and symbols.
Wi-Fi Setting Interface Figure 4. 19
5. Press the ESC key and select Yes to save the parameters and exit the interface.
4.3.2 System Settings
Purpose:
You are able to set the system parameters, manage the data, restore default parameters and upgrade
the device.
4.3.2.1 Setting System Parameters
Purpose:
Set the system parameters, including the device time format, the keypad audio, the voice prompt, the
voice volume, the sleeping, the attendance repeating time interval, the attendance record over
threshold prompt, the secure door control panel and the record delete.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-K1T803MF and is the answer not in the manual?

HIKVISION DS-K1T803MF Specifications

General IconGeneral
TypeBasic access control reader
Product colorBlack
Cards capacity3000 cards
Fingerprint readerYes
Authentication typeAccess chip/card, Biometric, Password
Fingerprint sensor typeOptical
False Rejection Rate (FRR)0.01 %
False Acceptance Rate (FAR)0.001 %
Access chip/card reader typeContactless
Contactless working distance50 mm
International Protection (IP) codeIP42
PC connected-
Ethernet LAN data rates10, 100 Mbit/s
Display typeTFT-LCD
Display diagonal2.4 \
Maximum resolution320 x 240 pixels
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Front cameraNo
DC current (max)1 A
Weight and Dimensions IconWeight and Dimensions
Depth37 mm
Width76.5 mm
Height205 mm
