Fingerprint Access Control Terminal
33
2. Select Edit and follow the steps in Section 4.6.3.1 Adding Holiday to edit the holiday information.
Or select Delete and press the OK key to delete the holiday.
3. Press the ESC key and select Yes to save the settings and exit the interface.
4.6.4 Configuring Shift Schedule
Purpose:
Configure the shift schedule by department or by individual.
4.6.4.1 Scheduling Shift by Department
Before you start:
1. Edit the department. For detailed information, see Section 4.6.1 Configuring Department.
2. Configure the normal shift or the man-hour shift. For detailed information, see Section 4.6.2
Configuring Shift.
Steps:
1. Select a target department in the By Dept. (Schedule by Department) interface.

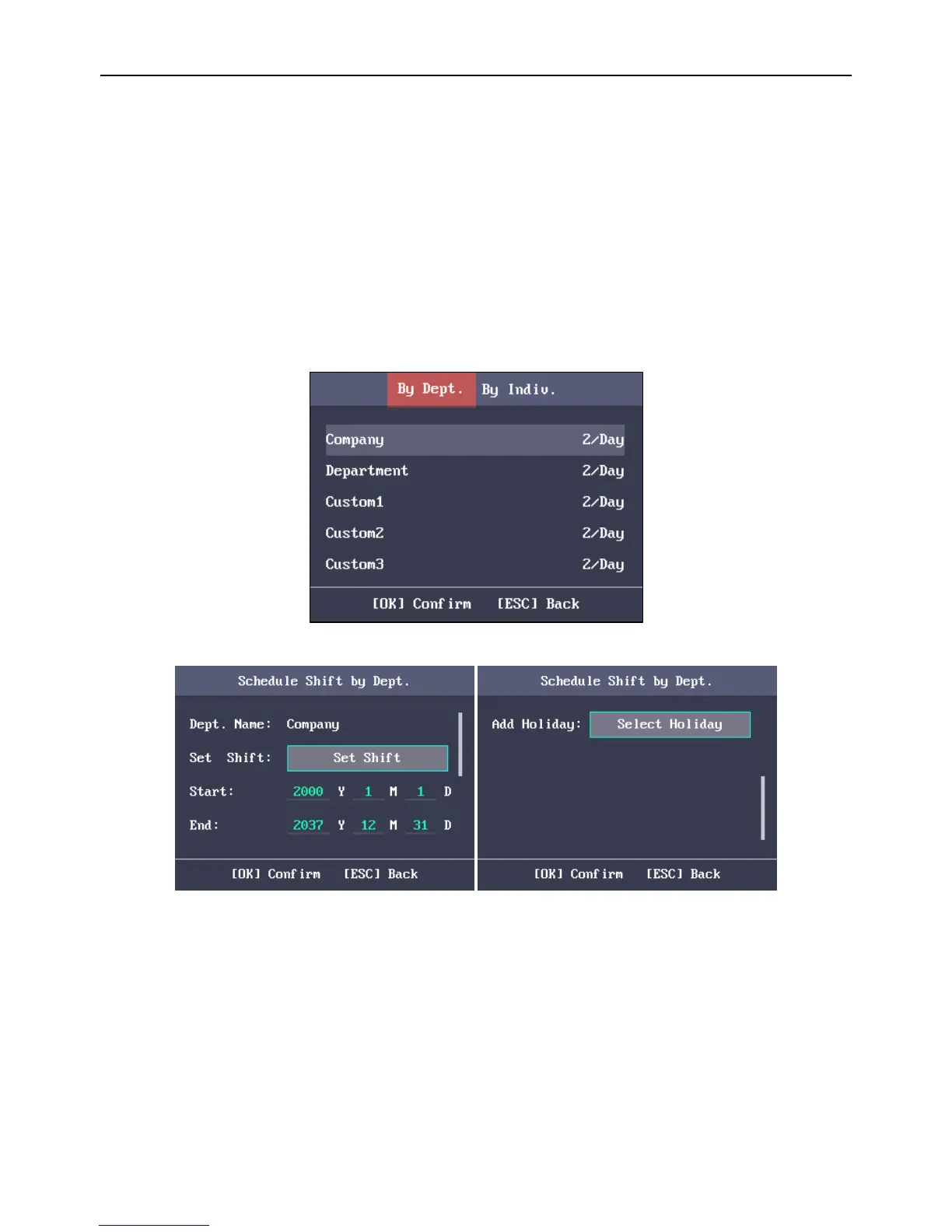

Schedule Shift by Department Figure 4. 62
2. Press the OK key to enter the Schedule Shift by Dept. interface.
Schedule Shift by Dept. Interface Figure 4. 63
3. Move the cursor to Set Shift and press the OK key to enter the Set Shift interface.
1) Select the shift type and the shift times.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-K1T803MF and is the answer not in the manual?

HIKVISION DS-K1T803MF Specifications

General IconGeneral
TypeBasic access control reader
Product colorBlack
Cards capacity3000 cards
Fingerprint readerYes
Authentication typeAccess chip/card, Biometric, Password
Fingerprint sensor typeOptical
False Rejection Rate (FRR)0.01 %
False Acceptance Rate (FAR)0.001 %
Access chip/card reader typeContactless
Contactless working distance50 mm
International Protection (IP) codeIP42
PC connected-
Ethernet LAN data rates10, 100 Mbit/s
Display typeTFT-LCD
Display diagonal2.4 \
Maximum resolution320 x 240 pixels
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Front cameraNo
DC current (max)1 A
Weight and Dimensions IconWeight and Dimensions
Depth37 mm
Width76.5 mm
Height205 mm
