HIKVISION DS-K1T803MF User Manual

Fingerprint Access Control Terminal
61
If a card is associated with the current person, the association will be invalid after the person is
deleted.

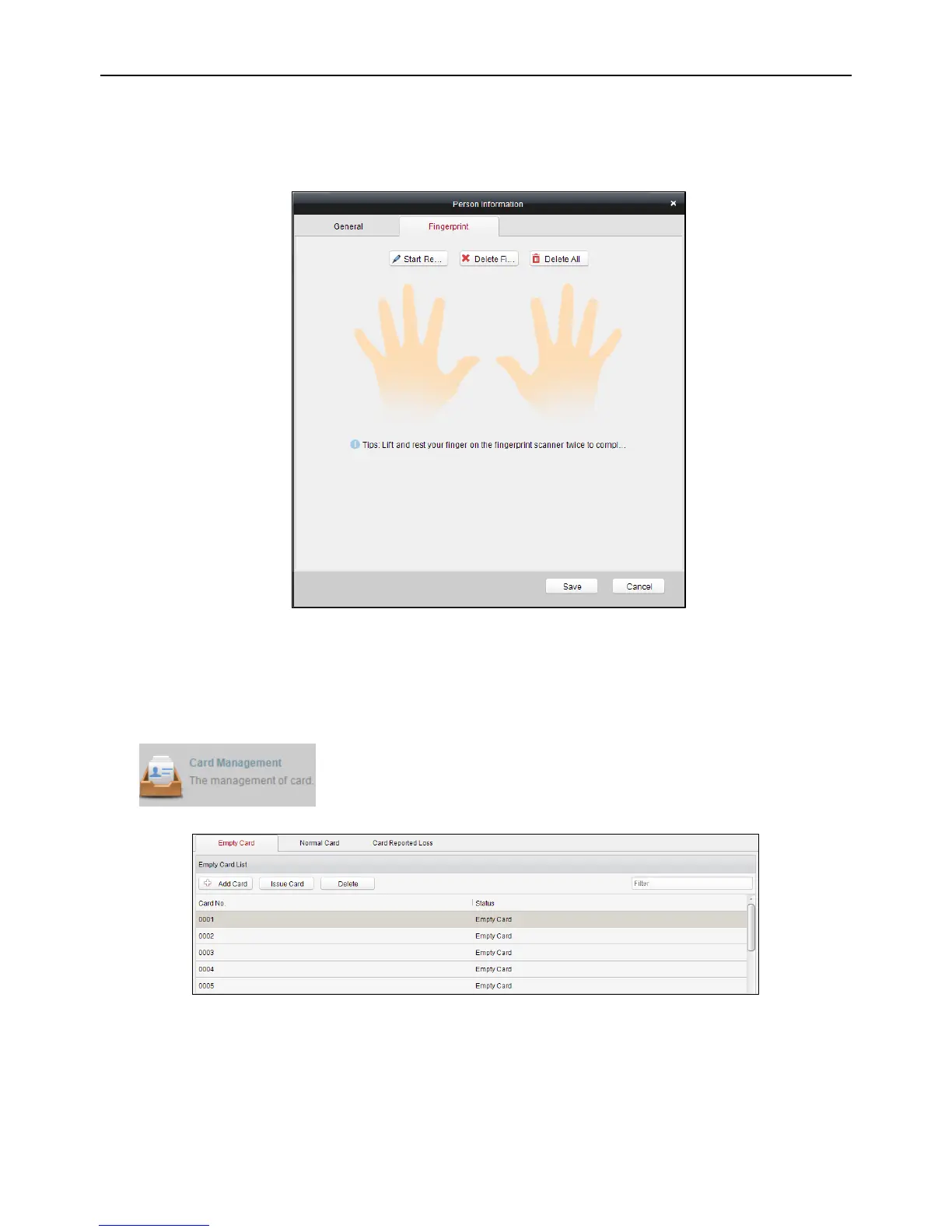

 Inputting Fingerprint
Steps:
1. In the personal information interface, click the Fingerprint button.
2. Click the Start Register button, and select the fingerprint to be input.
3. Click the Save button to save the parameter.
Note: Click the Delete Fingerprint button to delete the fingerprint.
Click the Delete All button to clear all fingerprints input.
5.3.2 Card Management
Click on the control panel of the software to enter the card management
interface.
The cards are divided into 3 types: Blank Card, Normal Card, and Lost Card.
Blank Card: A card has not been issued with a person.
Normal Card: A card is issued with a person and is under normal using.
Lost Card: A card is issued with a person and is reported as lost.

HIKVISION DS-K1T803MF Specifications

General

Type	Basic access control reader
Product color	Black
Cards capacity	3000 cards
Fingerprint reader	Yes
Authentication type	Access chip/card, Biometric, Password
Fingerprint sensor type	Optical
False Rejection Rate (FRR)	0.01 %
False Acceptance Rate (FAR)	0.001 %
Access chip/card reader type	Contactless
Contactless working distance	50 mm
International Protection (IP) code	IP42
PC connected	-
Ethernet LAN data rates	10, 100 Mbit/s
Display type	TFT-LCD
Display diagonal	2.4 \
Maximum resolution	320 x 240 pixels
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Front camera	No
DC current (max)	1 A

Weight and Dimensions

Depth	37 mm
Width	76.5 mm
Height	205 mm
