HIKVISION DS-K1T803MF User Manual

Fingerprint Access Control Terminal
20
4.4.2.3 Deleting the User
Select Delete User and press the OK key to delete the target user and its information.
Or press Delete Password and press the OK key to delete the target user password.
Or press Clear FP (Fingerprint) and press the OK key to clear the target user fingerprint.
Or press Clear Card and press the OK key to delete the user card No.
Access Control System Configuration 4.5
Purpose:
Configure the access control permission, including the access control parameters, the holiday group, the
week plan and the schedule template.

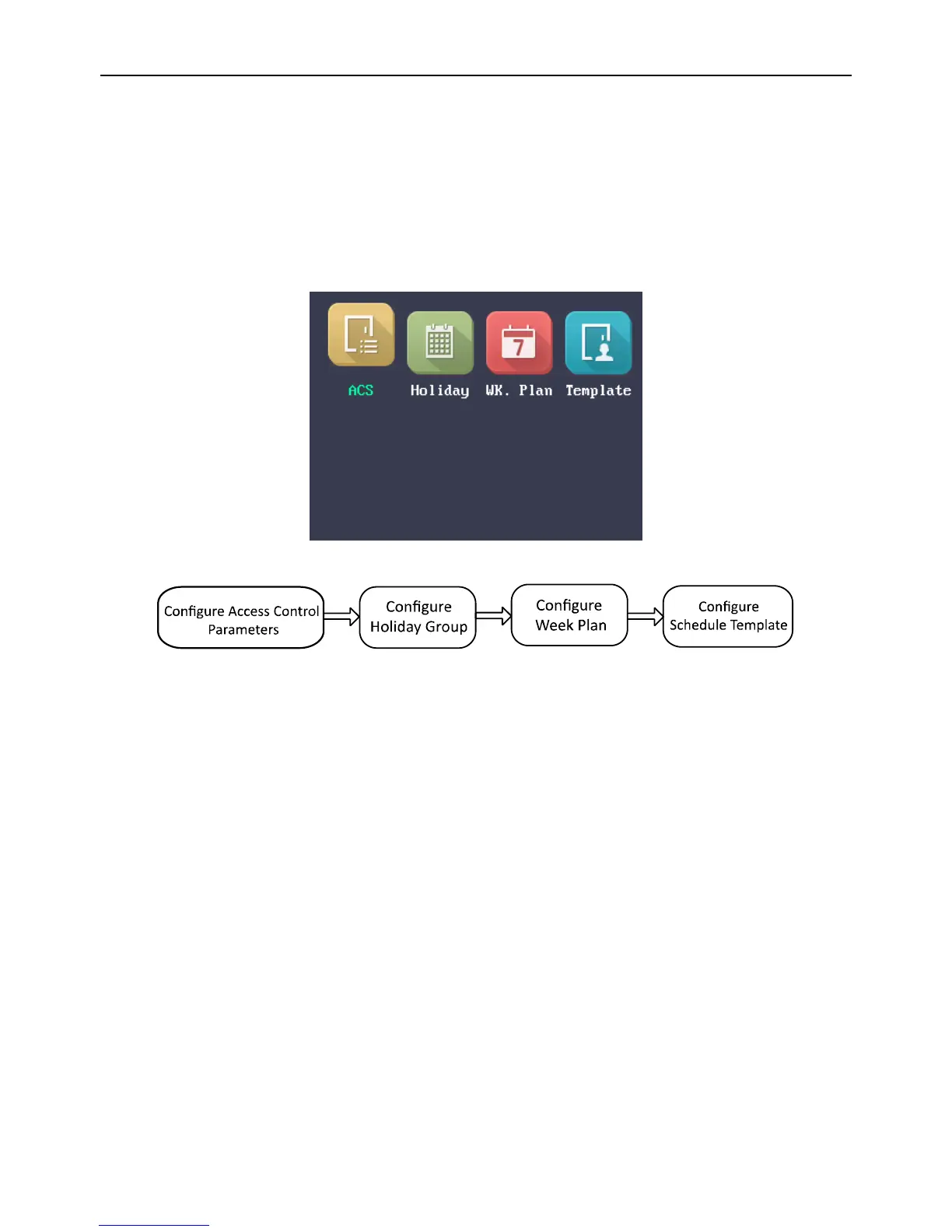

Access Control System Interface Figure 4. 34
The suggested configuration flow is as follows:
Access Control Configuration Flow Figure 4. 35
Access Control
Parameters:
Configure the terminal access control parameters, including the
terminal authentication, the sub reader authentication, the door
magnetic status, the lock action time duration, the door-open
timeout alarm, the authentication times exceeded alarm and the
anti-passback.
Holiday Group:
Configure the holiday group for the access control function. In the
setting duration, the door cannot be controlled.
Week Plan:
Configure the week plan for the access control function. The door
can be controlled during the configured time.
Schedule Template:
Set the configured week plan and the holiday group. The door
can be controlled in the configured time duration.
4.5.1 Configure Access Control Parameters
Steps:
1. Select ACS (Access Control System) in the access control system interface to enter the
parameters setting interface.

HIKVISION DS-K1T803MF Specifications

General

Type	Basic access control reader
Product color	Black
Cards capacity	3000 cards
Fingerprint reader	Yes
Authentication type	Access chip/card, Biometric, Password
Fingerprint sensor type	Optical
False Rejection Rate (FRR)	0.01 %
False Acceptance Rate (FAR)	0.001 %
Access chip/card reader type	Contactless
Contactless working distance	50 mm
International Protection (IP) code	IP42
PC connected	-
Ethernet LAN data rates	10, 100 Mbit/s
Display type	TFT-LCD
Display diagonal	2.4 \
Maximum resolution	320 x 240 pixels
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Front camera	No
DC current (max)	1 A

Weight and Dimensions

Depth	37 mm
Width	76.5 mm
Height	205 mm
