HIKVISION DS-K1T803MF User Manual

Fingerprint Access Control Terminal
6
Chapter 2 Installation
Before You Start:
 Make sure that the device in the package is in good condition and all the assembly parts are
included.
 Make sure that the wall is strong enough to withstand three times the weight of the device.
Steps:

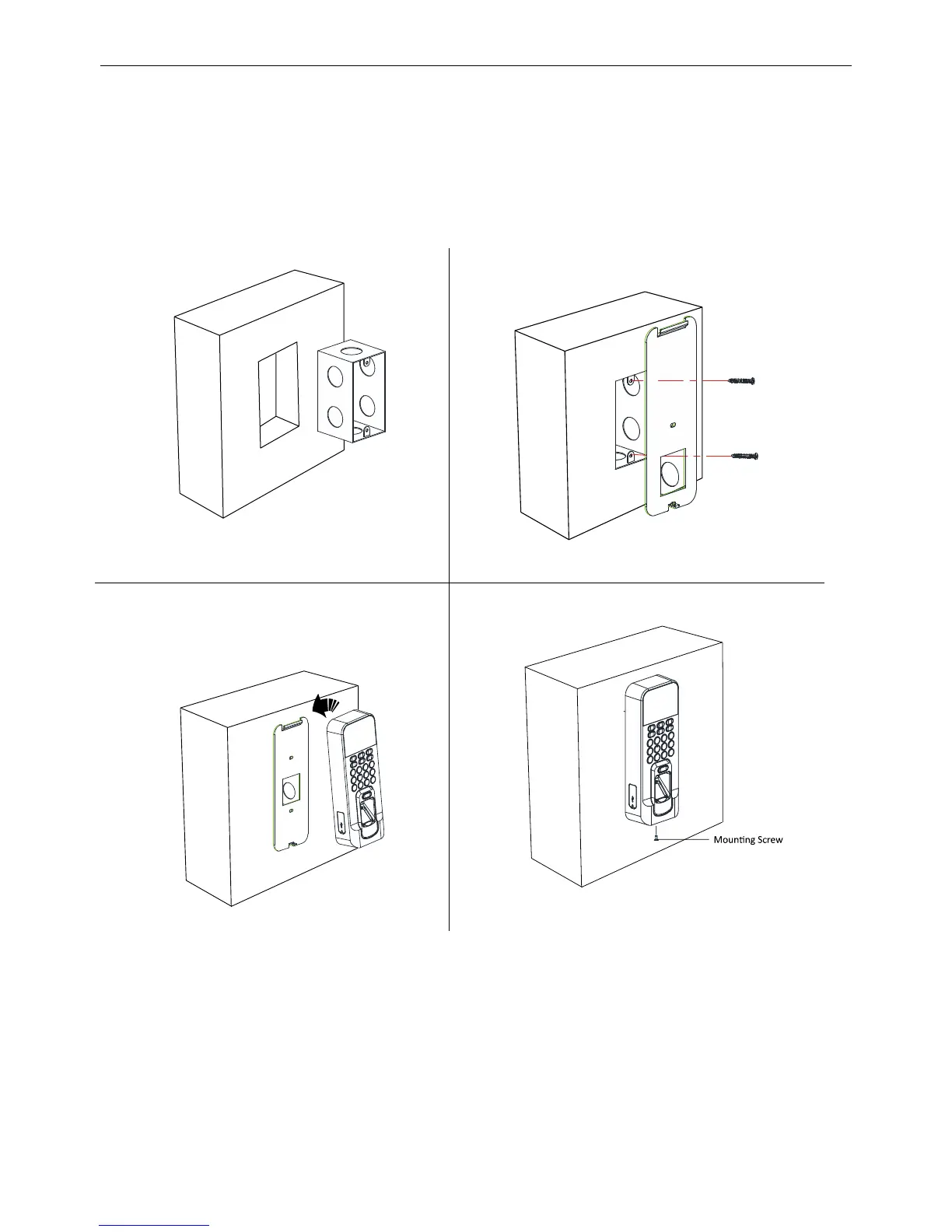

1. Install 120 gang box into the wall.
Install the 120 gang box
Figure 2. 1
2. Secure the device mounting plate on the gang
box with two screws (supplied).
Secure the mounting plate
Figure 2. 2
3. Align the terminal with mounting plate.
Push the terminal in the mounting plate
from bottom up. Fasten the terminal with
the buckles on the plate.
Install the Terminal
Figure 2. 3
4. Tighten the screws to fix the terminal on the
mounting plate and complete the installation.
Secure the mounting Screw
Figure 2. 4

HIKVISION DS-K1T803MF Specifications

General

Type	Basic access control reader
Product color	Black
Cards capacity	3000 cards
Fingerprint reader	Yes
Authentication type	Access chip/card, Biometric, Password
Fingerprint sensor type	Optical
False Rejection Rate (FRR)	0.01 %
False Acceptance Rate (FAR)	0.001 %
Access chip/card reader type	Contactless
Contactless working distance	50 mm
International Protection (IP) code	IP42
PC connected	-
Ethernet LAN data rates	10, 100 Mbit/s
Display type	TFT-LCD
Display diagonal	2.4 \
Maximum resolution	320 x 240 pixels
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Front camera	No
DC current (max)	1 A

Weight and Dimensions

Depth	37 mm
Width	76.5 mm
Height	205 mm
