HIKVISION DS-K1T803MF User Manual

Fingerprint Access Control Terminal
7

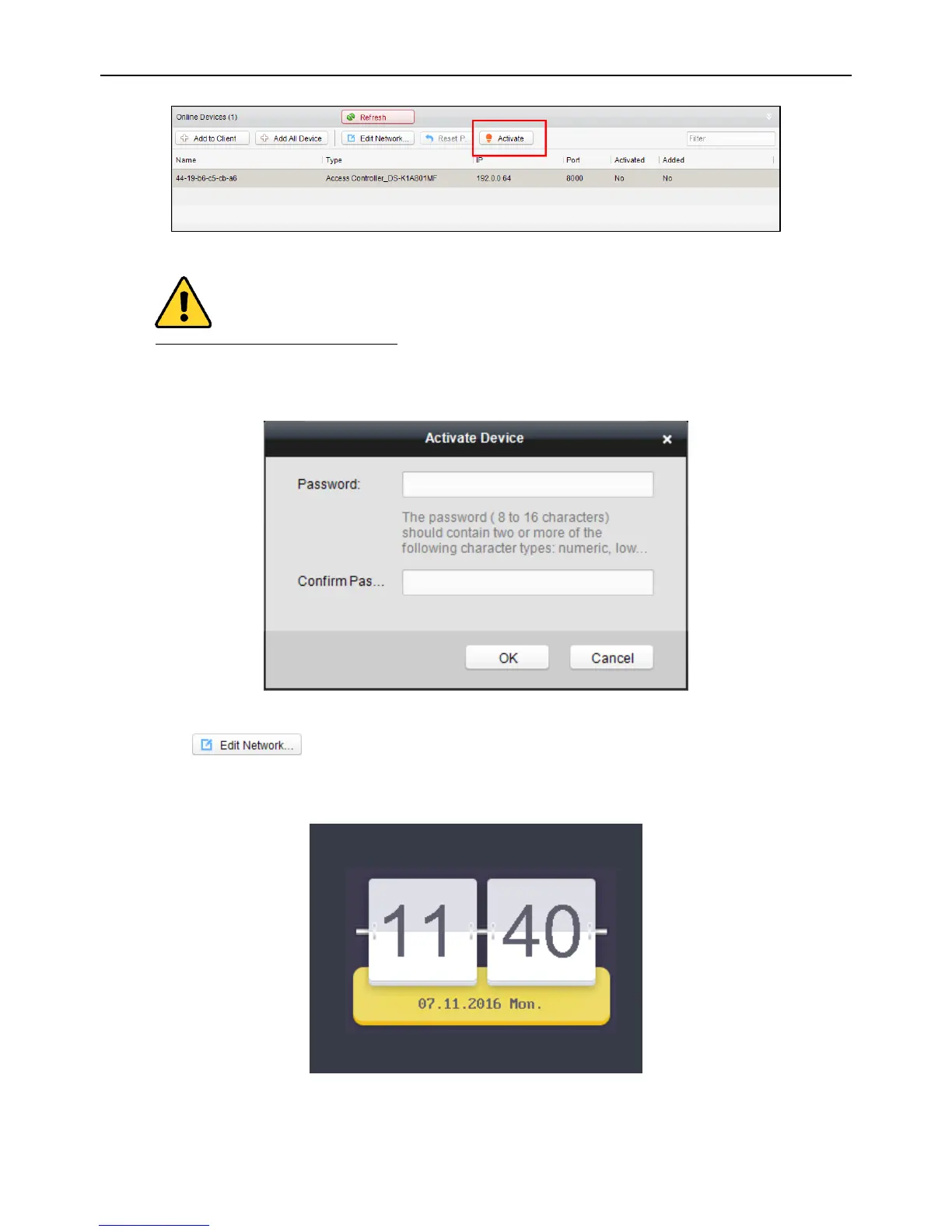

5. Click Activate to pop up the Activation interface.
Select Inactive Device Figure 4. 8
6. Create a password and confirm the new password.
STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own
choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and
special characters) in order to increase the security of your product. And we recommend you reset your
password regularly, especially in the high security system, resetting the password monthly or weekly can better
protect your product.
Activate the Device Figure 4. 9
7. Click OK to start activate.
8. Click to configure the device IP address, mask address, gateway address, port No.
9. Input the password and click OK to apply.
Note: The device IP address should be the same with the PC.
The device will switch to the initial interface:
Initial Interface Figure 4. 10

HIKVISION DS-K1T803MF Specifications

General

Type	Basic access control reader
Product color	Black
Cards capacity	3000 cards
Fingerprint reader	Yes
Authentication type	Access chip/card, Biometric, Password
Fingerprint sensor type	Optical
False Rejection Rate (FRR)	0.01 %
False Acceptance Rate (FAR)	0.001 %
Access chip/card reader type	Contactless
Contactless working distance	50 mm
International Protection (IP) code	IP42
PC connected	-
Ethernet LAN data rates	10, 100 Mbit/s
Display type	TFT-LCD
Display diagonal	2.4 \
Maximum resolution	320 x 240 pixels
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Front camera	No
DC current (max)	1 A

Weight and Dimensions

Depth	37 mm
Width	76.5 mm
Height	205 mm
