HIKVISION DS-K1T803MF User Manual

Fingerprint Access Control Terminal
6
1. Get the client software from the supplied disk or the official website. Install and run the client
software.
Note: Go to http://www.hikvision.com/en/Tools_84.html to download the client software.
2. Click Switch System -> Access Control System at the upper left corner of the interface to enter
the Access Control System interface.
3. Click Controller Management to enter the Controller Management interface.

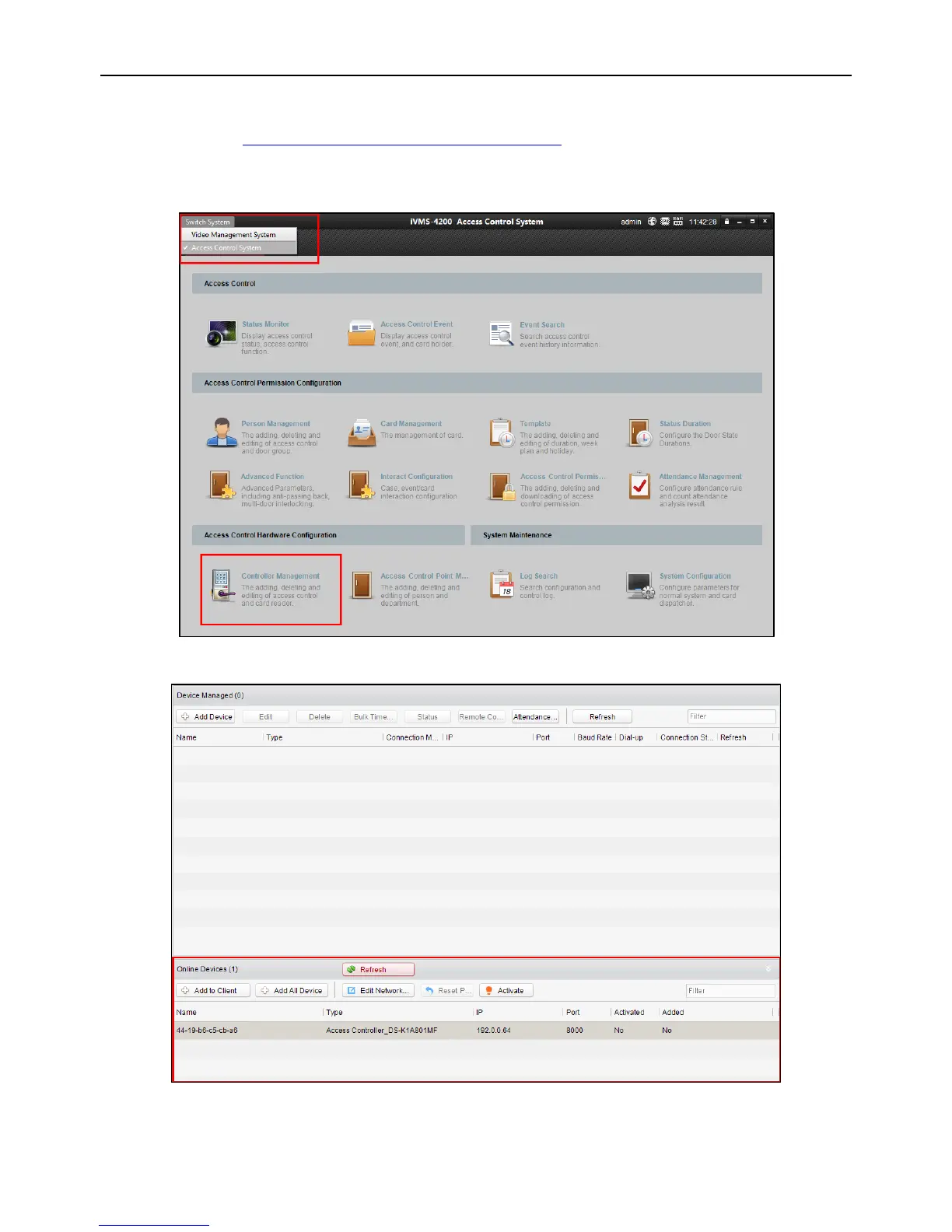

Control Panel Interface Figure 4. 6
You can check the online device, as shown in Figure 4. 7
Device List Figure 4. 7
4. Select an inactive device from the device list.

HIKVISION DS-K1T803MF Specifications

General

Type	Basic access control reader
Product color	Black
Cards capacity	3000 cards
Fingerprint reader	Yes
Authentication type	Access chip/card, Biometric, Password
Fingerprint sensor type	Optical
False Rejection Rate (FRR)	0.01 %
False Acceptance Rate (FAR)	0.001 %
Access chip/card reader type	Contactless
Contactless working distance	50 mm
International Protection (IP) code	IP42
PC connected	-
Ethernet LAN data rates	10, 100 Mbit/s
Display type	TFT-LCD
Display diagonal	2.4 \
Maximum resolution	320 x 240 pixels
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Front camera	No
DC current (max)	1 A

Weight and Dimensions

Depth	37 mm
Width	76.5 mm
Height	205 mm
