HIKVISION DS-K1T803MF User Manual

Fingerprint Access Control Terminal
83

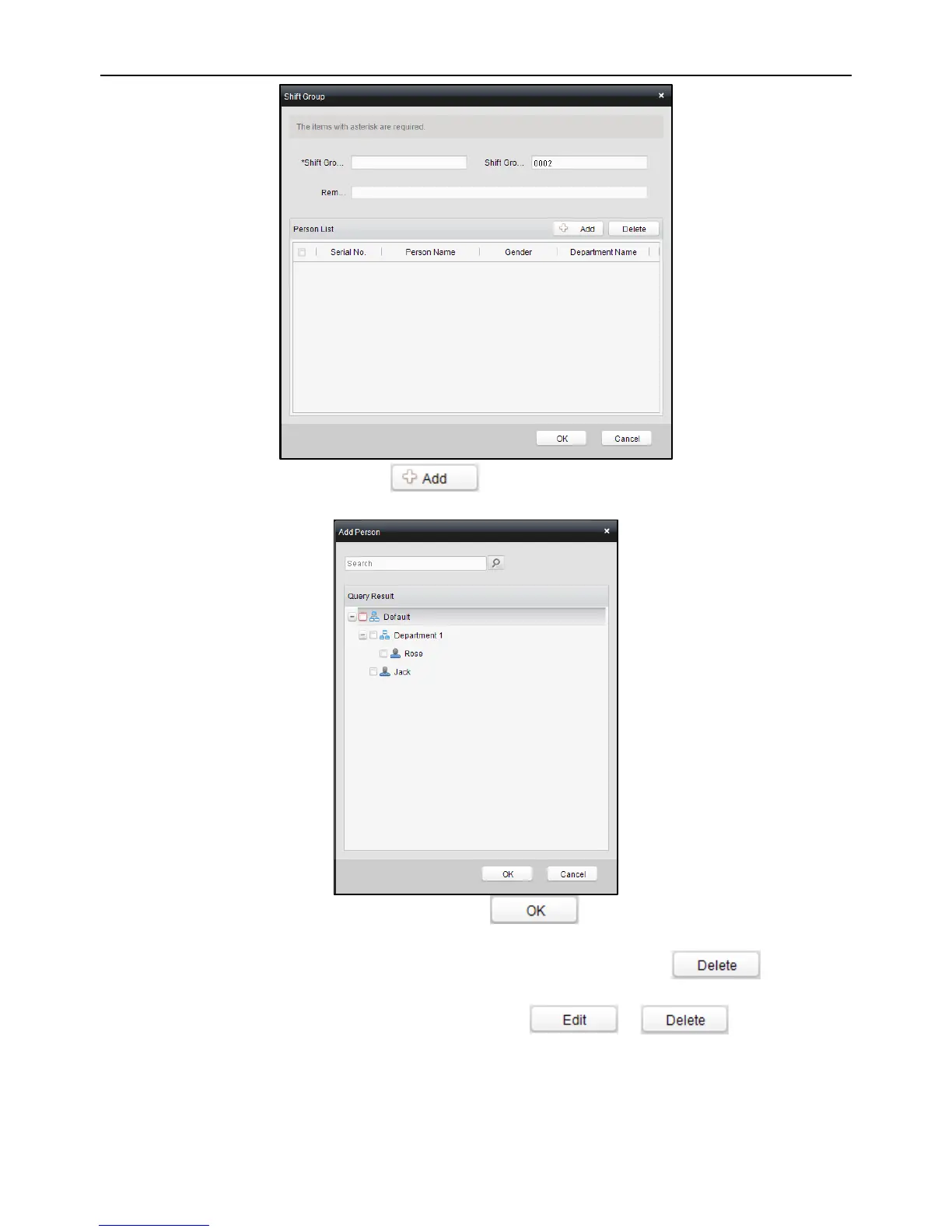

3. Enter the shift group name, and add button on the person list area to pop up the person
adding window.
4. Check the checkbox to select the person and click and return to the shift group settings
interface.
To delete the added person, check the person from the person list, and click button.
5. Click OK button to complete the operation.
6. You can edit or delete the added shift groups by clicking or .
Notes:
 After deleting the shift group, the shift schedule of the shift group will be deleted as well. For details
about shift schedule, refer to Section 5.4.4 Shift Schedule Management.
 If the person has been added to one shift group, he/she cannot be added to other shift groups.

HIKVISION DS-K1T803MF Specifications

General

Type	Basic access control reader
Product color	Black
Cards capacity	3000 cards
Fingerprint reader	Yes
Authentication type	Access chip/card, Biometric, Password
Fingerprint sensor type	Optical
False Rejection Rate (FRR)	0.01 %
False Acceptance Rate (FAR)	0.001 %
Access chip/card reader type	Contactless
Contactless working distance	50 mm
International Protection (IP) code	IP42
PC connected	-
Ethernet LAN data rates	10, 100 Mbit/s
Display type	TFT-LCD
Display diagonal	2.4 \
Maximum resolution	320 x 240 pixels
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Front camera	No
DC current (max)	1 A

Weight and Dimensions

Depth	37 mm
Width	76.5 mm
Height	205 mm
