HIMA HIMatrix Series User Manual

System Manual Compact Systems 7 Start-Up
HI 800 141 E Rev. 2.02 Page 47 of 110
i
 To ensure efficient cooling, the device must be mounted on a horizontal DIN rail.
 A distance of at least 100 mm above and below the device must be maintained.
 The device must not be mounted above heating equipment or any heat source.
100 mm
DIO
20/8 01
3
1
DIO
20/8 01
20 mm

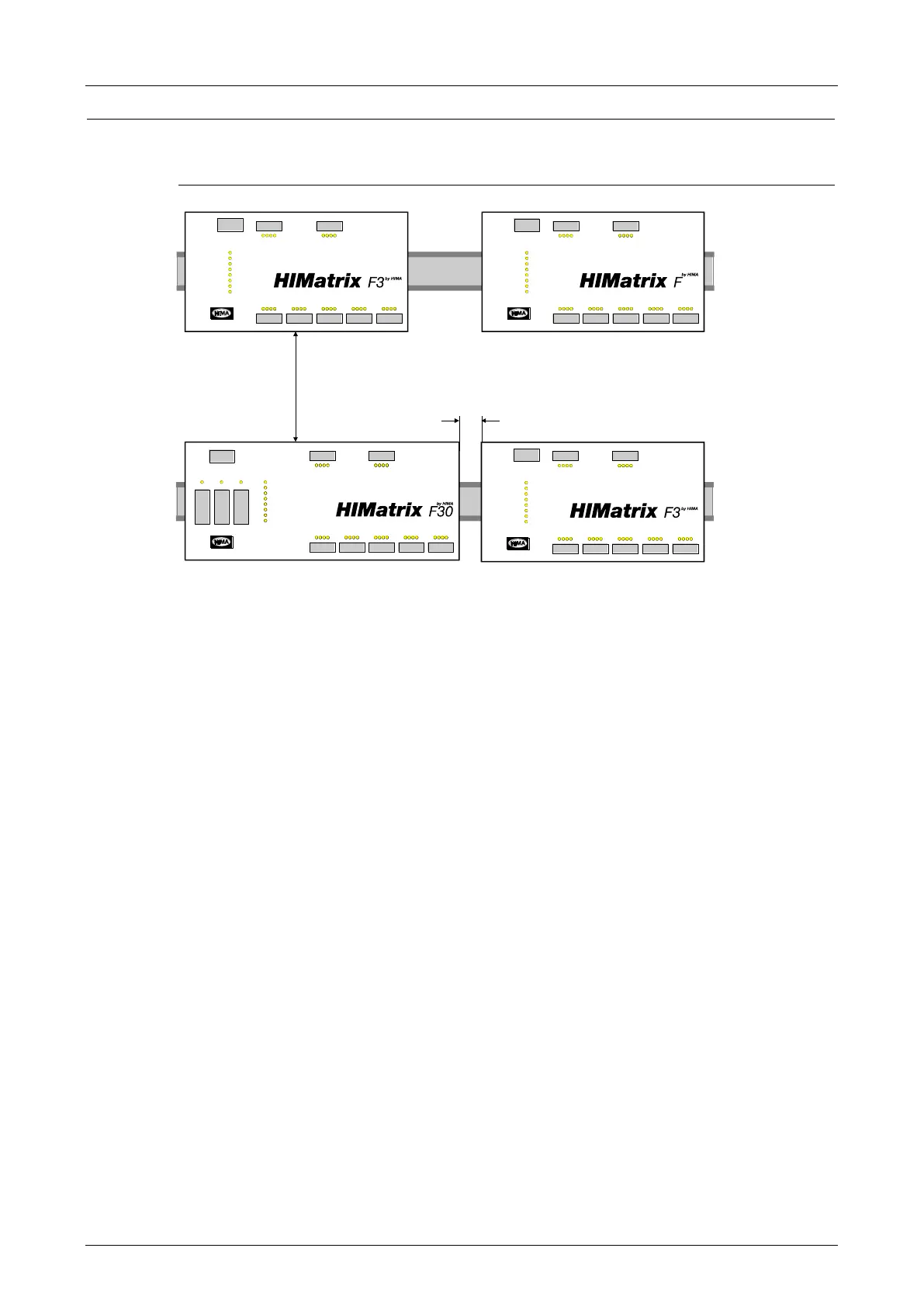

Figure 8: Minimum Clearances with HIMatrix Compact Systems
7.2.1.1 Routing Cables
Use the shortest possible route to connect the cable duct to the HIMatrix system. Avoid routing
cables across the front plates of the system.
