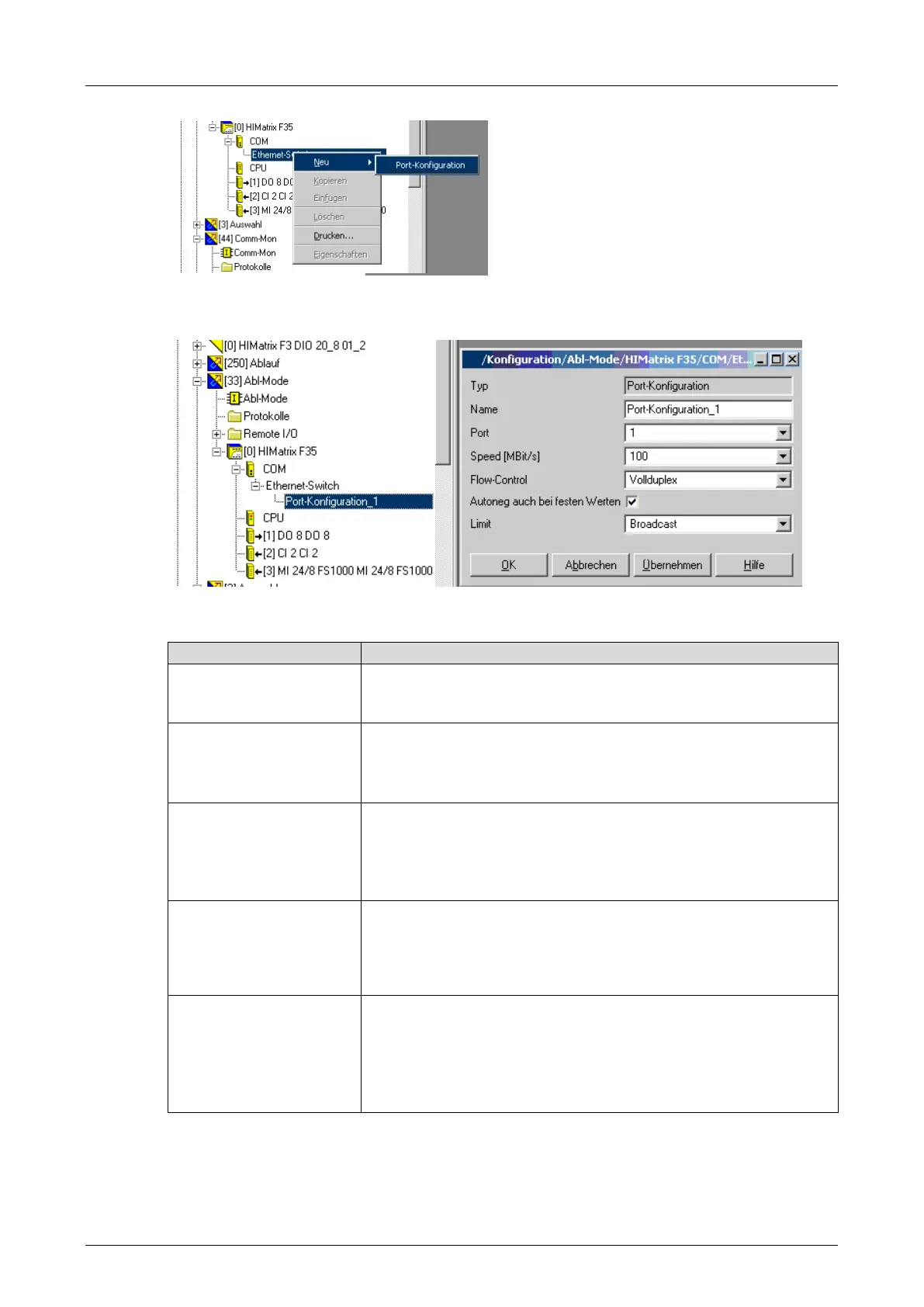

Figure 12: Creating a Port Configuration - CPU OS up to V7
Figure 13: Parameters of a Port Configuration - CPU OS up to V7
Name
Explanation
Port
Port number as printed on the housing; per port, only one
configuration may exist.
Range of values: 1...n, depending on the resource
Speed [Mbit/s]
10 Mbit/s: Data rate 10 Mbit/s
100 Mbit/s: Data rate 100 Mbit/s
Autoneg (10/100): Automatic baud rate setting
Standard: Autoneg
Flow Control
Full duplex: Simultaneous communication in both directions
Half duplex: Communication in both directions, but only one
direction at a time
Autoneg: Automatic communication control
Standard: Autoneg
Autoneg also with fixed
values
The Advertising function (forwarding the Speed and Flow Control
properties) is also performed if Speed and Flow Control have fixed
values.
This allows other devices with ports set to Autoneg to recognize
the HIMatrix ports' settings.
Limit
Limit the inbound multicast and/or broadcast packets.
Off: No limitation
Broadcast: Limit broadcast packets (128 kbit/s)
Multicast and Broadcast: Limit multicast and broadcast packets
(1024 kbit/s)
Default: Broadcast
Table 58: Parameters of a Port Configuration - CPU OS up to V7
Click Apply to adopt the parameters in the communication system's configuration. The
parameters set in the properties of the communication system and Ethernet switch
