HIMA HIMatrix Series User Manual

System Manual Compact Systems 7 Start-Up
HI 800 141 E Rev. 2.02 Page 49 of 110
80 mm 80 mm
DIO
20/8 01
3
1

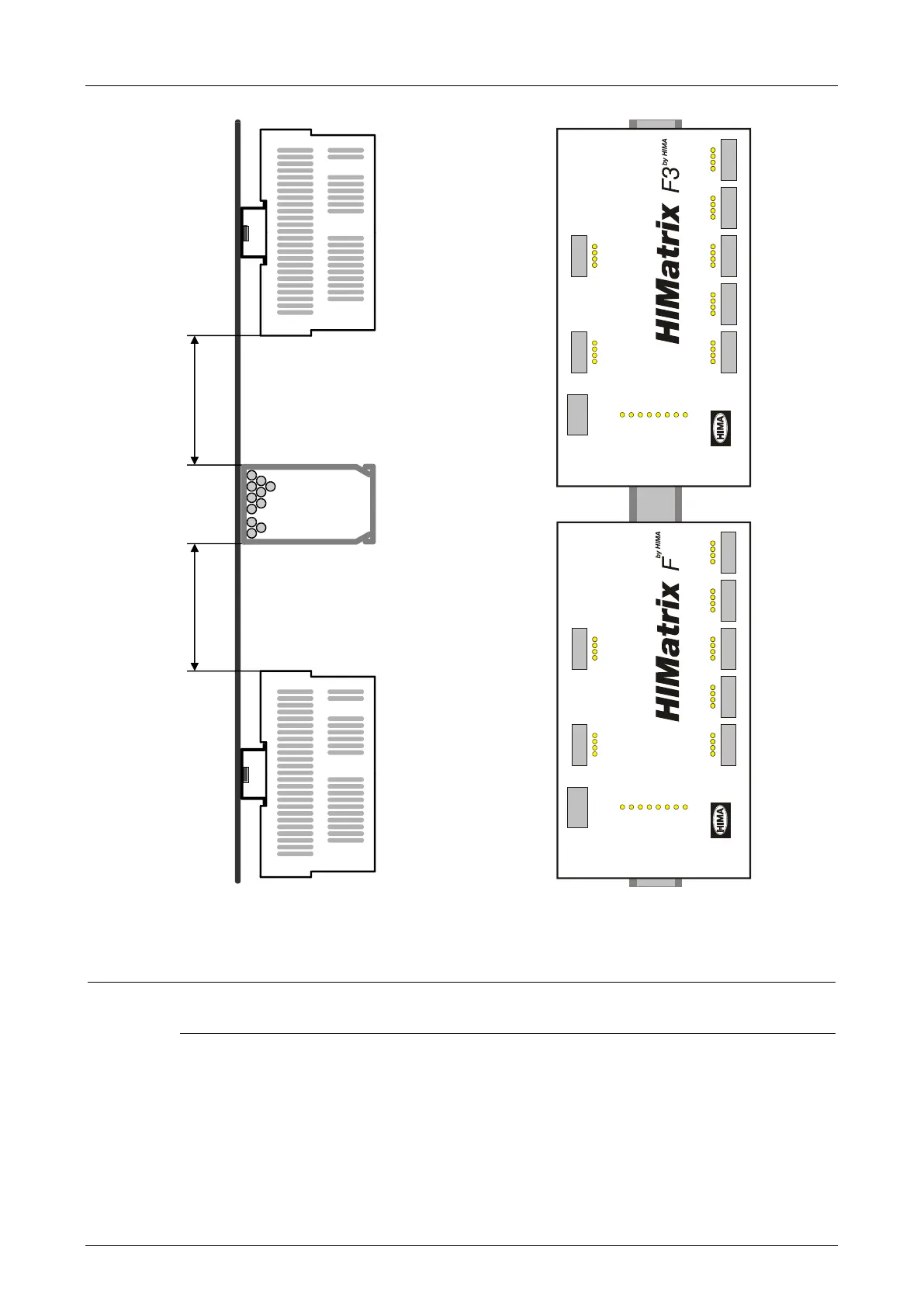

Mounting clearances without spacers
Vertical mounting of HIMatrix systems
Figure 10: Mounting without Spacers and Vertical Mounting
i
HIMatrix devices may only be mounted vertically if sufficient ventilation is ensured!
With open mounting surfaces, it is not difficult to remain within the maximum operating
temperature limits provided that the minimum clearances are maintained and air circulation is
not obstructed.
7.2.3 Construction Depths
The construction depth specified in the table below must be used for the HIMatrix compact
systems due to the communication connectors and the I/O level. The various construction
depths are measured from the mounting rail.
