Configuration and management
BAT54-Rail/F..
Release
7.54
06/08
4.4
Configuration using different tools
139
4.4.6 Encrypted configuration with SSH access
In addition to the option to configure a BAT with Telnet or a terminal program,
LCOS version 4.00 and later provides an additional option of access via SSH.
With a suitable SSH client such as PuTTy, you can set up an encrypted con-
nection to the device and thus prevent the data being transferred during con-
figuration from being intercepted within the network.

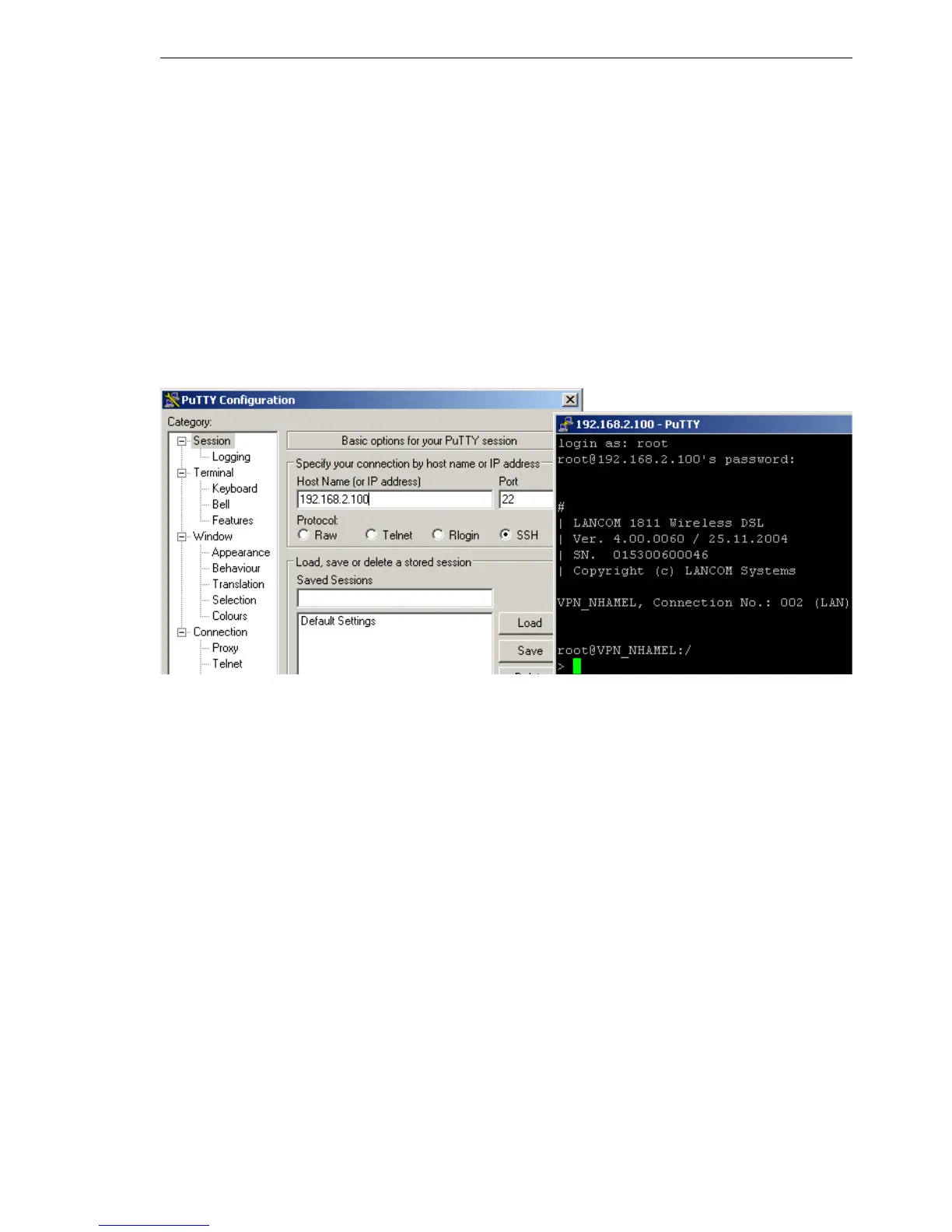

Start PuTTy (for example) and enter the BAT device's IP address as the host
name. Use the command prompt that follows to log in by entering your user
data.
Alternatively, you can use LANconfig under Tools
 Options  Extras to en-
ter your SSH client as an "external program“; then start the SSH access with
a right-mouseclick on the device and open WEBconfig/Console session

Open SSH session.
