Installation BRS20/30/40/50
Release 02 11/2018

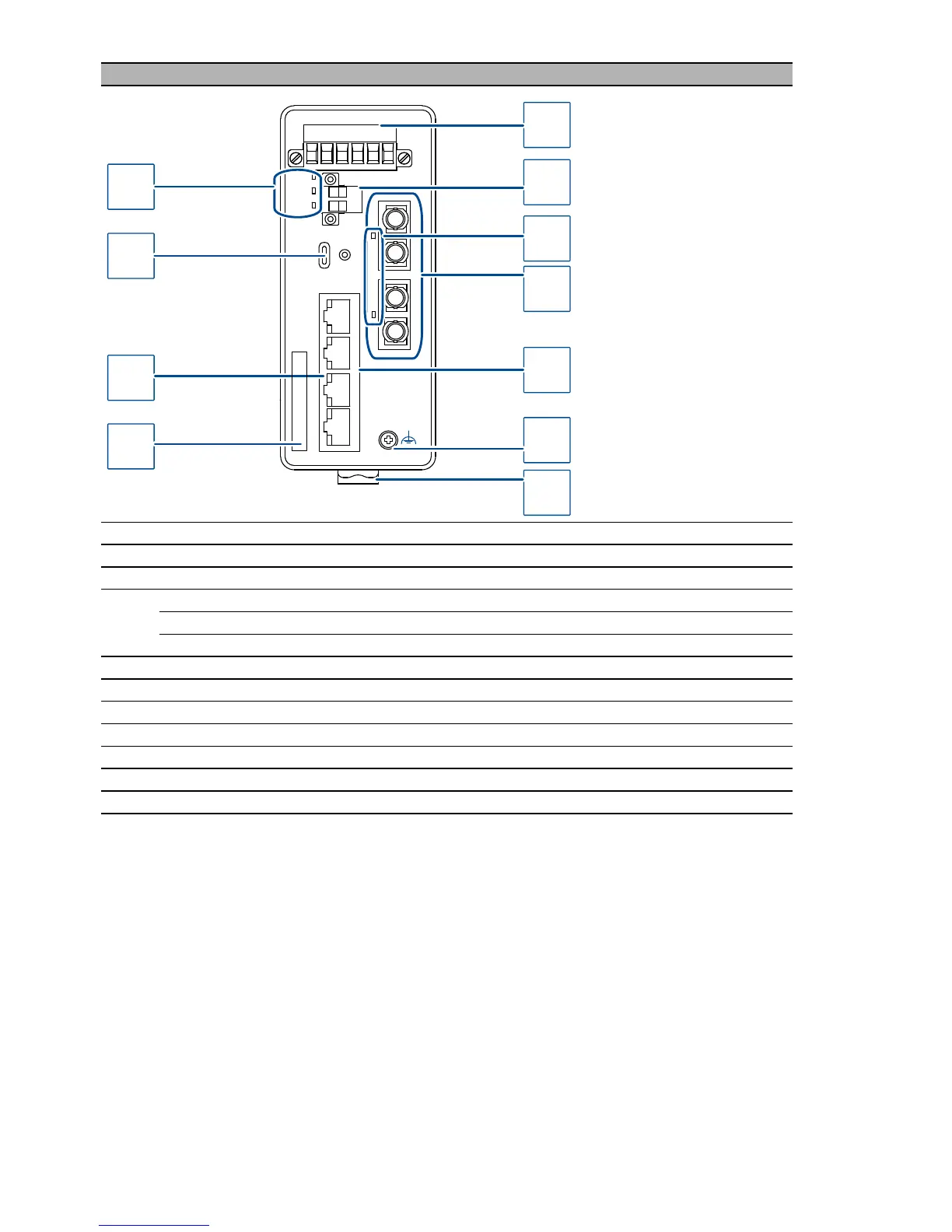

BRS20-06xxxx-xxC...
1 6-pin terminal block with screw lock for redundant power supply and signal contact
2 2-pin terminal block with screw lock for the digital input
3 LED display elements for port status
4 depending on device variant
DSC or DST singlemode socket for 100 Mbit/s fiber optic connections
DSC or DST multimode socket for 100 Mbit/s fiber optic connections
5 4 × RJ45 socket for 10/100 Mbit/s Twisted pair connections
6 Grounding screw
7 Rail lock slide for DIN rail mounting
8 Label area for IP address
9 LED display elements for port status
10 USB-C interface
11 LED display elements for device status
1
2
5
6
7
9
10
11
4
3
IP-ADRESS
USB
1
2
3
4
5
6
8
Power
Status
ACA
Input
