Installation BRS20/30/40/50
Release
02
11/2018
25

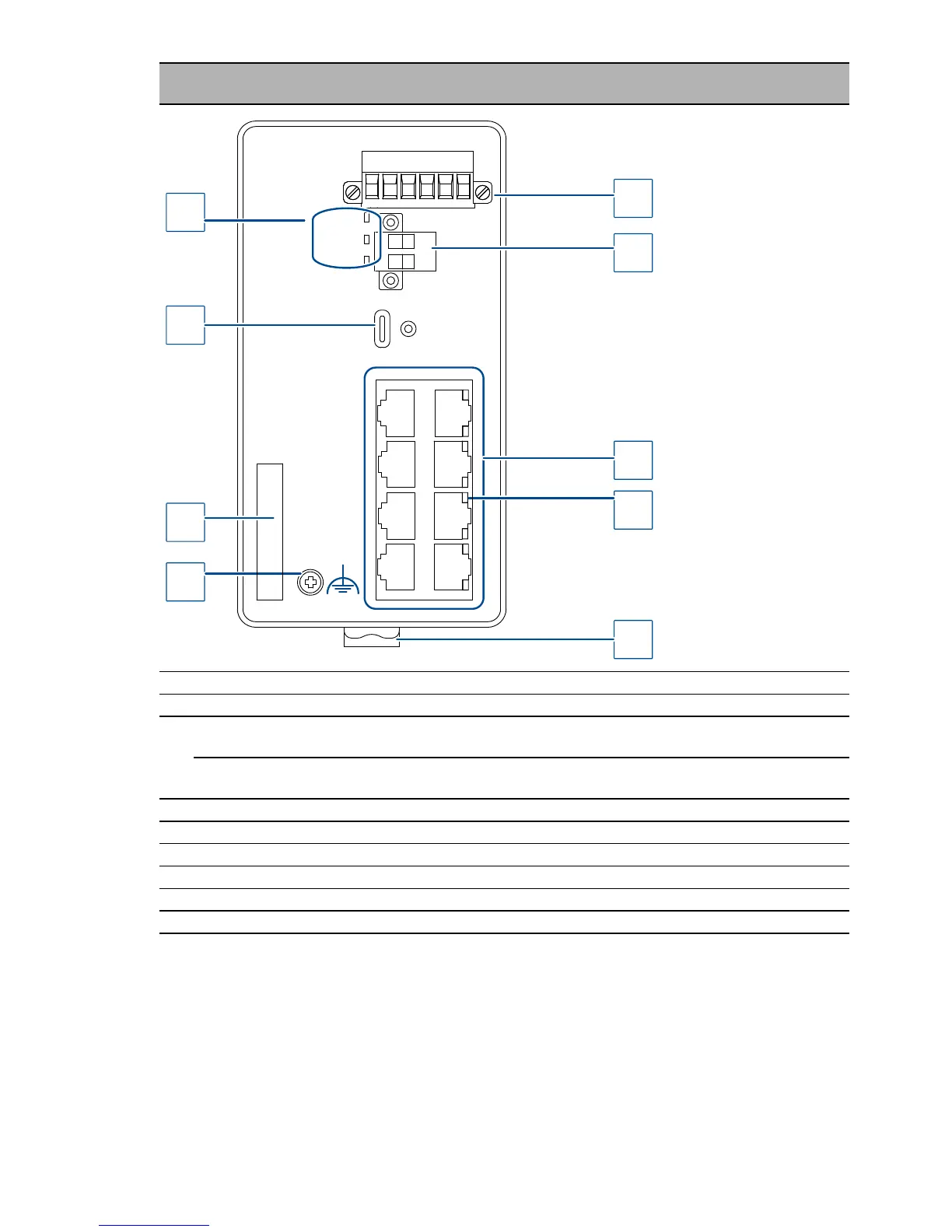

BRS20-08009999-xxC...
BRS40-00089999-xxC...
1 6-pin terminal block with screw lock for redundant power supply and signal contact
2 2-pin terminal block with screw lock for the digital input
3
8×
BRS20
RJ45 socket for 10/100 Mbit/s Twisted pair connections
8×
BRS40
RJ45 socket for 10/100/1000 Mbit/s Twisted Pair connections
4 LED display elements for port status
5 Rail lock slide for DIN rail mounting
6 Grounding screw
7 Label area for IP address
8 USB-C interface
9 LED display elements for device status
1
2
5
6
8
9
3
4
7
IP-ADRESS
Input
Power
Status
ACA
1
2
3
4
5
6
7
8
