Installation BRS20/30/40/50
Release 02 11/2018

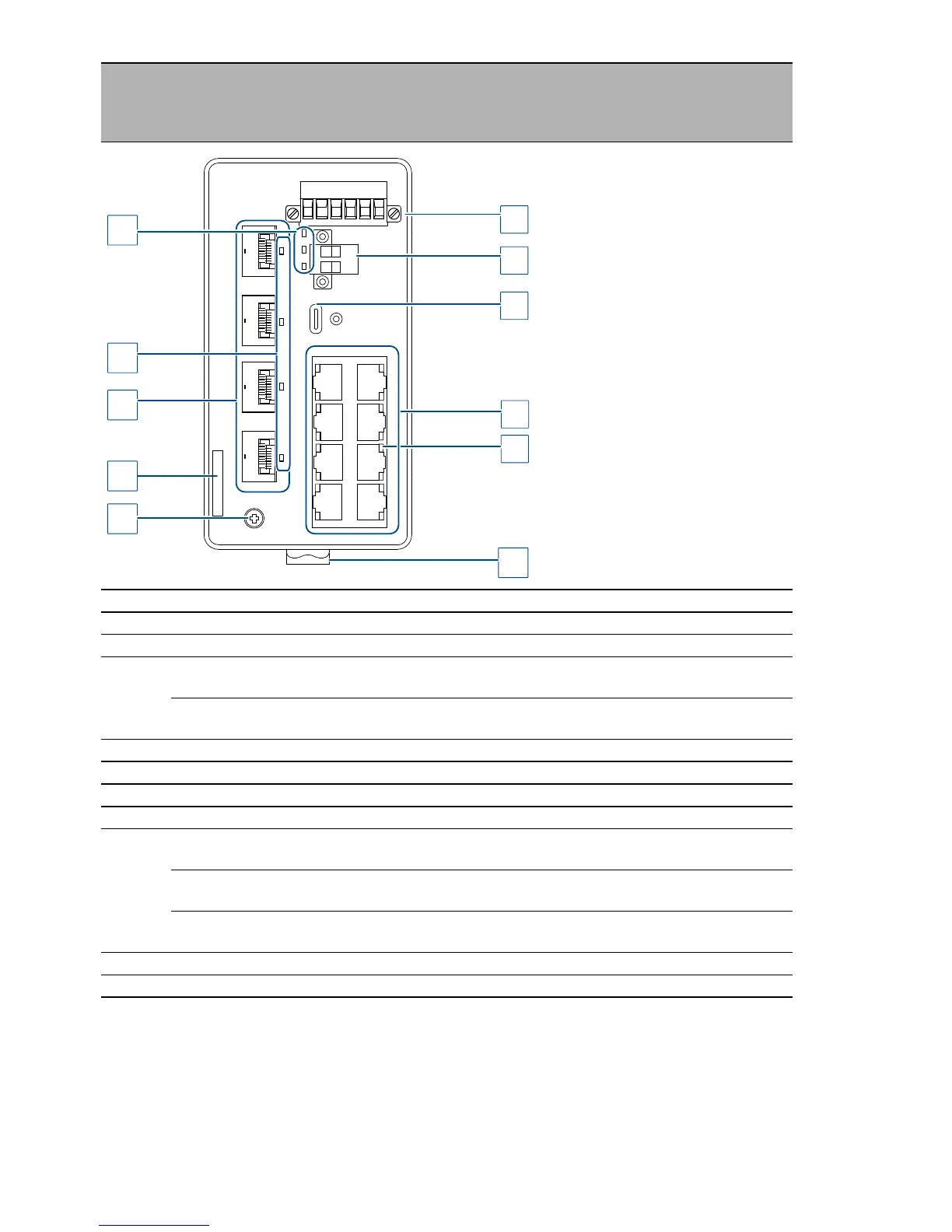

BRS20-1200ZZZZ-xxC...
BRS30-08040000-xxC...
BRS40-00120000-xxC...
BRS50-00122Q2Q-xxC...
1 6-pin terminal block with screw lock for redundant power supply and signal contact
2 2-pin terminal block with screw lock for the digital input
3 USB-C interface
4
8×
BRS20/30
RJ45 socket for 10/100 Mbit/s Twisted pair connections
8×
BRS40/50
RJ45 socket for 10/100/1000 Mbit/s Twisted Pair connections
5 LED display elements for port status
6 Rail lock slide for DIN rail mounting
7 Grounding screw
8 Label area for IP address
9
4×
BRS20
SFP slot for 100 Mbit/s F/O connections
4×
BRS30/40
SFP slot for 100/1000 Mbit/s fiber optic connections
4×
BRS50
SFP slot for 100/1000/2500 Mbit/s fiber optic connections
10 LED display elements for port status
11 LED display elements for device status
4
6
5
3
2
1
10
11
7
9
8
IP-ADRESS
