Installation DRAGON MACH4000

Release

07/2018

6.2 Removing a fan module

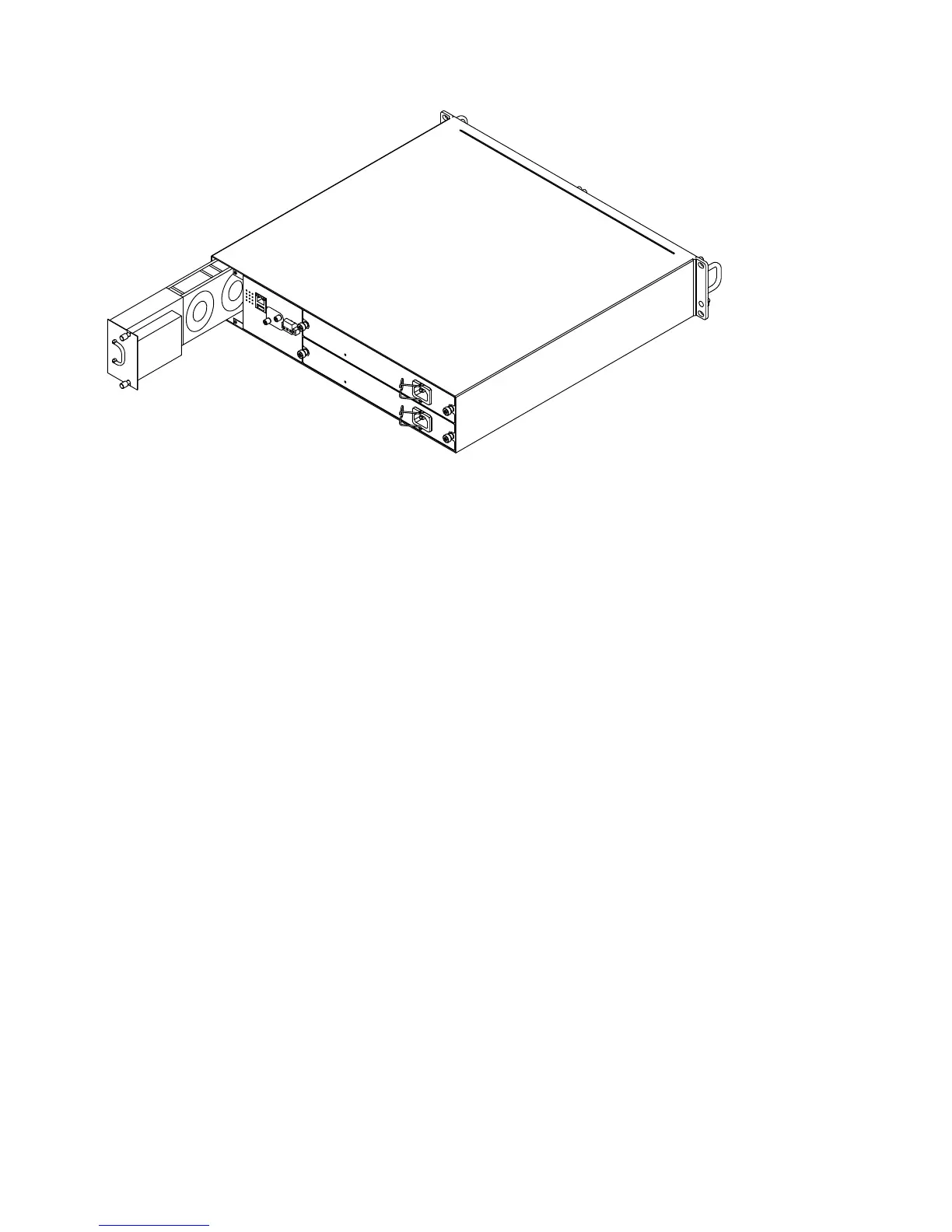

Figure 30: Removing a fan module: Disassembly (rear side of the device)

Proceed as follows:

 Unscrew the 2 screws of the fan module on the device.

 Pull the fan module out of the slot using the foldable mounting handle.
