6Remove the fixing screws (2 pieces) of the cover and the cover.
and remove the connector for EZJ97 board.

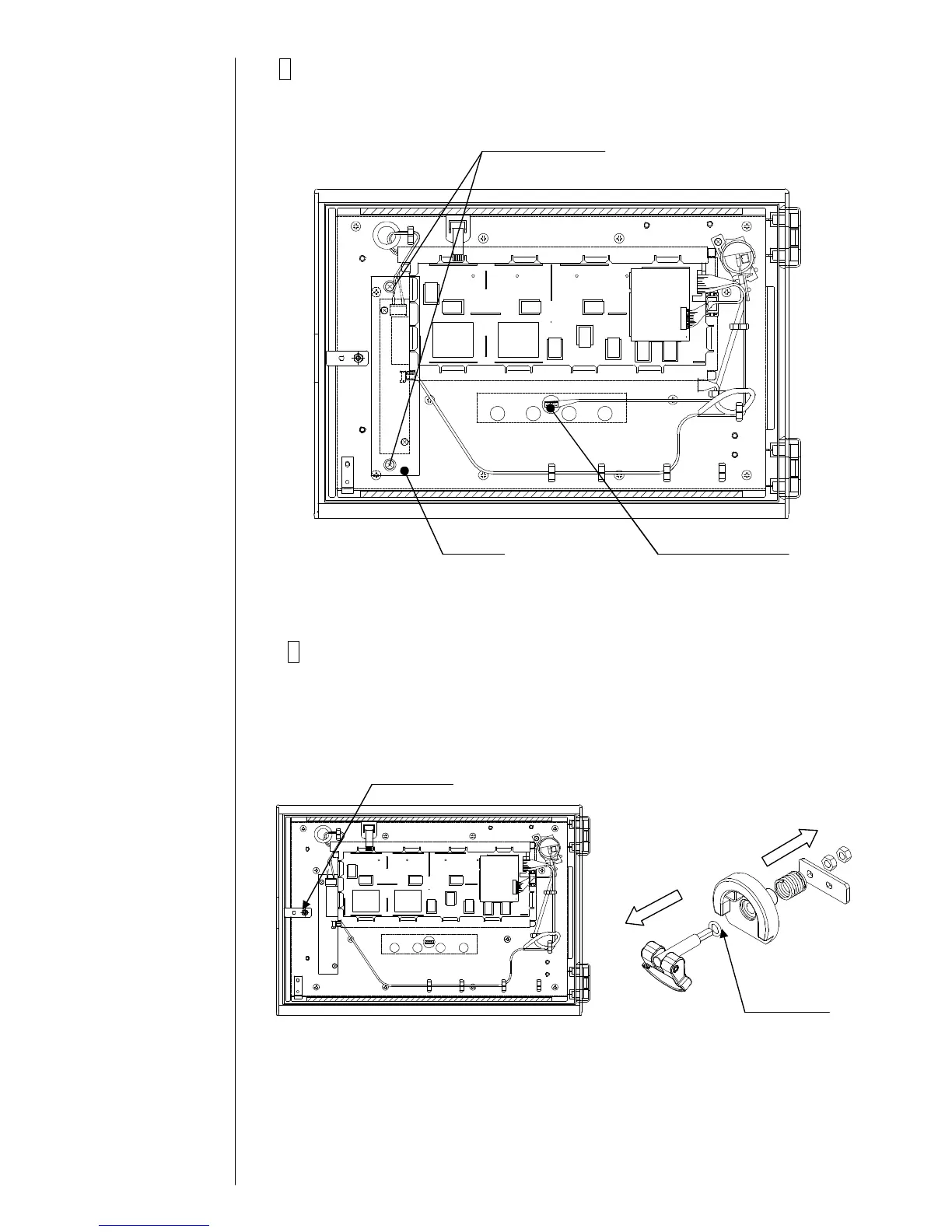

7Disassemble the door lock assembly as the diagram below indicates.
[Note] When disassembling the door lock assembly, do not lose
the O ring S6.
Door lock
assembly
【Door lock assembly】
O ring S6
Connector for
EZJ97 board
CoverCover
Fixing screws
(2pieces)
