9 Servicing
RAS-(4-6)H(V)(R/N)(C/P)2E
SMGB0136 rev.0 - 07/2021
206
2
1
7 Connect all the wiring desconnected to the control PCB as it was originally.
8 Close the electrical box according to the item “Opening/ClosingElectricalbox(Pplate)”.
9 Assembly the upper cover according to the item “9.3.3Removinguppercover”.


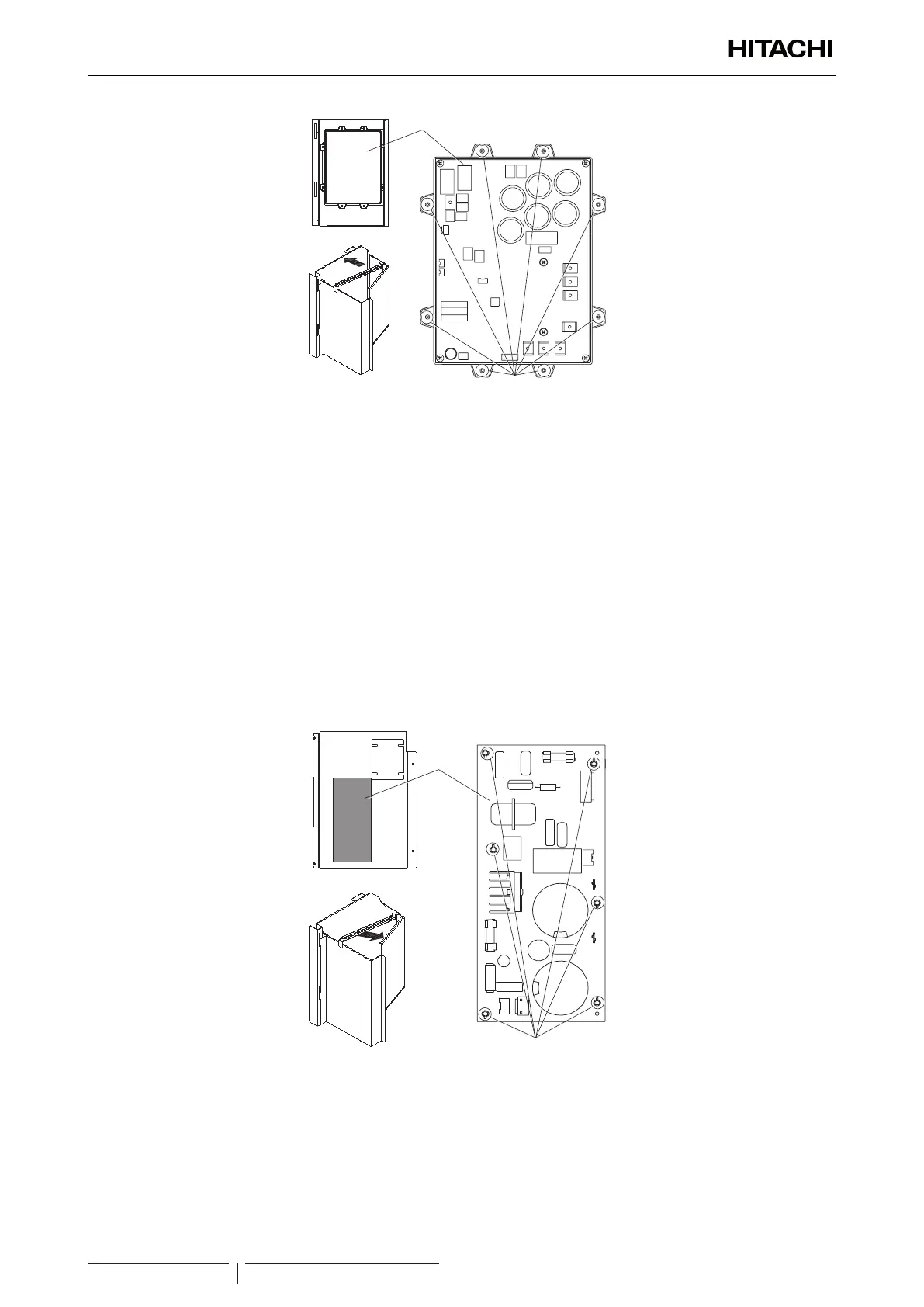

Disassembly / Assembly the PCB3
1 Open the electrical box according to the item “Opening/ClosingElectricalbox(Pplate)”.
2 Disconnect all the wiring connected to the PCB.
- CN201
- CN202
- PCN201
- PCN202
3 Remove the 6 xing holders -2- and disassembly the PCB3 -1-.
4 Disassembly the PCB3 -1- and the wiring.
5 Assembly the new control PCB -1- and x it with 6 holders -2-.
2
1
6 Connect all the wiring connected to the control PCB as it was originally.
7 Close the electrical box according to the item “Opening/ClosingElectricalbox(Pplate)”.
