Hitachi VM-E110E - Page 36

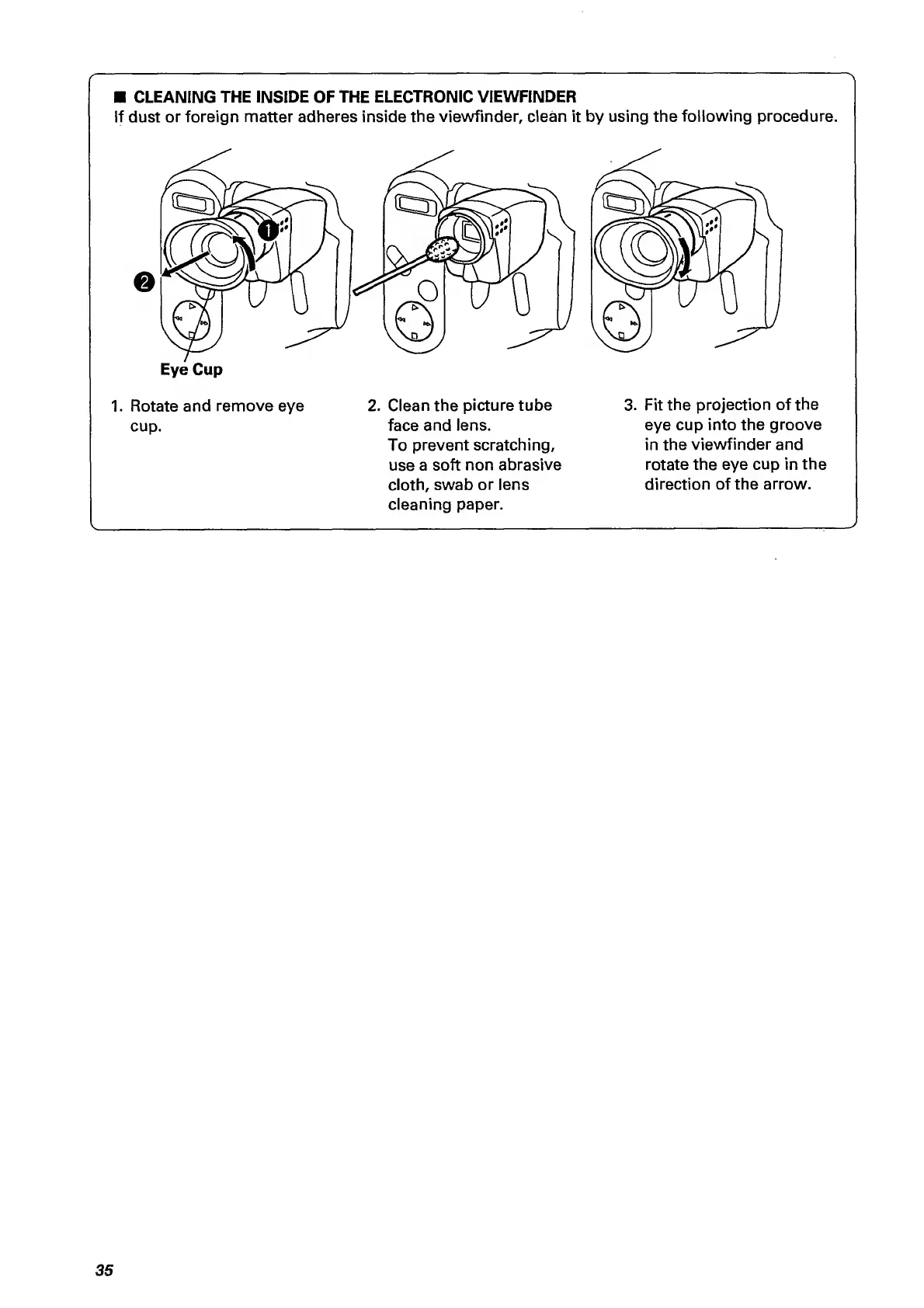

■ CLEANING THE INSIDE OF THE ELECTRONIC VIEWFINDER
If dust or foreign matter adheres inside the viewfinder, clean it by using the following procedure.
1. Rotate and remove eye
cup.
2. Clean the picture tube
face and lens.
To prevent scratching,
use a soft non abrasive
cloth, swab or lens
cleaning paper.
3. Fit the projection of the
eye cup into the groove
in the viewfinder and
rotate the eye cup in the
direction of the arrow.
35
