Main Panel
6

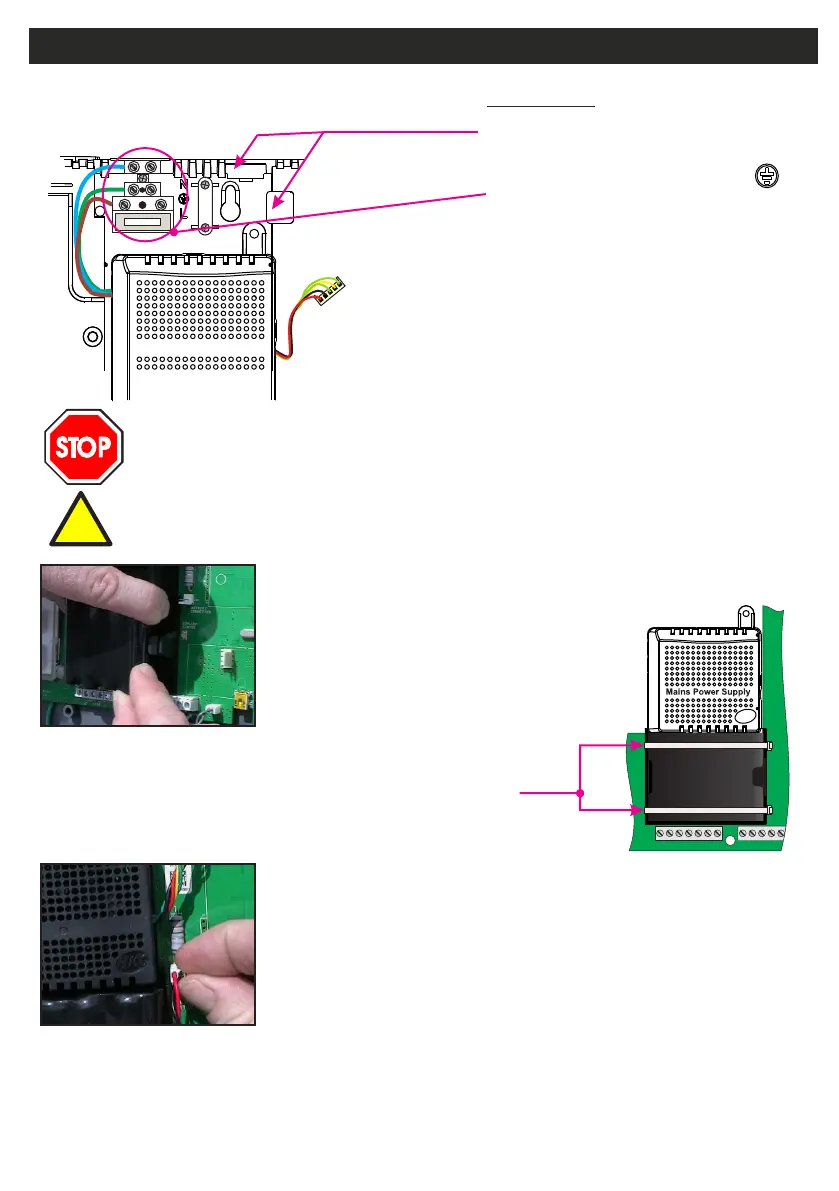

Useful Tips
These are our preferred cable
entries.
Use flex and connect Earth to ,
Neutral to N and Live to L
Always replace the mains fuse with
the rating indicated.
Always ensure that a good earth is
connected to the unit. This is
required to ensure compliance with
the EMC and LVD directives.
Isolate cables connected to panel
from high voltage cables.
Isolate mains before commencing any maintenance on this unit
After you have powered-up the panel, click the backup
battery in place
Secure battery with 300 x 4.5mm cable ties or similar.
Plug battery into BATTERY CONNECTOR (J14) Note: This
is a Nickel Metal Hydride battery and unlike other battery
types, it is not fully charged when shipped. It needs to be
recharged for about 14 hours.
Note: for best RF performance keep wiring away from antennas
Mains Power Supply
Cord-grip
Key-in 4567 to access the Engineer Mode. This will need to be validated with a User
Code. To do this, key-in a valid User Code i.e. 1111 (or 1234 in the UK). You are now in
the Service Menu.
Default Eng. Code - 4567 Default User Code - 1111 (Irl) 1234 (UK)
!
