In-coming phone line
(can be DSL enabled)
To PC
To Handset
Note: It is very important to connect the
terminal to earth. An earth connection is
required in order to provide the best
possible protection for the Digi from
voltage surges on the phone lines
This digi is not a GSM dialler, connect to
a PSTN line only
To test the phone line, measure the voltage
across the A & B terminals. It should be 40-58Vdc
Go to Comms Menu, select Digi Menu.
Enter the Digi Service Menu and scroll to Digi
Tests. Select Seize Phn Line. Measure the
voltage across the A & B terminals. It should be
6-8Vdc.

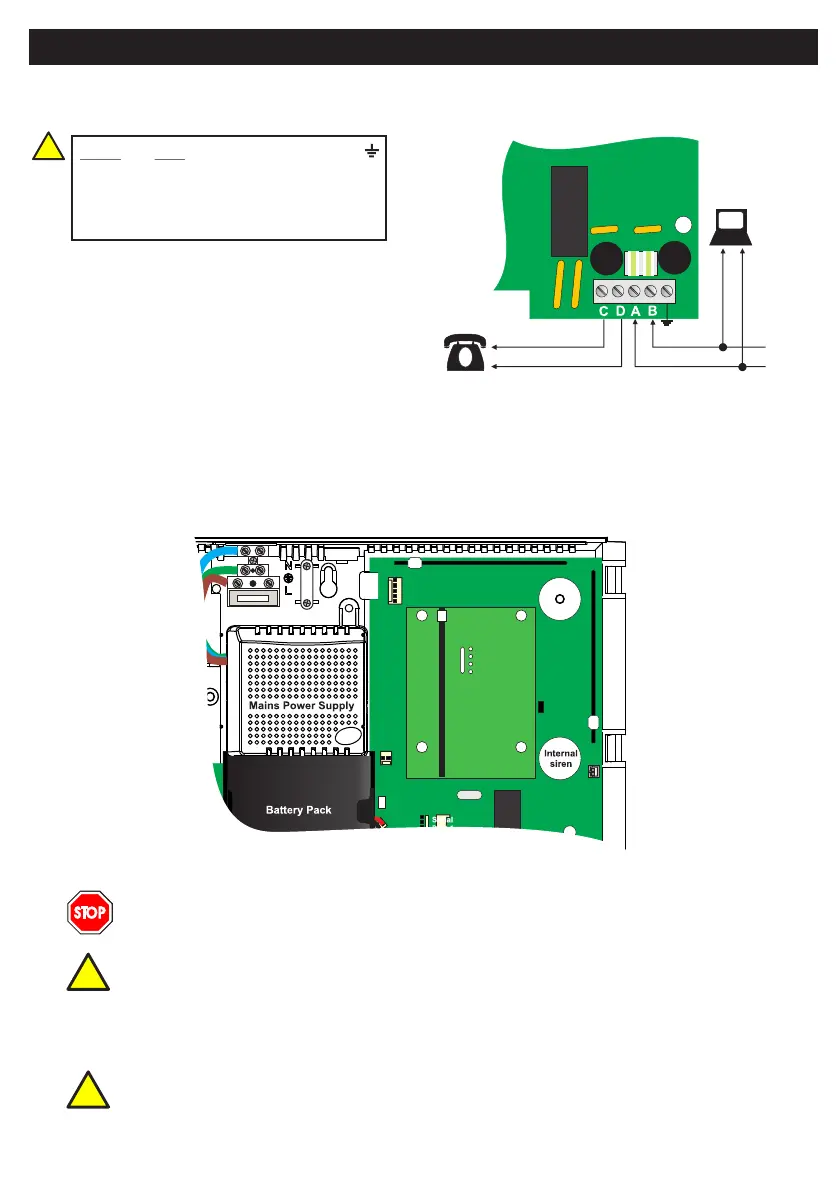

Wiring the Digi (Dialler)
Fitting the GSM-Q or GSM-WiFi
!
74
Default Eng. Code - 4567 Default User Code - 1111 (Irl) 1234 (UK)
Wiring Digi / Fitting GSM Unit
When both land-line dialler and plug-on GSM unit are operational, Monitoring Station and
Voice calls are normally routed on the land-line and SMS functions are normally handled
by the GSM unit. If one system fails, the other system will take over its functions.
However, the land-line dialler cannot handle in-coming SMS commands or send text
messages abroad.
Quantum70
GSM-Q
or
GSM-WiFi
There is no Remote User Code by default. Therefore, if you want remote access to your
system, then you need to program one into the panel. Go to Rem. User Code, this is to
be found in Remote User Menu, a sub-menu of the Comms Menu. See page 83.
!
!
Remove the mains and battery supply before fitting the GSM-Q or GSM-WiFi. Once the
hardware is physically fitted and powered-up and you enter the relevant programming
menu you will be prompted to activate the device in question.
