Power
Fault
Alarm
Complies with
EN 50131 Grade 2 Class II
1
txt
4
ghi
7
pqrs
prev
PLAY
REC
LIGHT
QUIT
YES
NO
*
2
abc
5
jkl
8
tuv
0
[
3
def
6
mno
9
wxyz
#
next
LCD Display
Lid screw is
behind flap
Speaker
Microphone
Area of the
Proximity
reader
Tamper
Switch
Mounting
screw
Mounting
screw
Remove isolation tags
to power-up unit

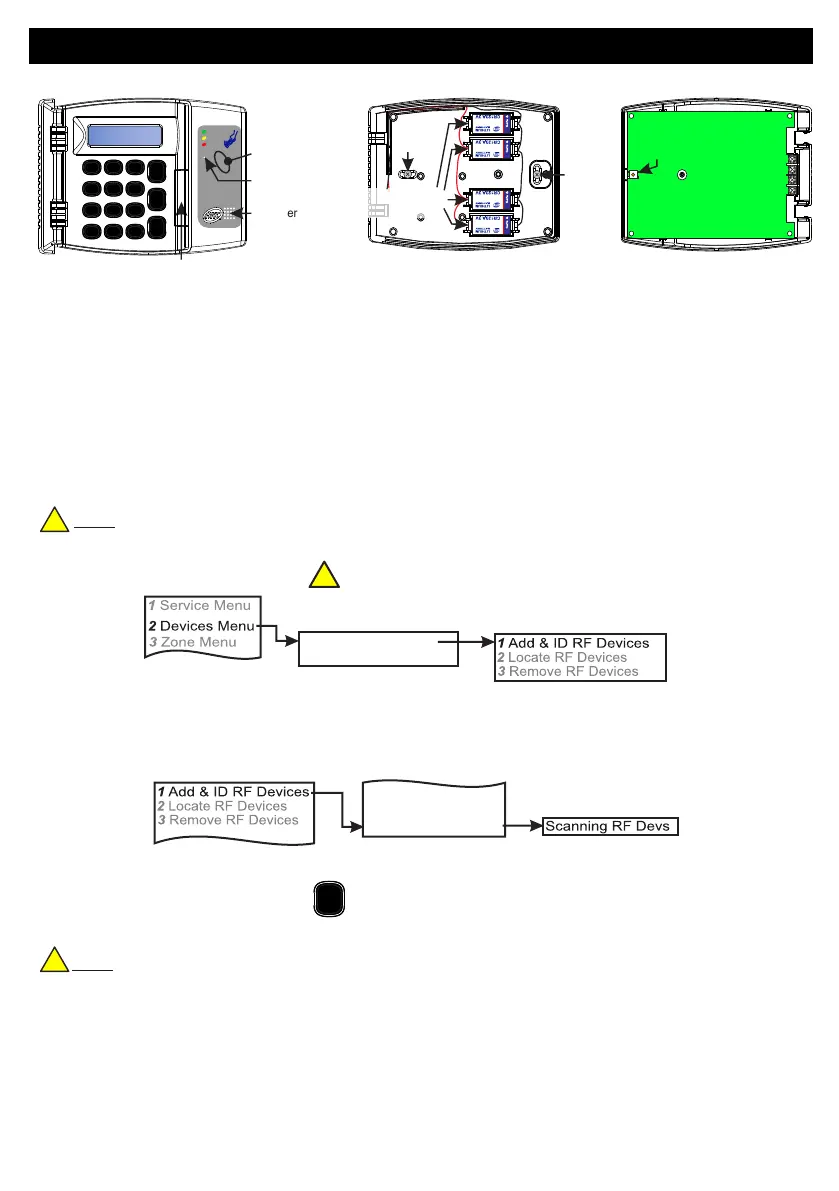

RF-RKP
Default Eng. Code - 4567 Default User Code - 1111 (Irl) 1234 (UK)
39
• >400m Line-of-sight Radio Range
• Battery Life > 3 years (based on 2 arm/disarm cycles per day)
• Comes with Proximity reader as standard
• Can be powered from a permanent 12Vdc supply
(this allows keypad to be always ‘awake’ and for longer LED back-lighting)
• Entry/Exit buzzer
• Audio memo-pad• Large library of audible messages
• Compliant with EN 50131-3 Grade 2 Class II
• Also, BS 8243
Add & ID on to the System
• To put an RF-RKP on to a Quantum 70 system go into engineer mode. Select the Devices Menu. Then RF
Devs Menu. Next, select the Add & Id RF Devs option.
• The system displays Devs Found - 000 when it starts scanning and as it finds the device the display
changes to Devs Found - 001. Press to stop the scanning process.
• Close the tamper switch. You will hear an audible indication as the device is identified into the system.
Note: The RF-Echo can have a delayed reaction.
4 Add&Id:RF SABB
5 Add&Id:RF Wand
6 Add&Id:RF Keypad
2 Wired Devices Menu
1 RF Devices Menu
!
!
PLAY
QUIT
Note: Only one RF-RKP per Quantum 70 system
!
RF-KEYPAD does not connect to RF-Repeater
To Next Page
