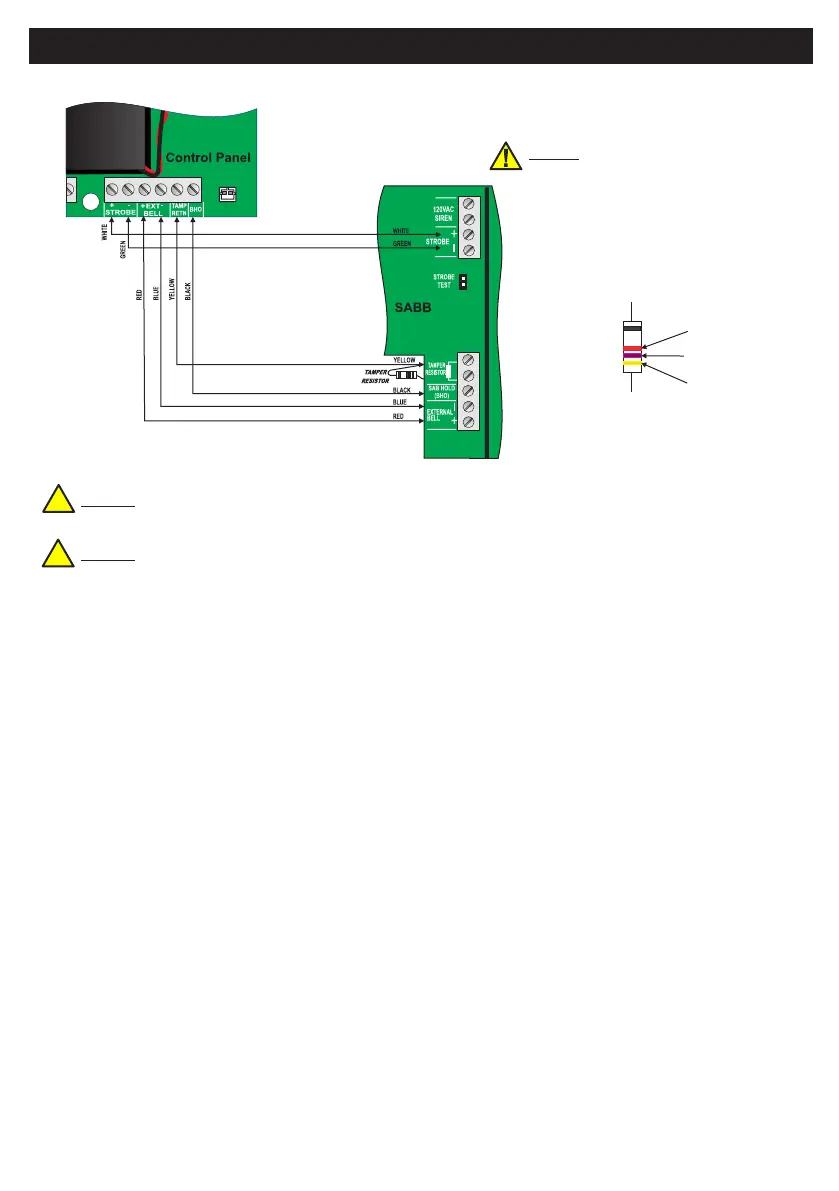

Quantum 70 Control Panel/SABB Connections
NOTE:
In order to conform with EN 50131
please ensure that the tamper resistor is
located in the SABB housing.
Note 1: Please refer to your SABB manual for more installation instructions.
Note 2: The panel’s back-up battery is limited to 2,400mAh so it is not recommended to have 2
wired SABB’s
Yellow
Violet
Red
Tamper Resistor is
4K7.
!
!
Default Eng. Code - 4567 Default User Code - 1111 (Irl) 1234 (UK)
