Turn the ballast a quarter turn and lower the ballast by sliding the
boom in slightly; make sure the ballast does not come into contact
with the machine or the outriggers (see figure 102). Make sure the
bow shackle on the ballast cable in the rear of the boom does not
go over the cable sheave (see figure 103).

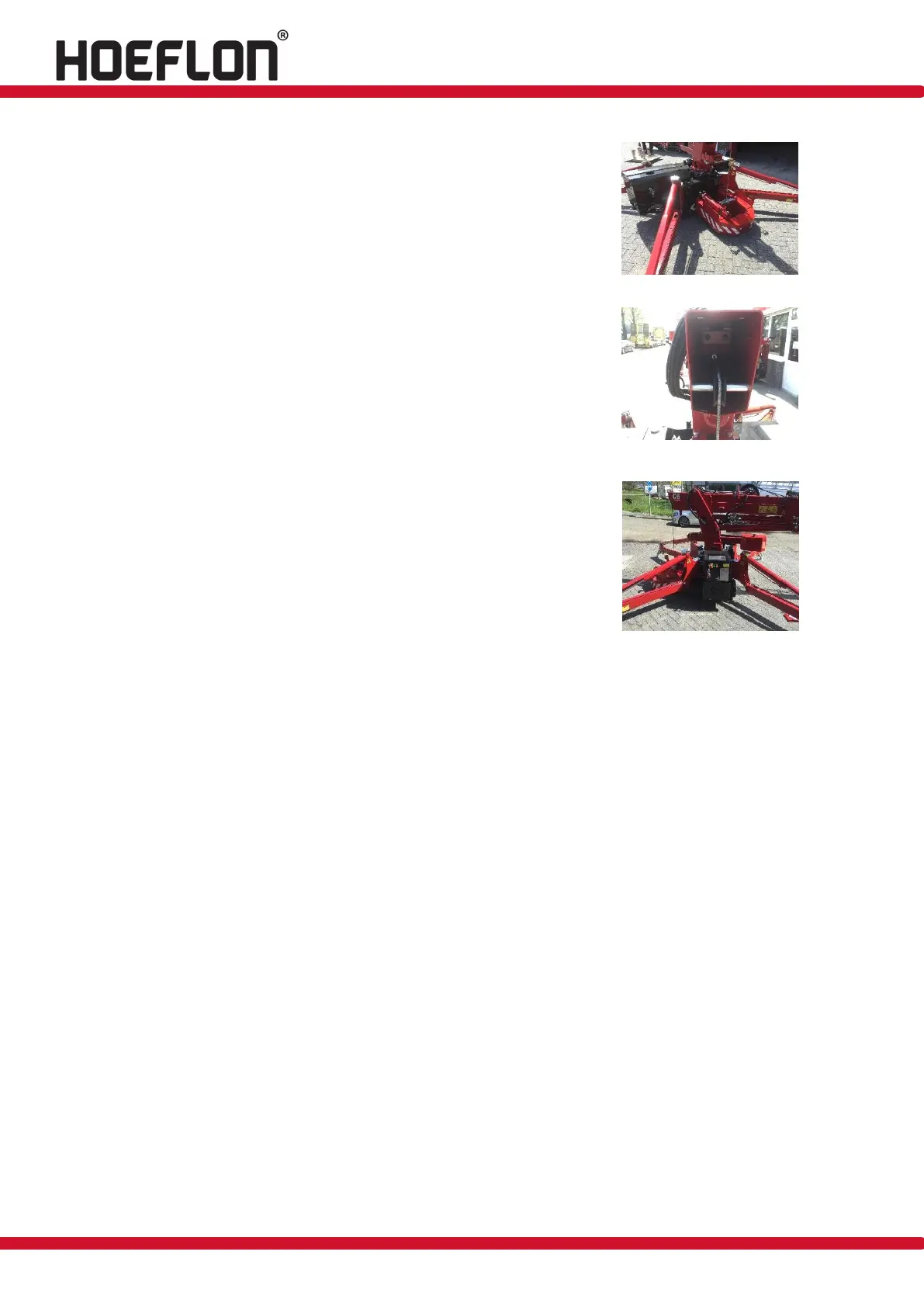

Figure: 102
Figure: 103
Take off the ballast removal cable and fit the rear boom cover (see
figure 104).
Store the ballast retainer with the corresponding bolts and the
ballast removal cable with bow shackle and the tools in a safe
place, such as the toolbox on the machine.
The machine can now be positioned in the transport mode and
driven off of the ballast.
Figure: 104
Check
Check whether the ballast has disappeared from the display on the remote control.
Check whether the ballast is in a safe position, move if necessary and/or cordon off the area
around the ballast to prevent accidents.
