HollySys LK Series User Manual

Chapter 5 Master Control Unit
Beijing HollySys Intelligent Technologies Co., Ltd. All Rights Reserved 93
5.4.2.2 Module Size

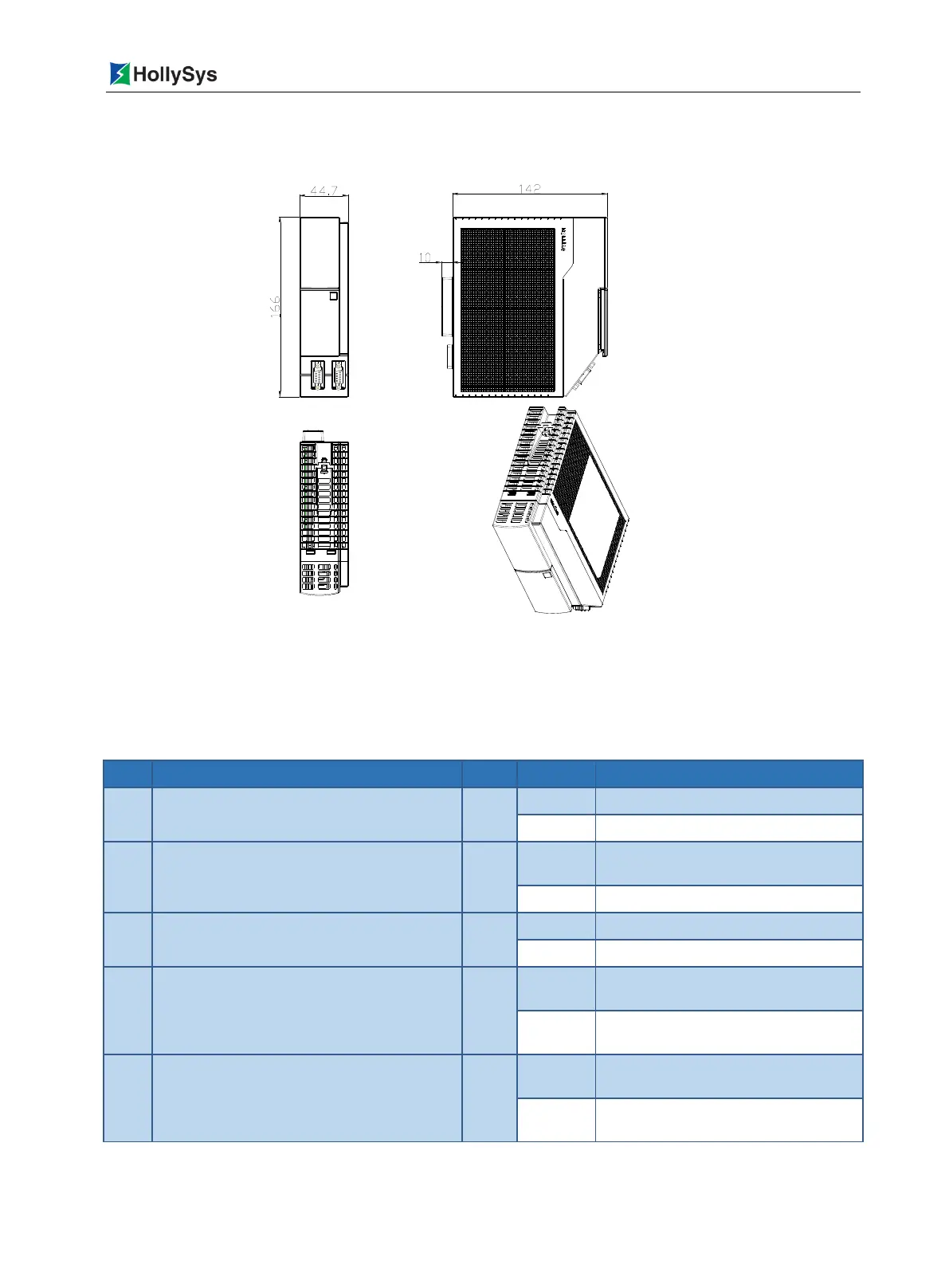

Figure 5-19 LK249 Module Size
5.4.3 Status Indication
Table 5-7 Instructions to Status Indicator
Name
Function
Colour
Status
Description
PWR
Indication of power supply
Yellow
On
The power supply works regularly.
Off
The power fails/not powered on
RUN
Indication of operating pattern
Green
Slow
flashing
The module is working properly.
On/Off
The module fails.
ERR
Indication of module failure
Red
On
The module appearance fails.
Off
The module is free of failures.
DP1
Indication of data sending/receiving via DP
Communication Interface 1
Green
Slow
flashing
DP Communication Interface 1 is
sending/receiving data
On/Off
DP Communication Interface 1 does not
send/receive data
DP2
Indication of data sending/receiving via DP
Communication Interface 2
Green
Slow
flashing
DP Communication Interface 2 is
sending/receiving data
On/Off
DP Communication Interface 2 does not
send/receive data
 Slow flashing: with a frequency of 1Hz
