HollySys LK Series User Manual

Chapter 7 IO Module
Beijing HollySys Intelligent Technologies Co., Ltd. All Rights Reserved 265

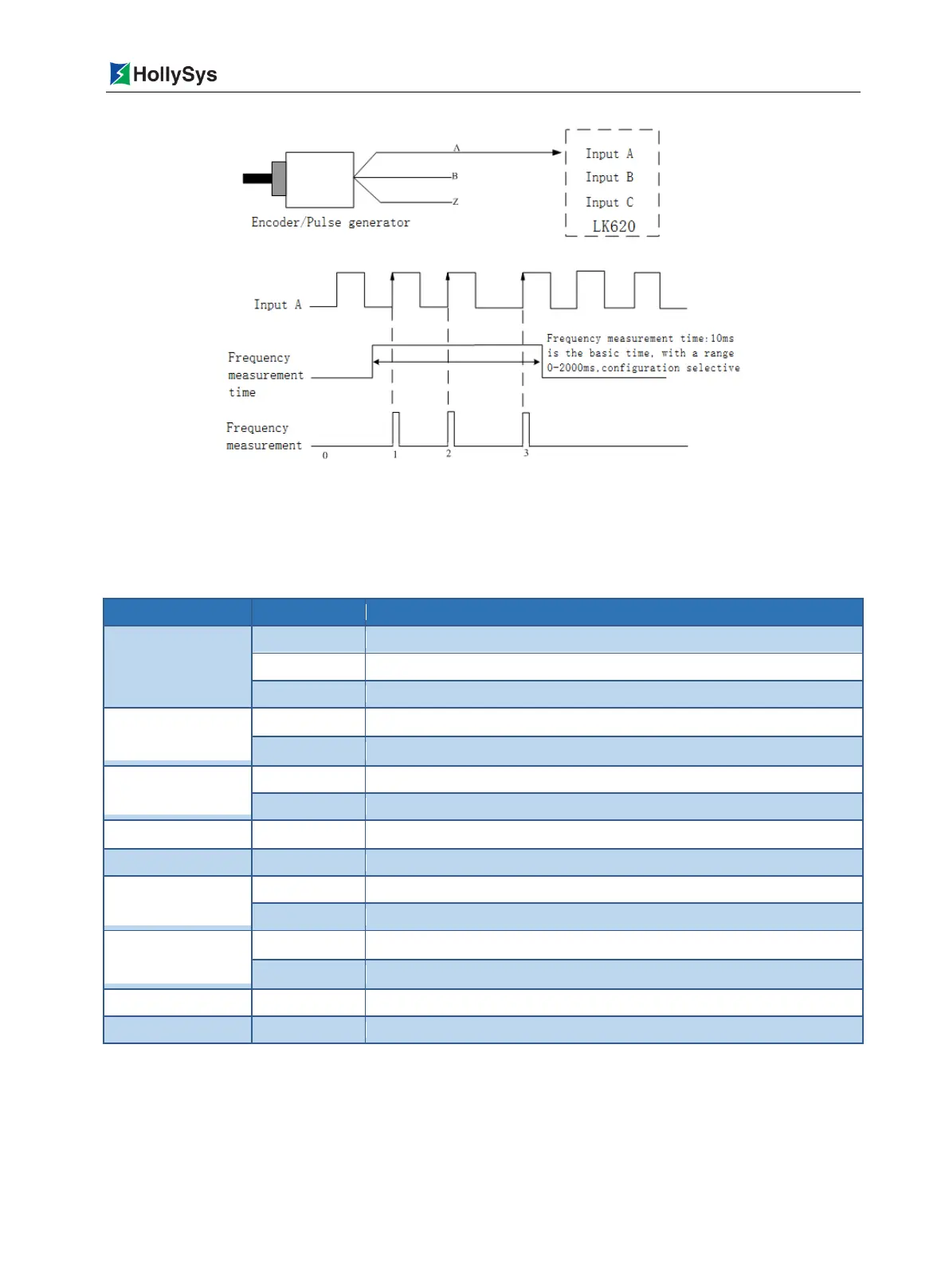

Figure 7-58 Frequency Measurement Mode of the Counting Module
7.8.4 Status Indicator
Table 7-63 LK620 Indicators Definition
Type
Status
Description
RUN
On
The module is working normally
Flash
Communication is not established
Off
No powered on or module fault
CH1.1
On
The first output channel of counter 1 is cloesd
Off
The first output channel of counter 1 is disconnected
CH1.2
On
The second output channel of counter 1 is cloesd
Off
The second output channel of counter 1 is disconnected
CNT1
On
Counter 1 works in counter mode
Freq1
On
Counter 1 works in frequency measurement mode
CH2.1
On
The first output channel of counter 2 is cloesd
Off
The first output channel of counter 2 is disconnected
CH2.2
On
The second output channel of counter 2 is cloesd
Off
The second output channel of counter 2 is disconnected
CNT2
On
Counter 2 works in counter mode
Freq2
On
Counter 2 works in frequency measurement mode
Details of RUN Green indicator is as follows:
 When powered on, the green indicator flashes to wait for the initialization data, the flashing
frequency is 4 times / s.
 After initialization, the green indicator is on, which indicates that the module is running normally. If
the initialization data is incorrect, the communication cannot be established and the green
