HollySys LK Series User Manual

Chapter 7 IO Module
Beijing HollySys Intelligent Technologies Co., Ltd. All Rights Reserved 187
LK710 16-channelSource Type Digital Output Module
Protection Key
E0
Installation
Extension backboard
Module Dimension (W*H*D)
35 mm×100 mm×100 mm
Enclosure Protection Rating
IEC60529 IP20
Weight
200 g
7.3 LK410 8-Channel Voltage Type Analog
Input Module
7.3.1 Basic Features
 8-channel voltage inputs
 Applicable range:10V / 0~10V / 0~5V
 Max. measurable range:10.25V / 0~10.25V / 0~5.125V
 Over-limit alarm
 Over range alarm
 Line broken detection
 Support PROFIBUS-DP slave station protocol
 Isolation between the system and the field channel
 Field calibration function
 Hot swapping
7.3.2 Operating Principle

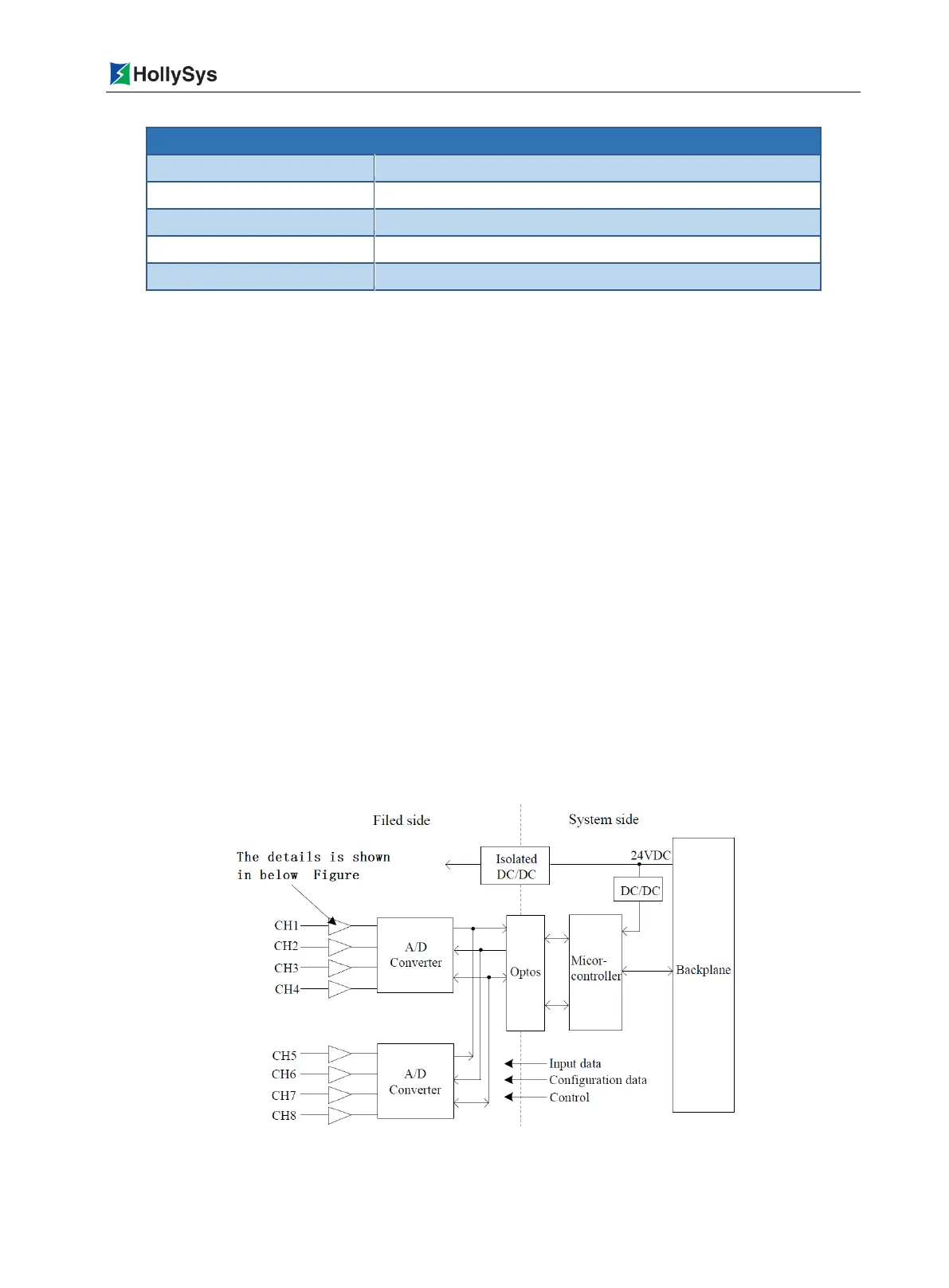

Figure 7-14 LK410 Input Circuit Block Diagram
