Chapter 8 Accessory
Beijing HollySys Intelligent Technologies Co., Ltd. All Rights Reserved 315
8.3 LKA103 LK220 Capacitance Power Box
Module
LKA103 provides the backup battery for RTC of the LK220 module.
When LK220 is powered off, LKA103 supplies power to RTC via Springs A and C to keep RTC in the
standby mode. The max. voltage for capacitance charging is 5.0V and the capacity is 0.94F. It can
keep RTC in the standby mode for about 7 days when fully charged once.

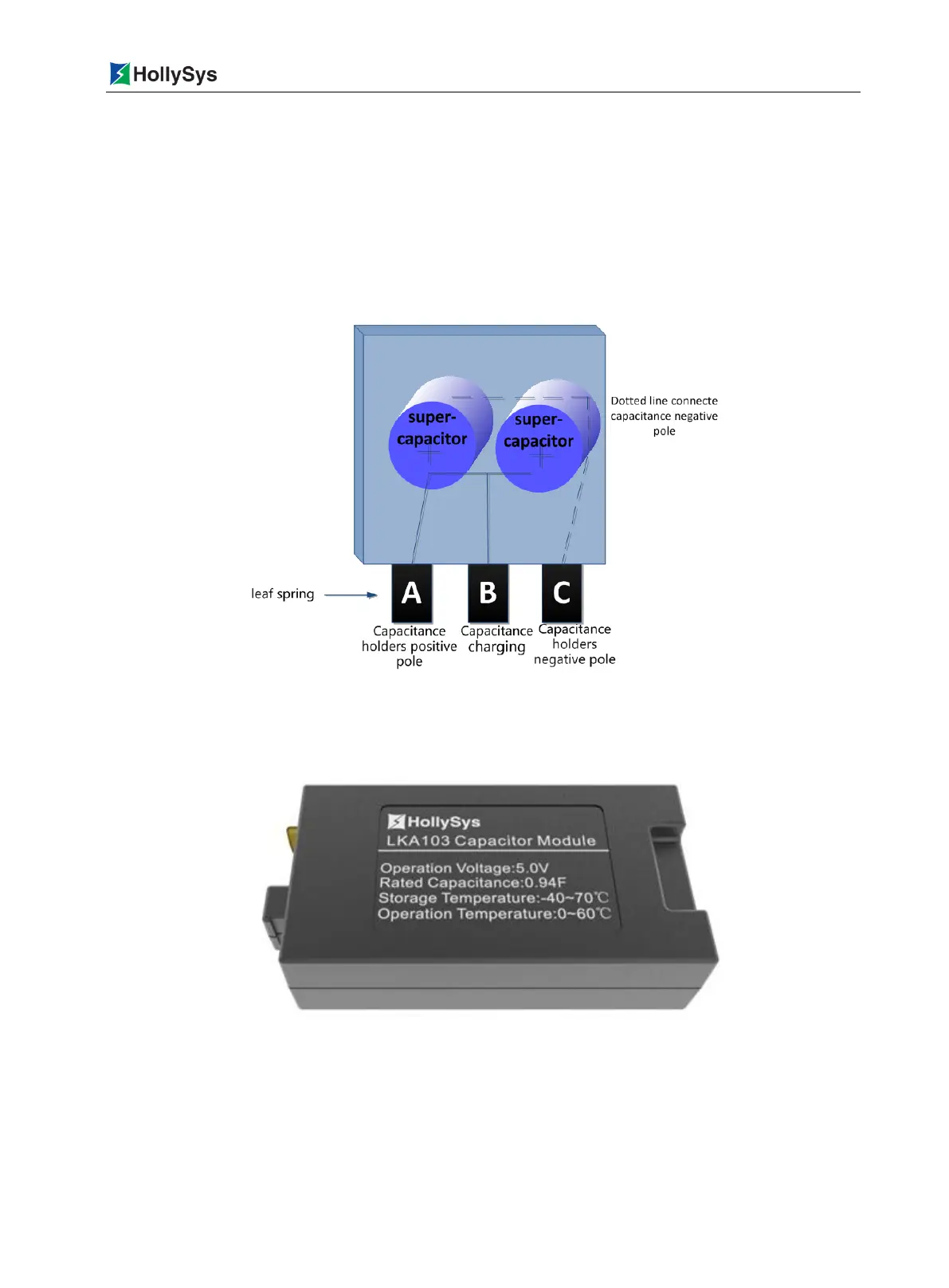

Figure 8-9 LKA103 Capacitance Power Box Schematic Diagram
8.3.1 Appearance
Figure 8-10 LKA103 Module Schematic Diagram
