Accenta/Optima Engineer’s Manual
10

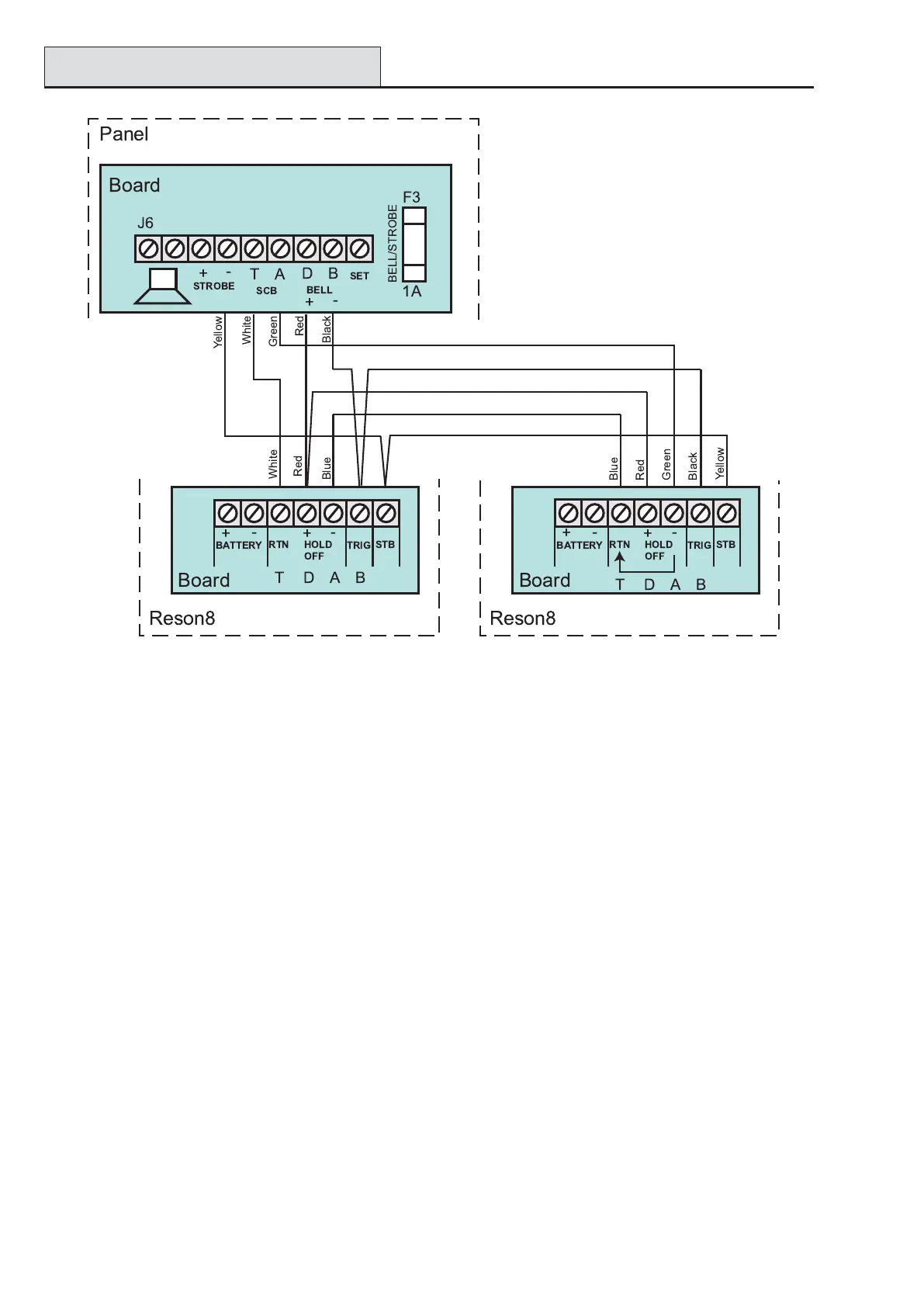

Figure 12. Twin External Bell-box Wiring
13V Supply Output
The 13V output is to power detectors which require a voltage supply (PIR detectors etc). The supply is
present at all times and may be used to supply a total load of 350mA.
Set
The output marked SET is used with latching detectors. The output becomes positive on correct Set of the
system and is removed by entry of a valid user code.
Bell Box (cont’d)
-

J6
+
TA

DB

+
-

1A
BELL/STROBE
F3
Panel
Board
-

+
TA
D
B

+
-
Board




Reson8
Yellow
White
Green
Red
Black
-

+
TA
D
B

+
-
Board




Reson8
Yellow
Green
Red
Black
Blue
Blue
White
Red

Honeywell Accenta Series Specifications

General

Zones	8
Power Supply	230V AC
Battery Backup	Yes
Tamper Protection	Yes
Communication Format	Contact ID, SIA
Communication	Wired
Compatible with	Honeywell detectors and accessories
Outputs	2
