Accenta/Optima Engineer’s Manual
5

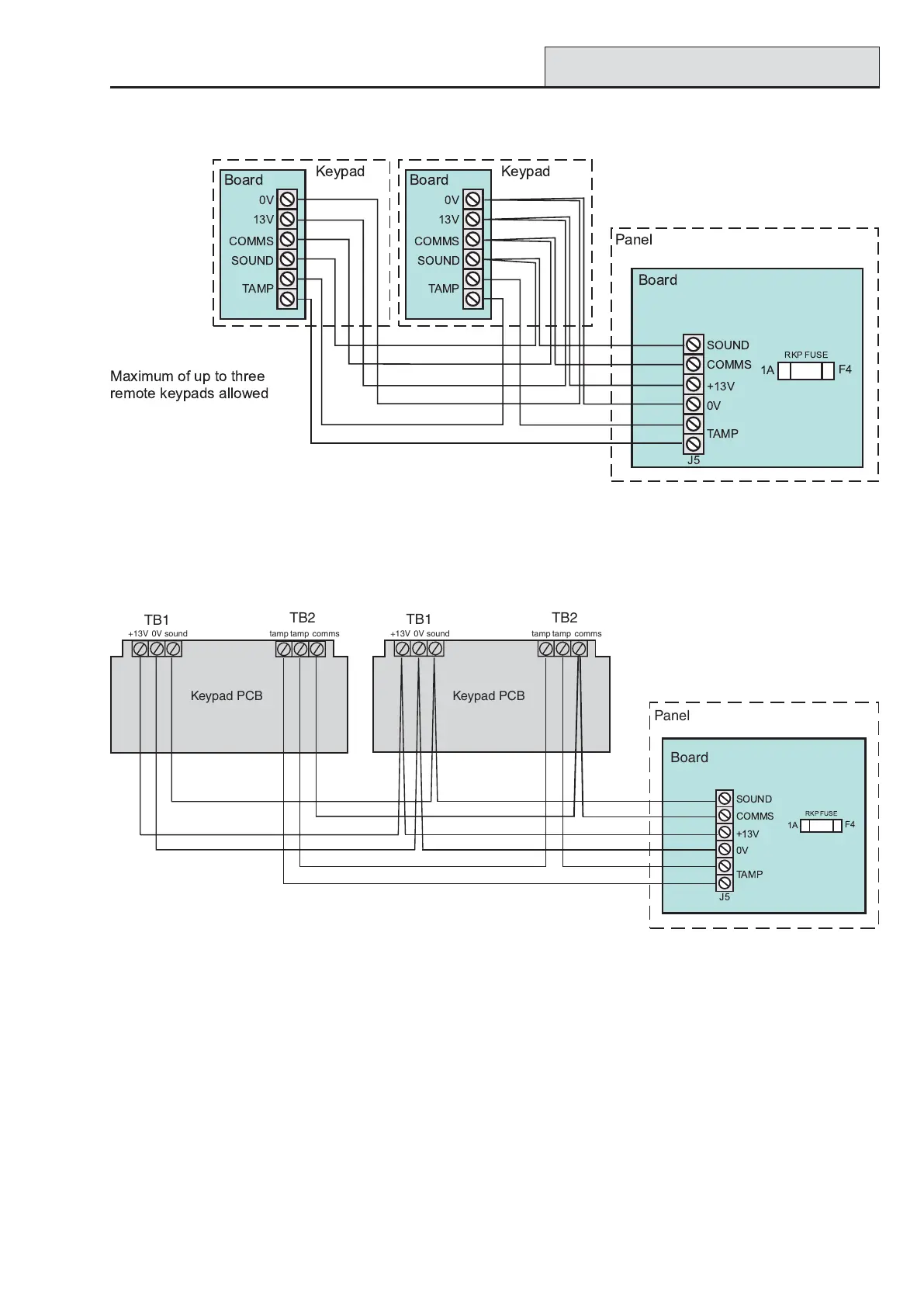

Figure 5. Connecting LED keypads to panel
Connecting Keypads
Connecting Remote Keypads
NOTE: Where an Accenta or Accenta mini panel is being installed, make sure there is at least one remote
keypad wired to the panel before the first power up.
Up to four remote Accenta LCD or LED keypads can be connected to the panel. Wire the keypad(s) as per
Figure 5 (LED keypad) or Figure 6 (LCD keypad).
NOTE: When the panel back-up battery is charging, the LCD keypad backlight may not operate.
Figure 6. Connecting LCD keypads to panel
!"#$# % $ & &'
#& () *
+13V
0V sound
TB1
comms
tamp
tamp
TB2
Keypad PCB
+13V
0V sound
TB1
comms
tamp
tamp
TB2
Keypad PCB
Board
Panel
