Honeywell Accenta Series User Manual

Accenta/Optima Engineer’s Manual
20
2 = Test Outputs
NOTE: These tests are not applicable to Optima compact panels.
This function tests all the outputs on the system.
The outputs are:1 = Fire, 2 = PA, 3 = Intruder, 4 = Set, 5 = Abort.
Pressing the [0] button turns all outputs to OFF.
Pressing the [SET] button toggles the selected alarm output.
Pressing the appropriate button [1-5] toggles the function ON or OFF.
Pressing the [RESET] button turns off all outputs and leaves the function.

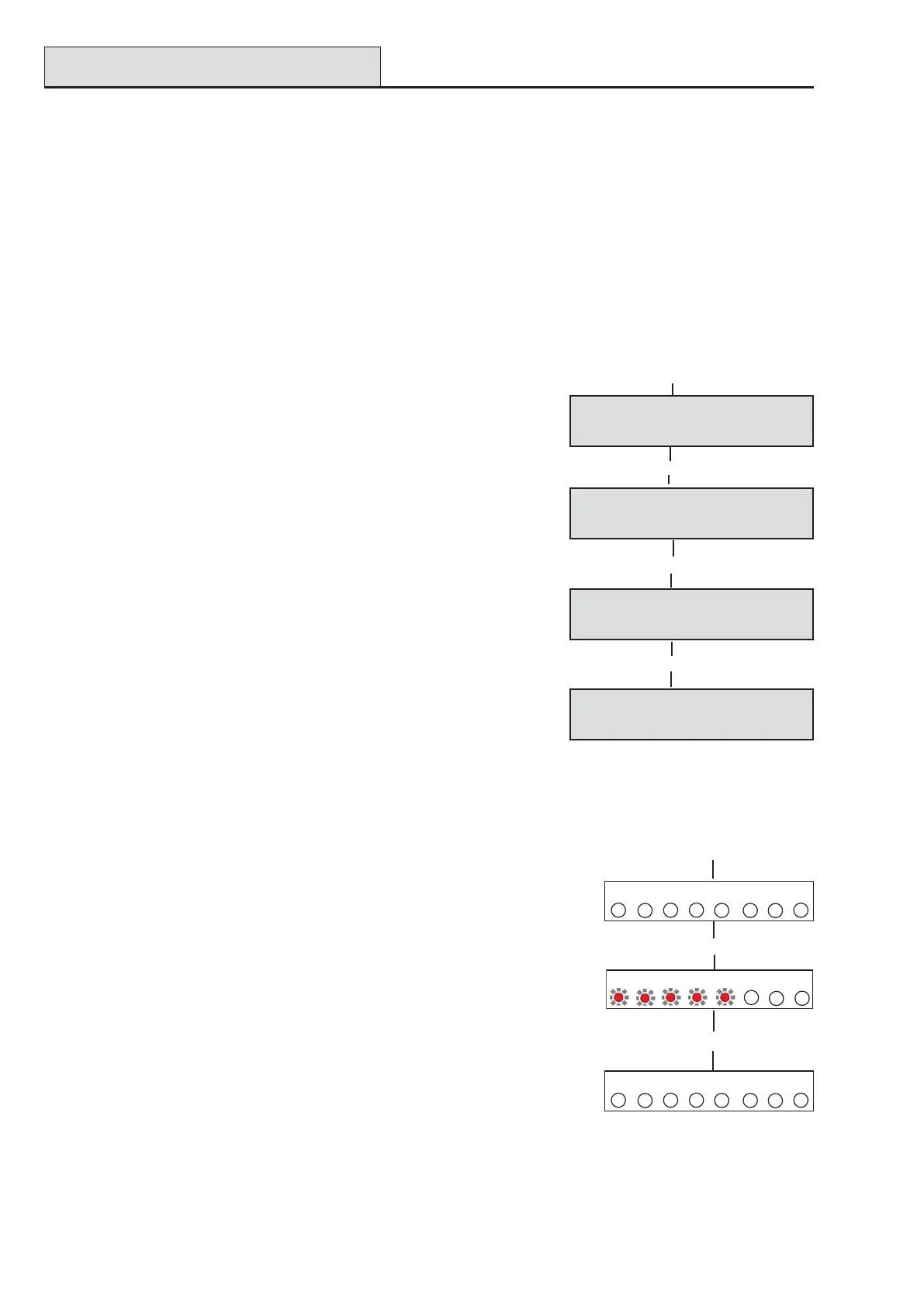

LCD keypad:
• Press [up arrow] for menu Test Outputs.
• Press [SET] or [2]. The first output is displayed.
• Press [Numbers] to display and toggle other outputs ON/OFF.
• Press [RESET] to leave the menu.
LED keypad:
The LED is lit when the output is ON.
• Press [2] for menu Test Outputs.
• Press [1-5] to display and toggle other outputs ON/OFF.
• Press [RESET] to leave the menu.
2>Test2>Test
2>Test2>Test
2>Test
Outputs Outputs
Outputs Outputs
Outputs
[up arrow]
[SET] or [2]
01:Fire01:Fire
01:Fire01:Fire
01:Fire
OFFOFF
OFFOFF
OFF
[Numbers]
02:PA02:PA
02:PA02:PA
02:PA
ONON
ONON
ON
[RESET]
2>Test2>Test
2>Test2>Test
2>Test
Outputs Outputs
Outputs Outputs
Outputs
Test Outputs
[2]
[RESET]
[1-5]
12
3
4
5
6
7
8
12
3
4
5
6
7
8
12
3
4
5
6
7
8

Honeywell Accenta Series Specifications

General

Zones	8
Power Supply	230V AC
Battery Backup	Yes
Tamper Protection	Yes
Communication Format	Contact ID, SIA
Communication	Wired
Compatible with	Honeywell detectors and accessories
Outputs	2
