EAGLEHAWK NX CONTROLLER BASIC OPERATION PROCEDURES
13 EN2Z-1053GE51 R0119
BASIC OPERATION PROCEDURES
NOTE: The controller screens shown in this user guide are examples and may
differ in details from the screens displayed on your EAGLEHAWK NX
controller.
Login / Entering PIN
In order to operate the controller, you must always login via pin. The pin is issued in
the CentraLine NX workbench and has at least 5 numerical characters (see
EAGLEHAWK NX HMI Driver user guide, form no. EN2Z-1052GE51).
Procedure

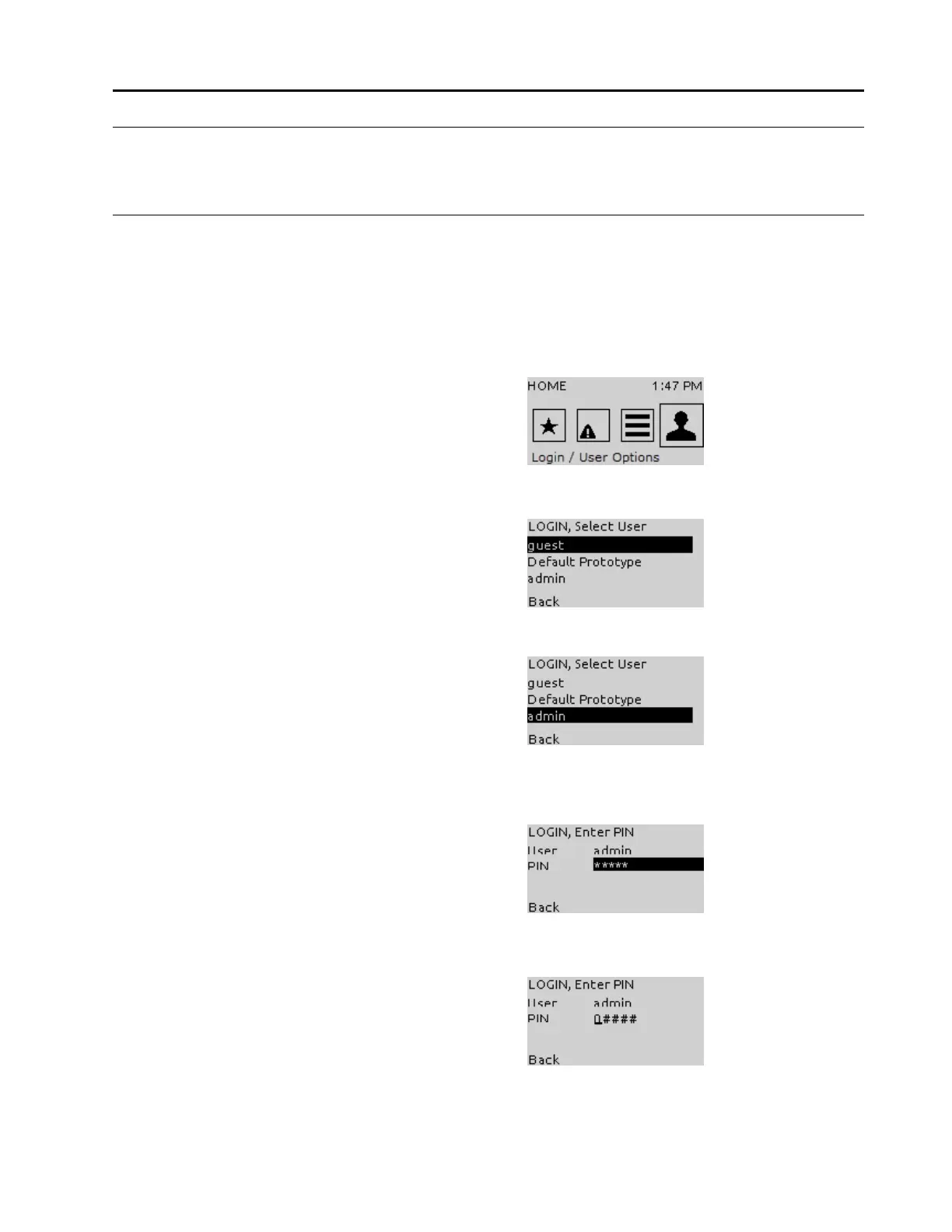

1. On any highlighted menu icon in the HOME screen, push the rotate&push
button.
The LOGIN, Select User menu displays.
2. Turn the rotate&push button to navigate to and highlight the user.
3. Push the rotate&push button.
The LOGIN, Enter PIN screen displays.
4. Push the rotate&push button. The PIN field is enabled and indicated by five
asterisks *****. At the first digit, the number 0 is flashing by default.
5. Adjust the first number of the pin by turning the rotate&push button.
