EAGLEHAWK NX CONTROLLER BASIC OPERATION PROCEDURES
9 EN2Z-1053GE51 R0119
Fig. 3. Option and value of datapoint

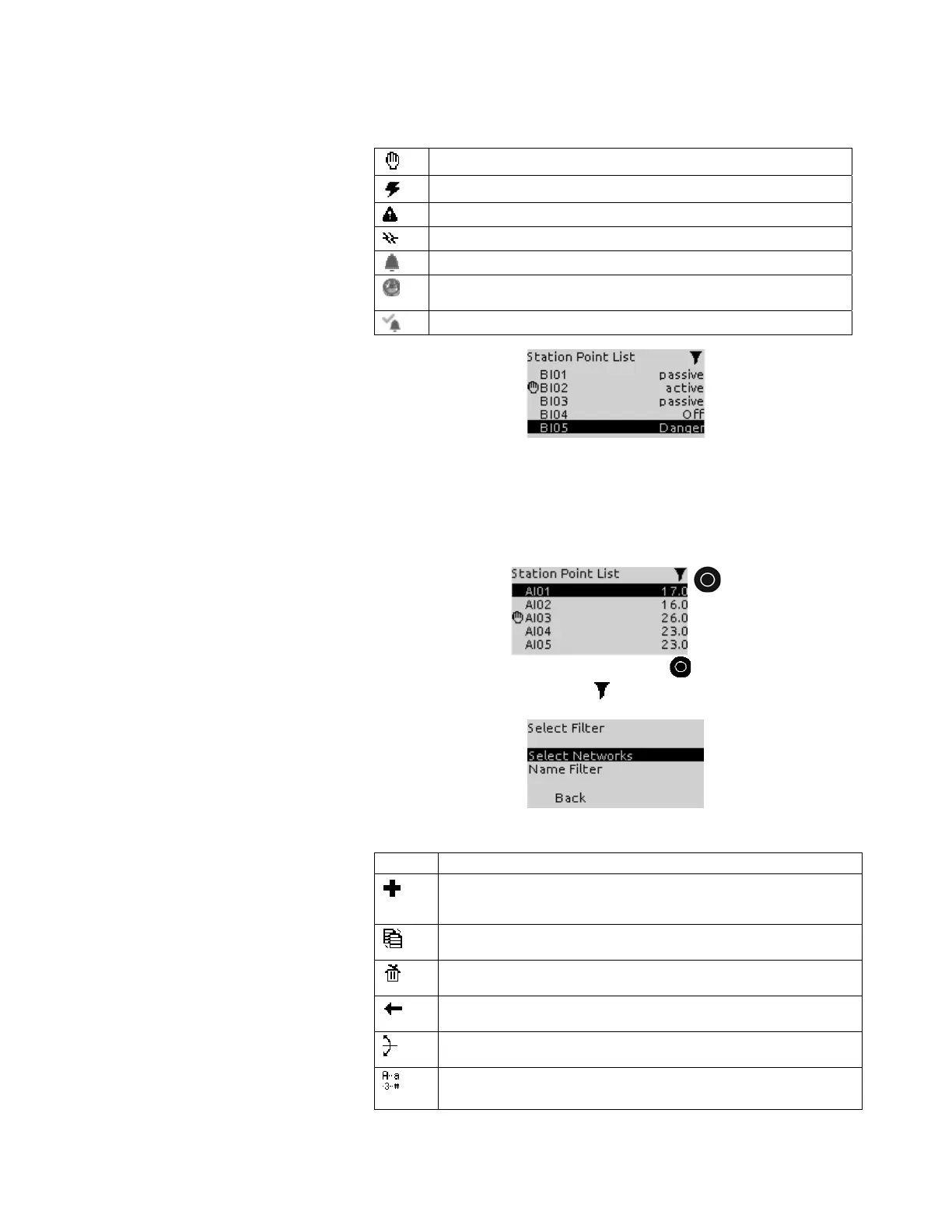

Status Indicators Depending on their current status, datapoints can show one of the following visual
status indicators:
Datapoint is in " Overridden status" (manual mode)
Datapoint is in "Out of Service status"
Datapoint is in "Alarm status"
Datapoint is in alarm status "fault"
Datapoint is in alarm status "normal" and alarm is not acknowledged
Datapoint is in alarm status "off-normal" and alarm is not
acknowledged
Datapoint is in alarm and alarm is acknowledged
Fig. 4. Status indicator (Manu) of binary datapoint
Command Symbols and Soft keys At certain spots in the operating sequence, special command symbols are available.
The corresponding commands are executed by pressing the corresponding
operating key (soft key) to the immediate right on the housing.
Example: Displaying filter function in the Station Point List.
Clicking on the topmost softkey
adjacent to the filter
command symbol
opens the Select Filter menu.
The following command symbols are available:
Symbol Function
Add
Item (datapoint, time program, etc.) can be added to a list, e.g., a
datapoint can be put to a list of trended datapoints
Copy
Item (datapoint, time program, etc.) can be copied
Delete
Item (datapoint, time program, etc.) can be deleted
Delete
Deletes a character
Toggle
Toggles between headline and character library
Scroll
Browses in the character library line by line
To Next Page
