CNI2
O
perating and Installation
Guide
124
D
EFINING THE CNI2
–
MANUAL MODE
Now that you’ve defined how DC
-
2009 will communicate with a CNI2 you must define the CNI2
itself. Information in DC
-
2009 must correlate with the configuration of the CNI2. The number of
data (pulse) inputs and the pulse
-
counting interval sizes must match exactly.
There are two methods that can be used. The one that will be discussed first allows you to
manually define each CNI2. Later we will describe how this can be done automatically each
time a new CNI2 calls in fo
r the first time.

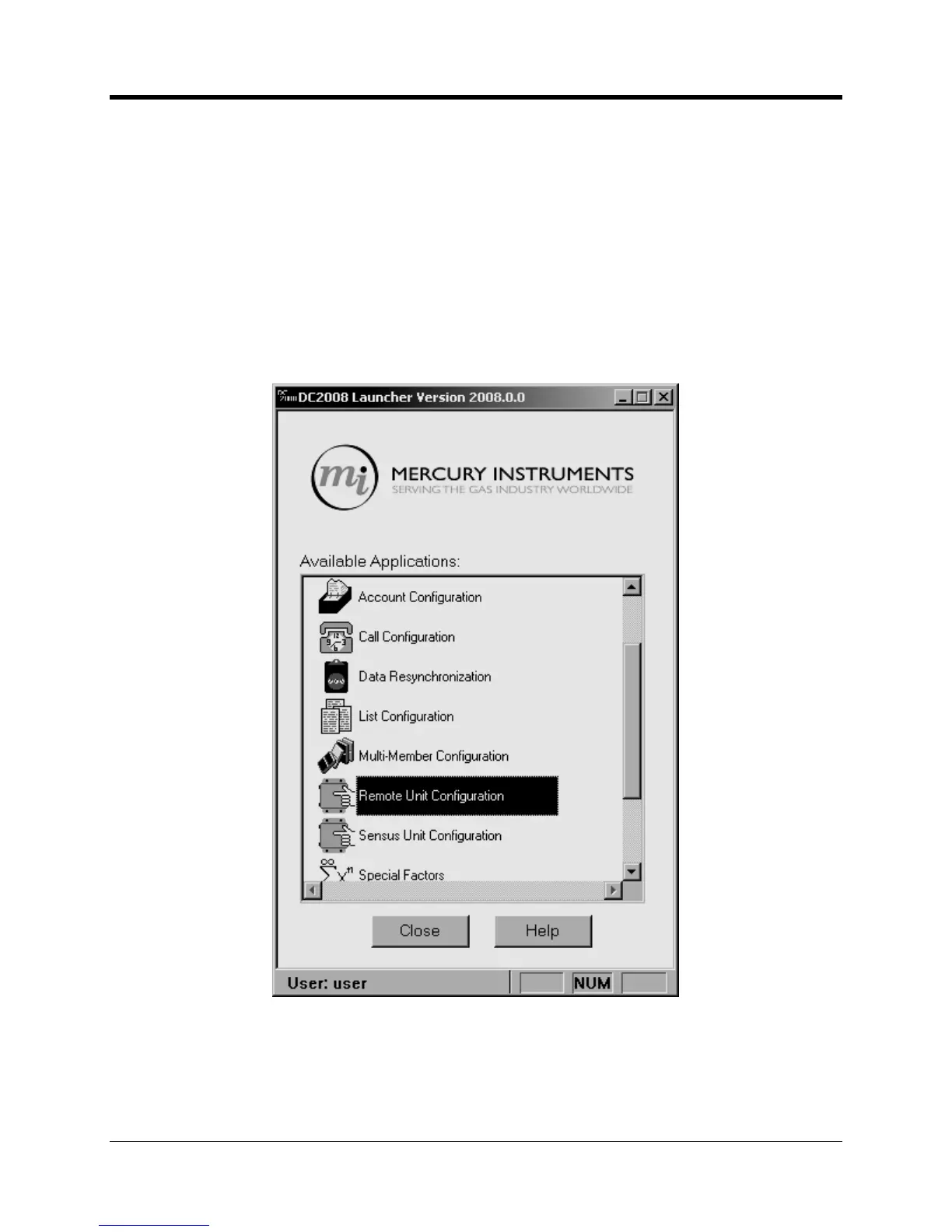

Start the DC
-
2009 Applications Launcher and select the ‘Remote Unit Configuration’ application
as shown next.
Starting the CNI2 Configuration Process
