MPA1 User Guide

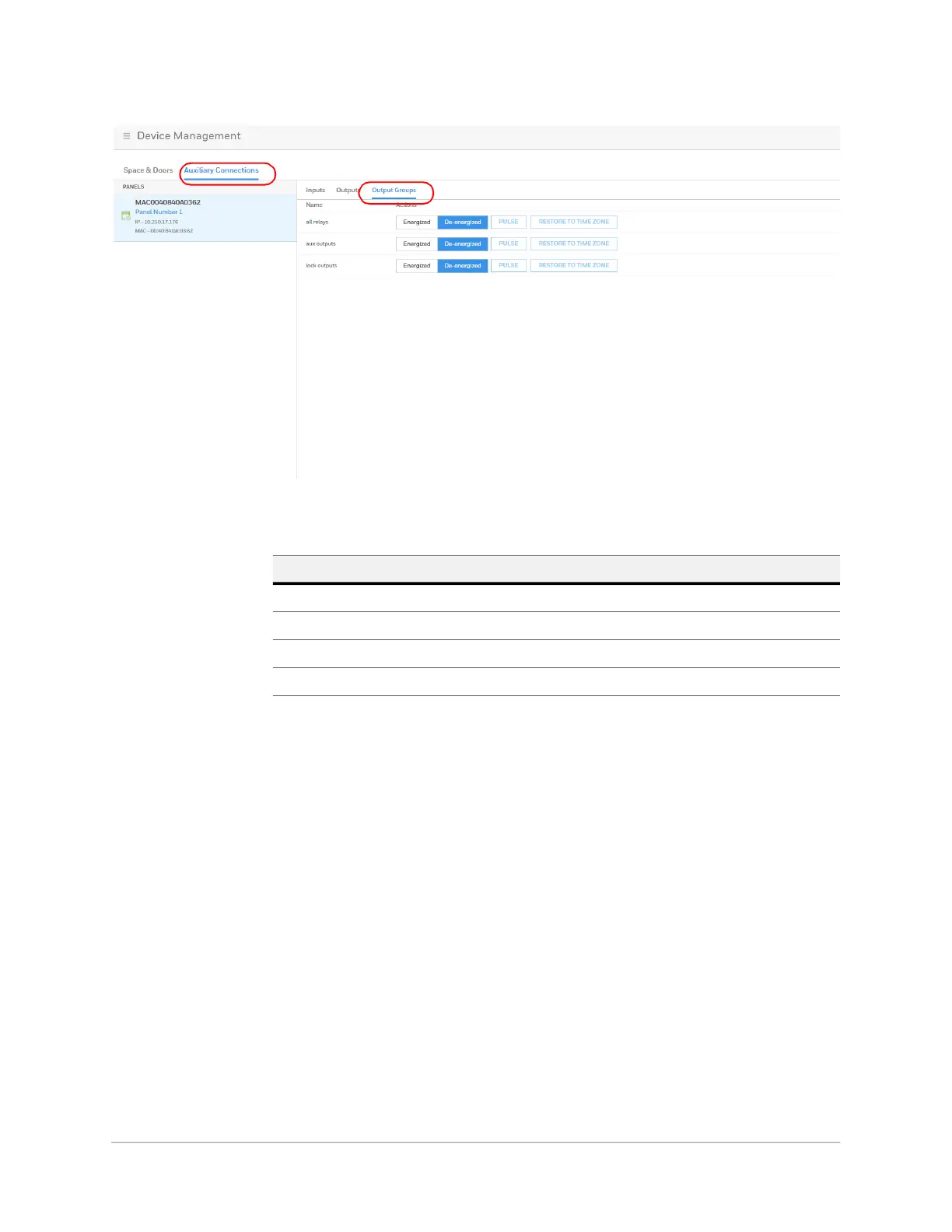

Figure 3-5 Device Management - Auxiliary Connections - Output Groups
Configuring Door Outputs
An Switched Ground or output relay, acts like a switch on the panel that either energizes or
de-energizes or pulses an output device, such as a door lock or an LED.
Switched Ground:
For direct control case of a Door Strike, the strike is connected to the DMU’s 12 VDC and
the Switched of external Door Strikes or Magnetic Locks, a Switched Ground is provided.
In the useGround. The DMU can be configured in software as Normally Closed (Switched
Ground is nominally closed) or Normally Open (Switched Ground is nominally open).
The Outputs tab allows you to configure the following settings:
• Output Name
• Pulse time
• Latch and Interlock (enable/disable)
• Scheduling
• TZ Card Toggle
• First Card Rule
Table 3-3 Output Groups Management Settings
Field Description
Energized Click to energize an output for an indefinite period of time.
De-energized Click to de-energize an output for an indefinite period of time
Pulse Click to pulse an output for the configured period of time.
Restore to Time Zone Click to reset the output to follow its configured time zone.
