Digital Communicator Installation
2.8 Digital Communicator
Two independent telephone lines can be connected to the control panel. Telephone line
control/command is made possible via double line seizure as well as usage of an RJ31X style
interconnection. Note that it is critical that the panel's digital communicator be located as the first
device on the incoming telephone circuit to properly function.
Important! The DACT must not be used to dial a phone number that is call-forwarded per
requirements of UL 864 9th Edition.
The control panel's digital communicator is built into the main circuit board. Connection and
wiring of two phone lines is required as shown below.

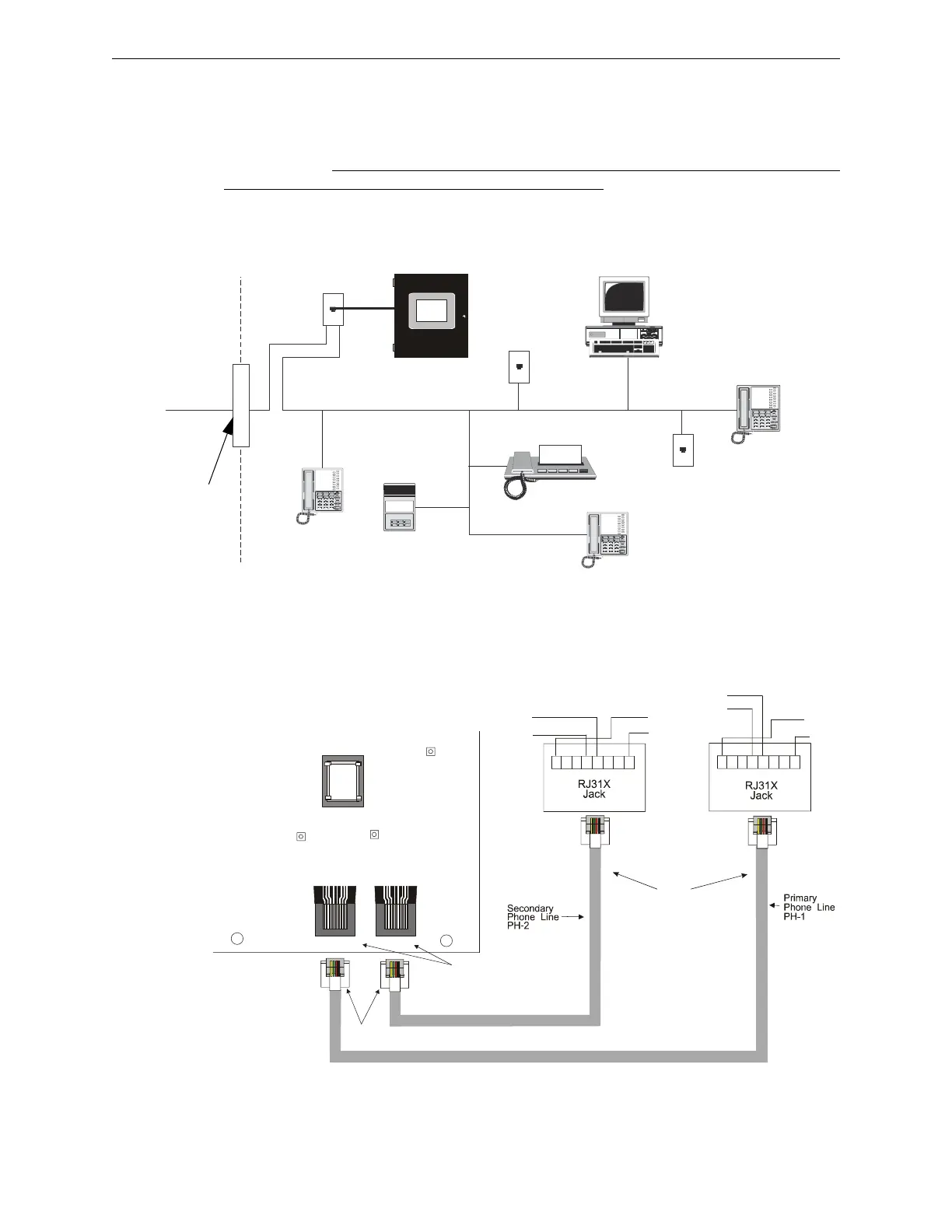

Figure 2.12 DACT Installation
Customer Premises Equipment and Wiring
Telephone
Line
FACP with DACT
Network
Service
Provider’s
Facilities
Network
Demarcation
Point
RJ31X
Jack
Unused
RJ-11 Jack
Unused
RJ-11 Jack
Telephone
Telephone
Answering
System
Fax Machine
Computer
nfw2dact.cdr
Telephone
Modular Female
Connectors
Male Plug
Connectors
7 foot
Cable
MCBL-7
(ordered
separately)
Note:Shorting bars
inside RJ31X Jack
removed during
male plug insertion
1
2
3
4
567
7
8
1
2
3
4
56 8
Tip
Tip
Ring
Ring
Green Wire
Green Wire
To premise phones
To premise phones
Red Wire
Red Wire
Ring
Ring
(Primary Lines)
Incoming Telco
Phone Lines
(Secondary Lines)
Incoming Telco
Phone Lines
Tip
Tip
KISSOFF
PRI. ACTIVE
SEC. ACTIVE
SEC. PHONE LINE
PRI. PHONE LINE
J13 J12
Figure 2.13 Wiring Phone Jacks
