Honeywell PC42d User Manual

Appendix C: Using INPrint to print label
User Instructions for PC42d Desktop Printer 53
About INPrint page
If Direct Protocol language is used on the printer, the INPrint page will provide template
web form to enable the user to print individual labels in a convenient manner, as well as
input information in the label’s field.
The printer firmware contains numerous pre-defined label formats. The user can also
duplicate its own label format and carry out printing using the web page.

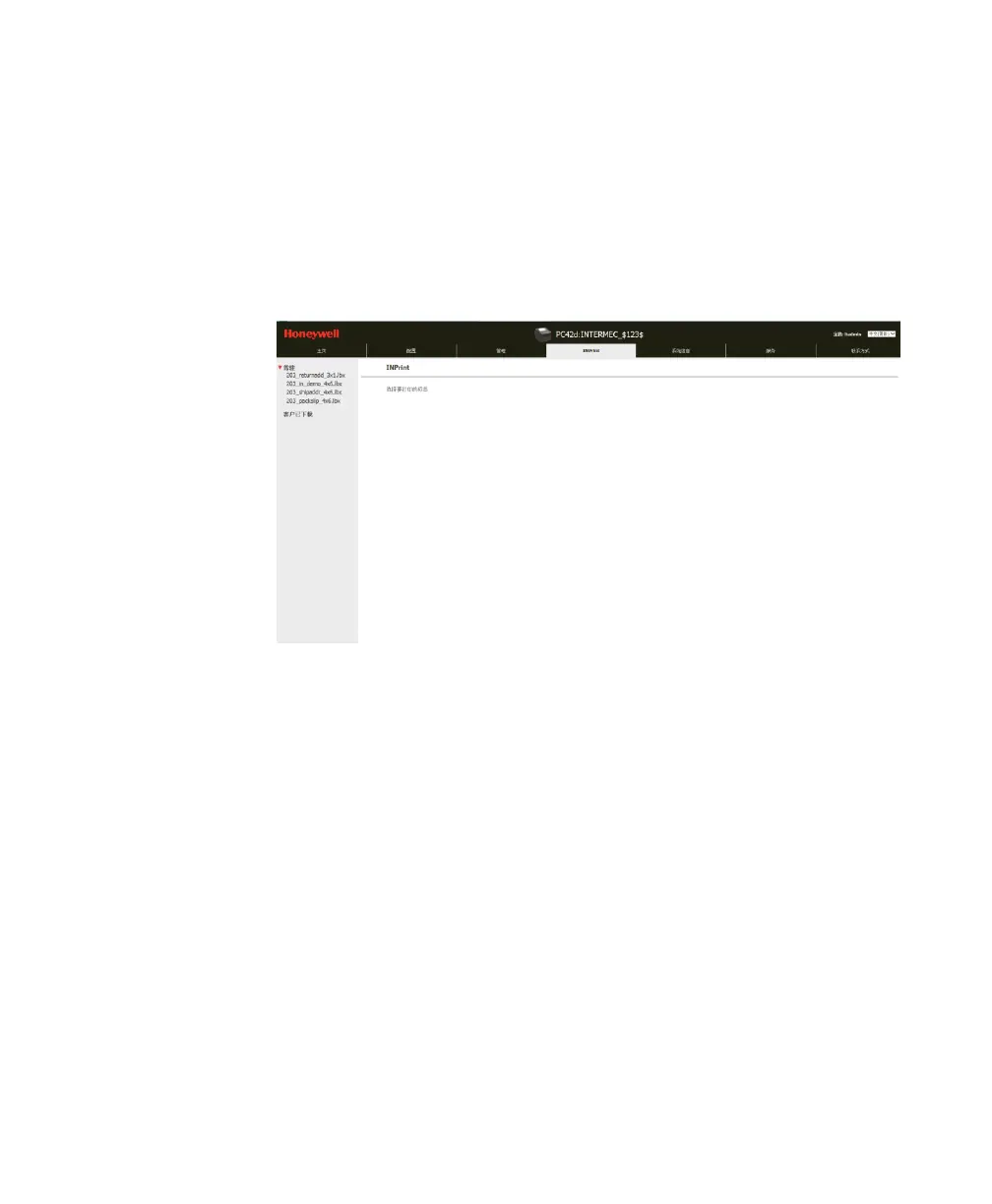

PC42d INPrint web page
Printing INPrint label
If the printer is already connected to Ethernet, the user can enter information through
the Web forms in order to print label. The Web forms can be accessed through the
printer Web page.
1. Launch a browser on desktop PC;
2. Key in the printer’s IP address at the address toolbar and press ‘Enter’. The
printer's portal will be displayed;
3. Click ‘Login’ to launch the 'Login' page;
4. Enter ‘Username’ and ‘Password’, then click 'Login’ again. The default user
name is ‘itadmin’ and default password is 'pass’;
5. Click ‘INPrint’.

Honeywell PC42d Specifications

General

Color	No
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	104 mm
Display	-
Product color	Black
Ethernet LAN	Yes
USB 2.0 ports quantity	1
Flash memory	128 MB
Internal memory	64 MB
Built-in barcodes	1D, 2D, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code
Core diameter	38.1 mm
Maximum label width	110 mm
Maximum label length	0.99 m
Maximum roll diameter	128 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	15 - 80 %

Weight and Dimensions

Depth	174 mm
Width	184 mm
Height	222.5 mm
Weight	1500 g
